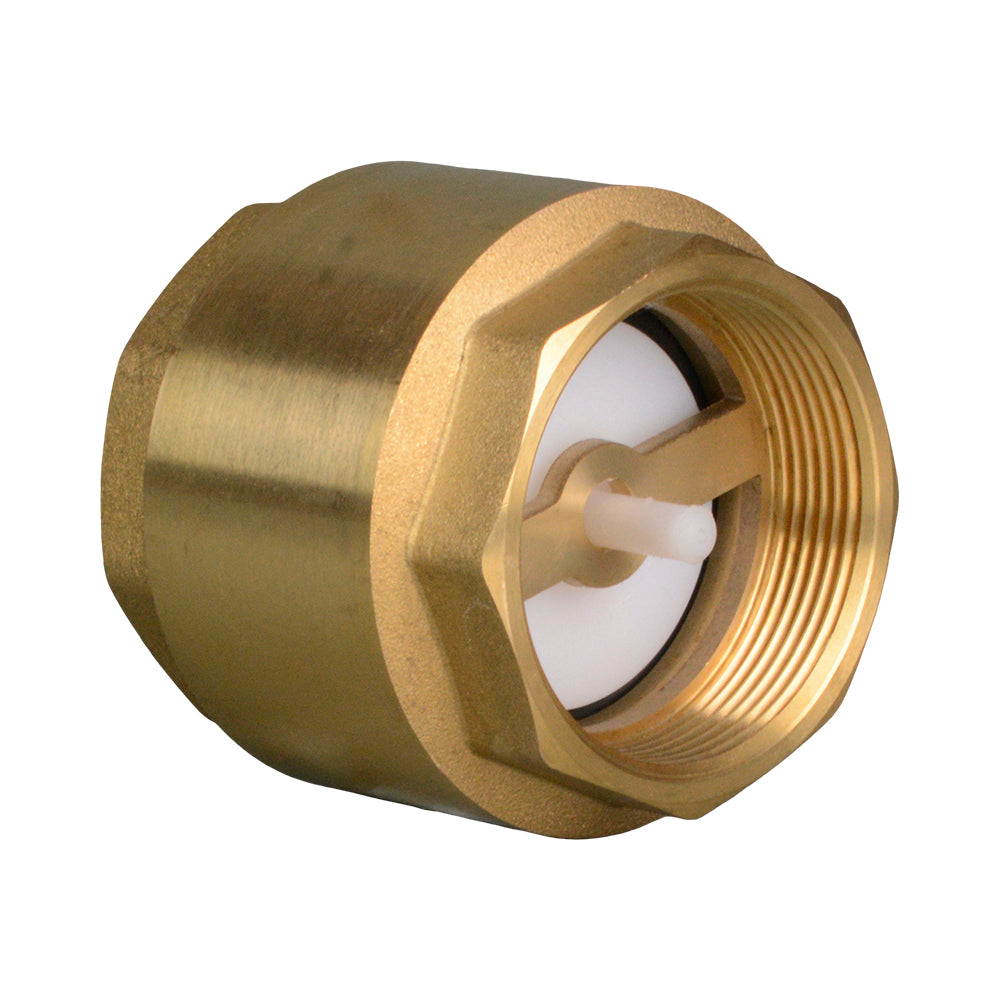

Brass inline spring check valve showing the female threaded end and internal valve disc.
Brass inline spring check valve showing the female threaded end and internal valve disc.

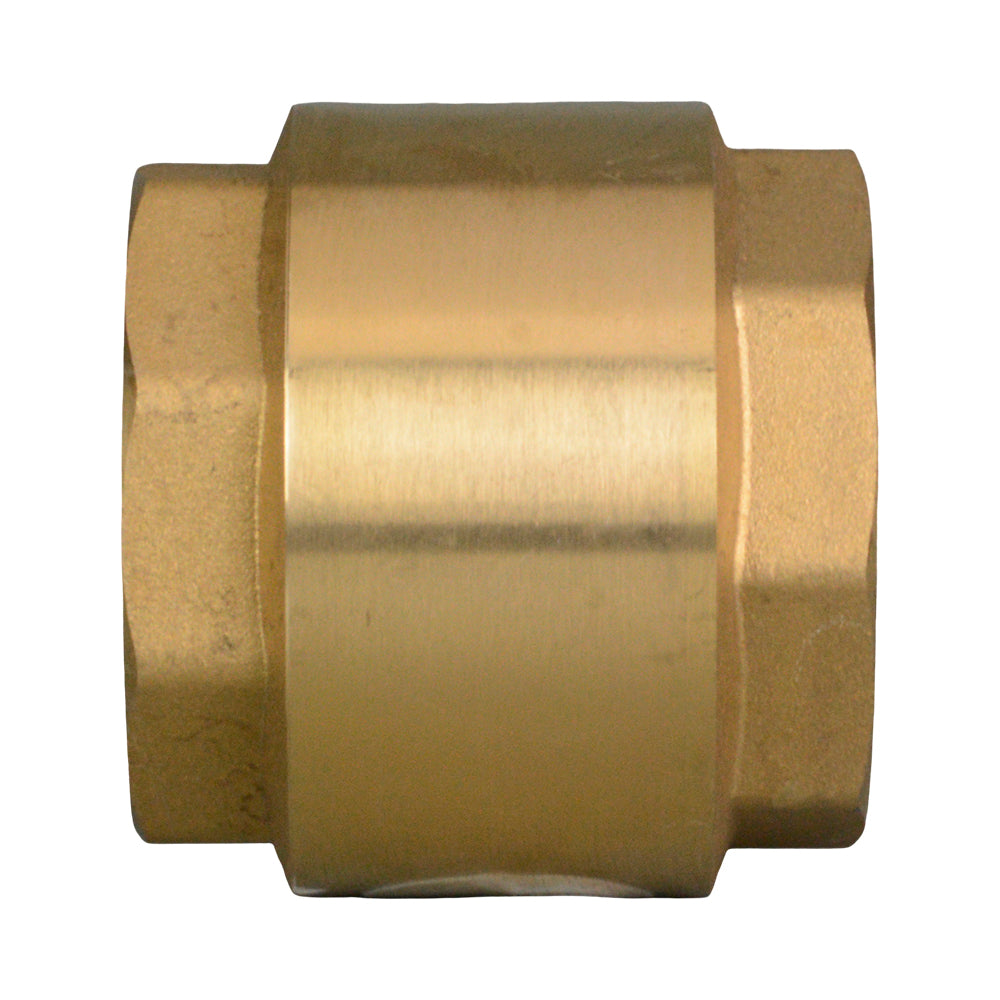

Brass inline spring check valve with hexagonal ends, side view.
Brass inline spring check valve with hexagonal ends, side view.

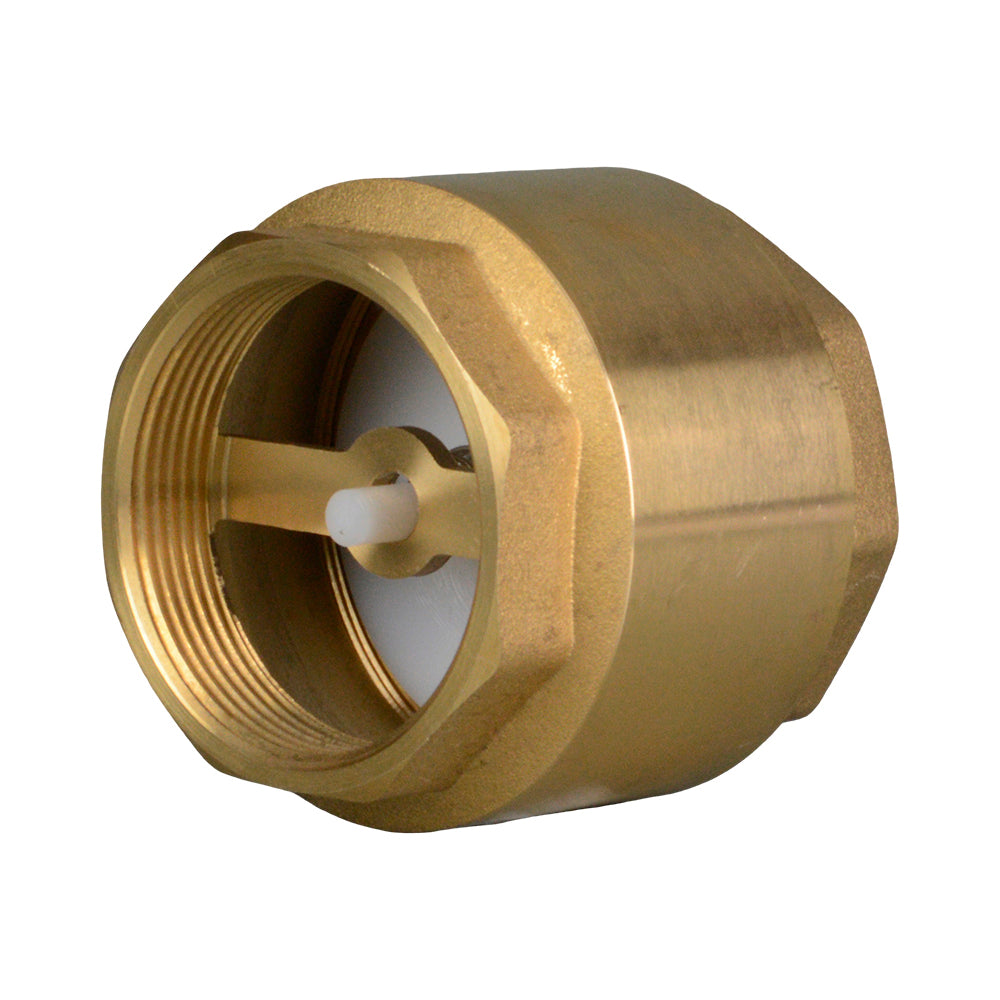

Brass inline spring check valve showing the opposite female threaded opening.
Brass inline spring check valve showing the opposite female threaded opening.
Brass inline spring check valve showing the female threaded end and internal valve disc.
Brass inline spring check valve with hexagonal ends, side view.
Brass inline spring check valve showing the opposite female threaded opening.

BRASS SPRING CHECK VALVES - THREADED

Brass inline spring check valves allow water to travel in one direction and close automatically against reverse flow. A spring returns the internal valve to its seat when forward flow stops, helping retain water in the line. Female threaded connections in 15mm-100mm sizes provide compact non-return connections for water pipework.

✓ Sizes: 15mm-100mm
✓ Pressure Rating: 1600kPa
✓ Spring-loaded non-return operation
✓ Horizontal or vertical installation

Brass Inline Spring Check Valve Specifications

More Information
Product Specifications
Brass inline spring check valve showing the female threaded end and internal valve disc.
BRASS SPRING CHECK VALVES - THREADED
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 15 mm VVBSC015
$7.23 /each
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 20 mm VVBSC020
$9.05 /each
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 25 mm VVBSC025
$11.50 /each
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 32 mm VVBSC032
$18.13 /each
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 40 mm VVBSC040
$24.81 /each
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 50 mm VVBSC050
$33.90 /each
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 80 mm VVBSC080
$97.03 /each
Brass inline spring check valve showing the female threaded end and internal valve disc.
Valves Brass In-Line Spring Check 100 mm VVBSC100
$170.85 /each

Brass inline spring check valves allow water to travel in one direction and close automatically against reverse flow. A spring returns the internal valve to its seat when forward flow stops, helping retain water in the line. Female threaded connections in 15mm-100mm sizes provide compact non-return connections for water pipework.

The brass body houses a POM stem, stainless steel spring and NBR seal. The valve permits vertical and horizontal installation, allowing the valve position to suit the pipe layout.

Fit the valve with the flow arrow pointing in the intended direction of water travel. Keep the valve accessible for inspection and choose its size according to the required flow as well as connection size.

Female threaded connections; maximum pressure 1600kPa.

Brass Inline Spring Check Valve Specifications

✓ Product Type & Application
Brass inline spring check valves allow water to travel in one direction and close automatically against reverse flow. A spring returns the internal valve to its seat when forward flow stops, helping retain water in the line. Female threaded connections in 15mm-100mm sizes provide compact non-return connections for water pipework.

✓ Size & Connections
Female threaded connections

✓ Pressure & Temperature
Pressure: 1600kPa
Temperature: 1°C to 60°C

✓ Construction & Features
Brass body and cap; POM stem; stainless steel spring; NBR seal.

✓ Dimensions
Valves Brass In-Line Spring Check 15mm: Drawing dimensions: L 45mm; H 32mm; W 26mm
Valves Brass In-Line Spring Check 20mm: Drawing dimensions: L 50mm; H 41mm; W 31mm
Valves Brass In-Line Spring Check 25mm: Drawing dimensions: L 54mm; H 47mm; W 37mm
Valves Brass In-Line Spring Check 32mm: Drawing dimensions: L 57mm; H 57mm; W 46mm
Valves Brass In-Line Spring Check 40mm: Drawing dimensions: L 68mm; H 67mm; W 53mm
Valves Brass In-Line Spring Check 50mm: Drawing dimensions: L 72mm; H 79mm; W 66mm
Valves Brass In-Line Spring Check 80mm: Drawing dimensions: L 99mm; H 110mm; W 95mm
Valves Brass In-Line Spring Check 100mm: Drawing dimensions: L 112mm; H 142mm; W 122mm

✓ Operation & Installation
Fit the valve with the flow arrow pointing in the intended direction of water travel. Keep the valve accessible for inspection and choose its size according to the required flow as well as connection size.
