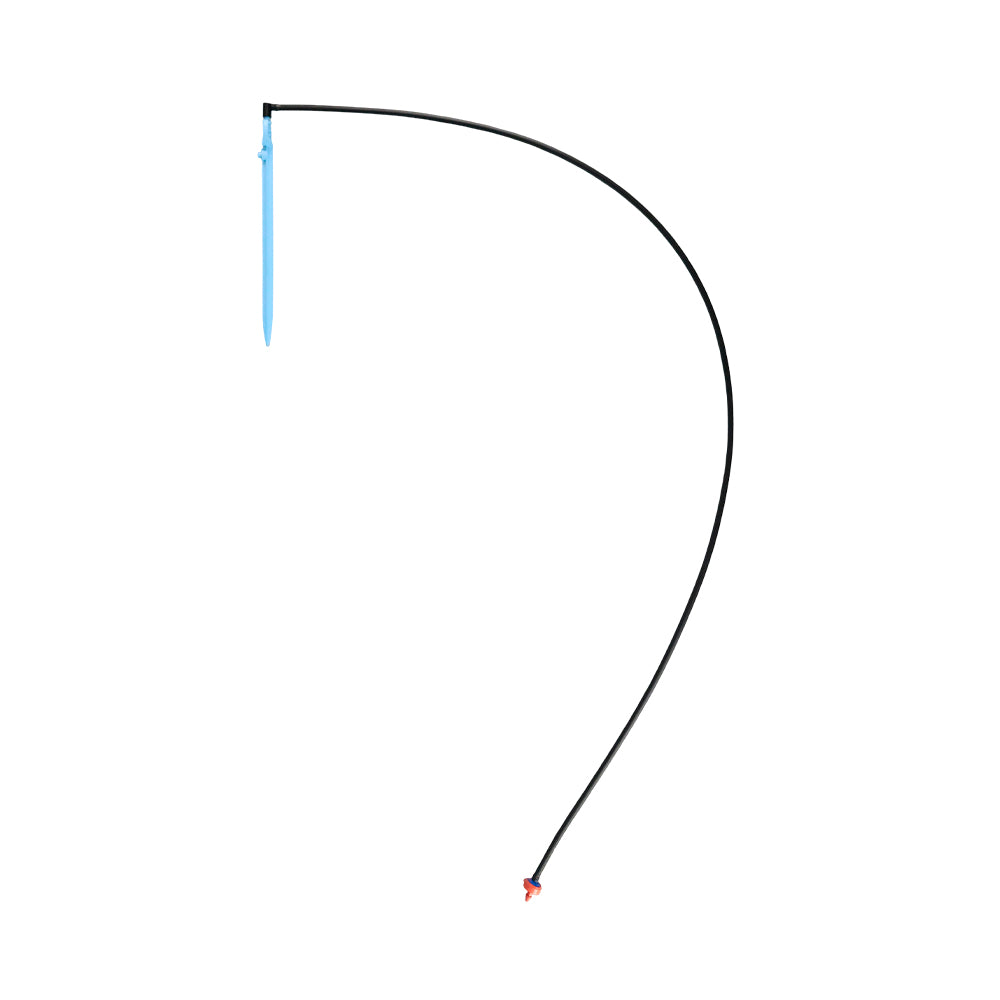

Micro Dripper Netafim PC Spray 40LPH Light Blue Stake Assembly with 100cm Tube
Micro Dripper Netafim PC Spray 40LPH Light Blue Stake Assembly with 100cm Tube

NETAFIM PC SPRAY STAKE ASSEMBLIES

Netafim PC Spray Stake assemblies direct water downwards into pots and nursery containers. The stake holds the outlet beside the plant, while a pressure-compensating dripper helps maintain consistent flow as inlet pressure changes.

✓ Spray patterns: Light grey two-sided; light blue two-sided
✓ Coverage: Average 0.22-0.25m radius on each sprayed side; varies with head height
✓ Flow: Light grey 20L/h; light blue 40L/h
✓ Working pressure: Light grey 150-400kPa; light blue 180-400kPa
✓ Supplied: Stake, dripper, elbow adaptor and 1m of 3mm ID x 5mm OD microtube

Netafim PC Spray Stake Assembly Specifications

More Information
Product Specifications
Micro Dripper Netafim PC Spray 40LPH Light Blue Stake Assembly with 100cm Tube
NETAFIM PC SPRAY STAKE ASSEMBLIES
Micro Dripper Netafim PC Spray 40LPH Light Blue Stake Assembly with 100cm Tube
Micro Dripper Netafim PC Spray 40LPH Light Blue Stake Assembly with 100cm Tube MDPCSA100TA40
$2.05 /each
Micro Dripper Netafim PC Spray 20LPH Grey Stake Assembly with 100cm Tube
Micro Dripper Netafim PC Spray 20LPH Grey Stake Assembly with 100cm Tube MDPCSA100TA20
$2.05 /each

Netafim PC Spray Stake assemblies direct water downwards into pots and nursery containers. The stake holds the outlet beside the plant, while a pressure-compensating dripper helps maintain consistent flow as inlet pressure changes.

The light grey 20L/h assembly sprays to two sides and operates at 150-400kPa. The light blue 40L/h assembly sprays to two sides and operates at 180-400kPa.

Average wetted radius is 0.22-0.25m on each sprayed side. Changing the head height above the soil changes the wetted area. The downward spray helps keep water within the pot.

The assembly includes the spray stake, pressure-compensating dripper, elbow adaptor and 1m microtube. Recommended filtration is 130 micron / 120 mesh.

Netafim PC Spray Stake Assembly Specifications

✓ 20 litres per hour Light grey Assembly
Pattern: Two sides.
Working pressure: 150-400kPa.

✓ 40 litres per hour Light Blue Assembly
Pattern: Two sides.
Working pressure: 180-400kPa.

✓ Tube
Length: 100cm.
Internal diameter: 3mm.
Outside diameter: 5mm.

✓ Filtration
Recommended filtration: 130 micron / 120 mesh.

✓ Coverage
Average wetted radius: 0.22-0.25m on each sprayed side.
Wetted radius varies with the height of the spray head above the soil.

✓ Assembly
Spray stake, pressure-compensating dripper, elbow adaptor and 1m microtube.
