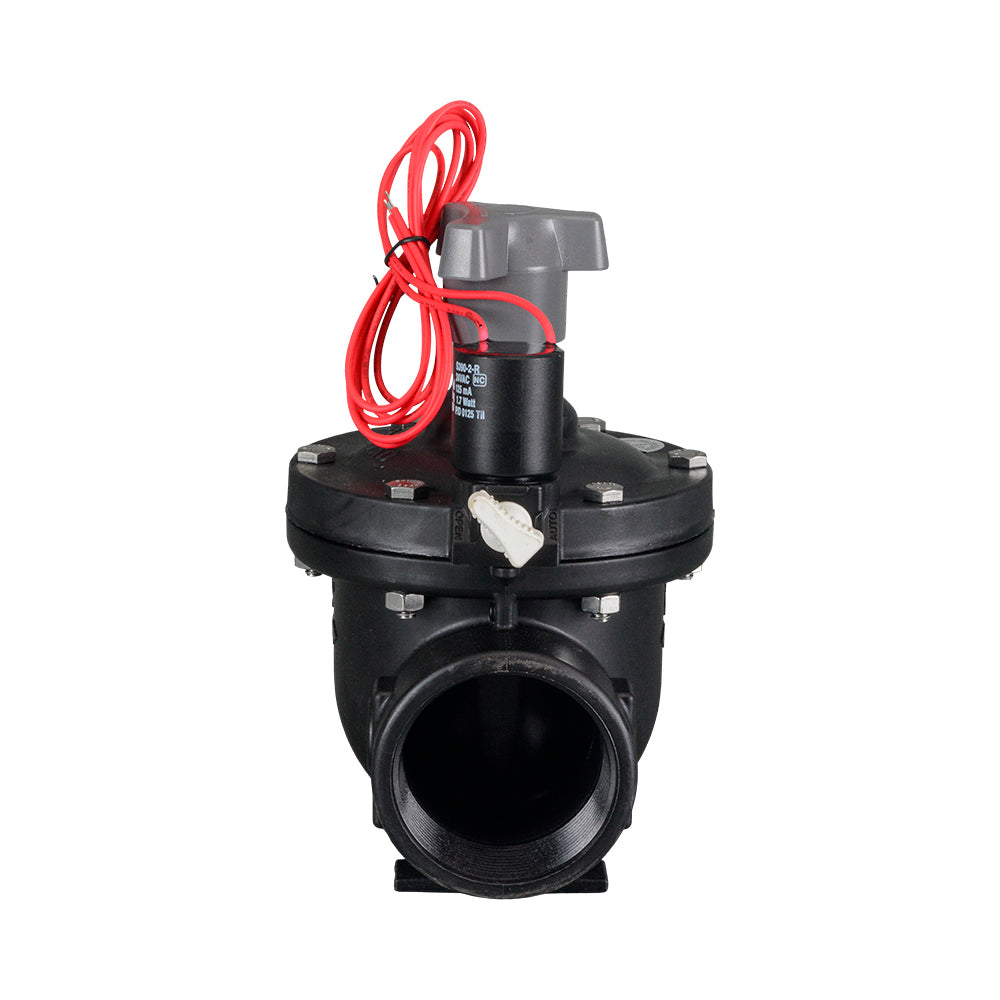

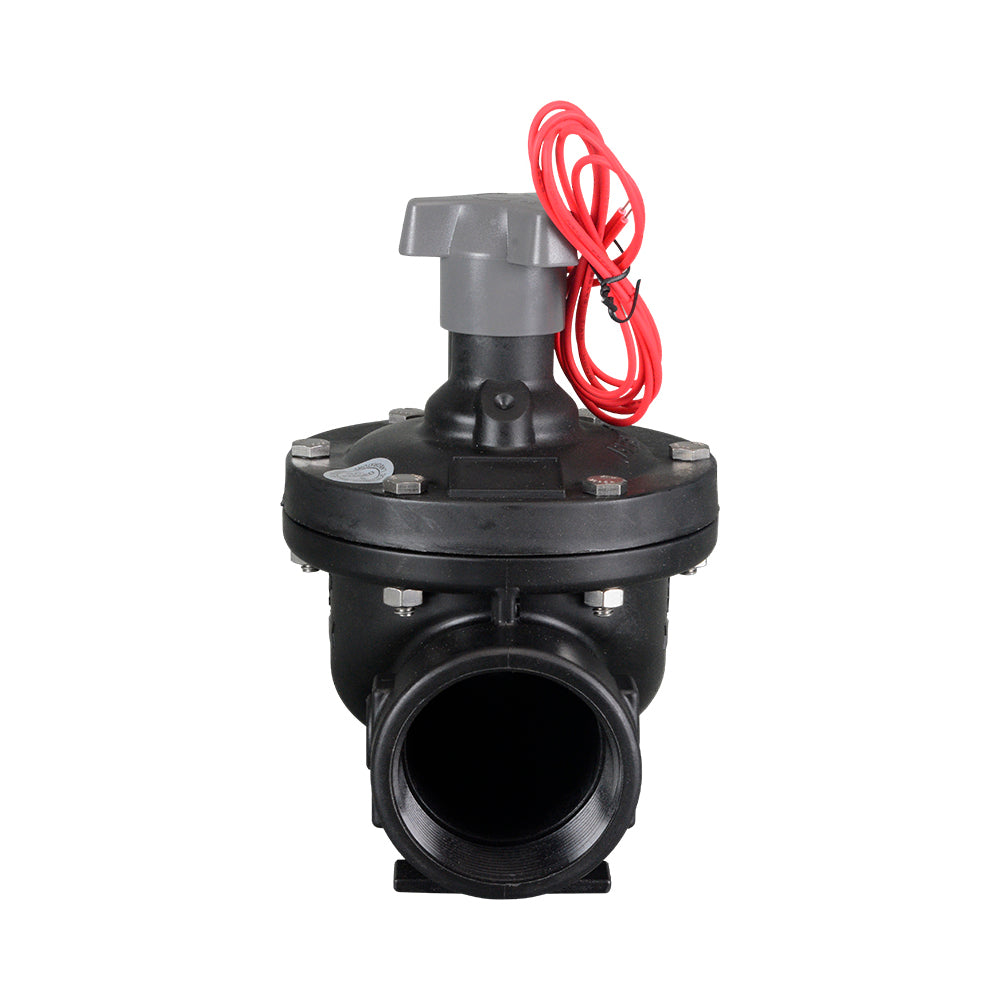

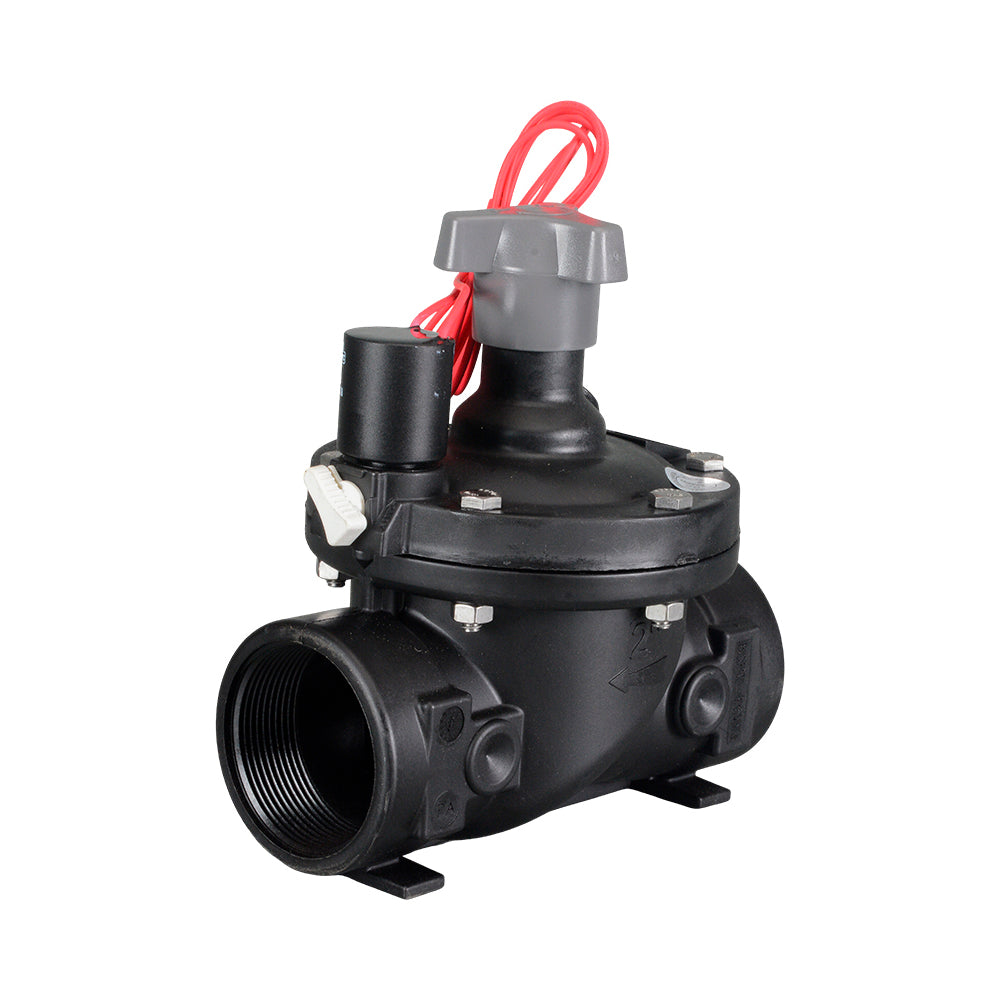

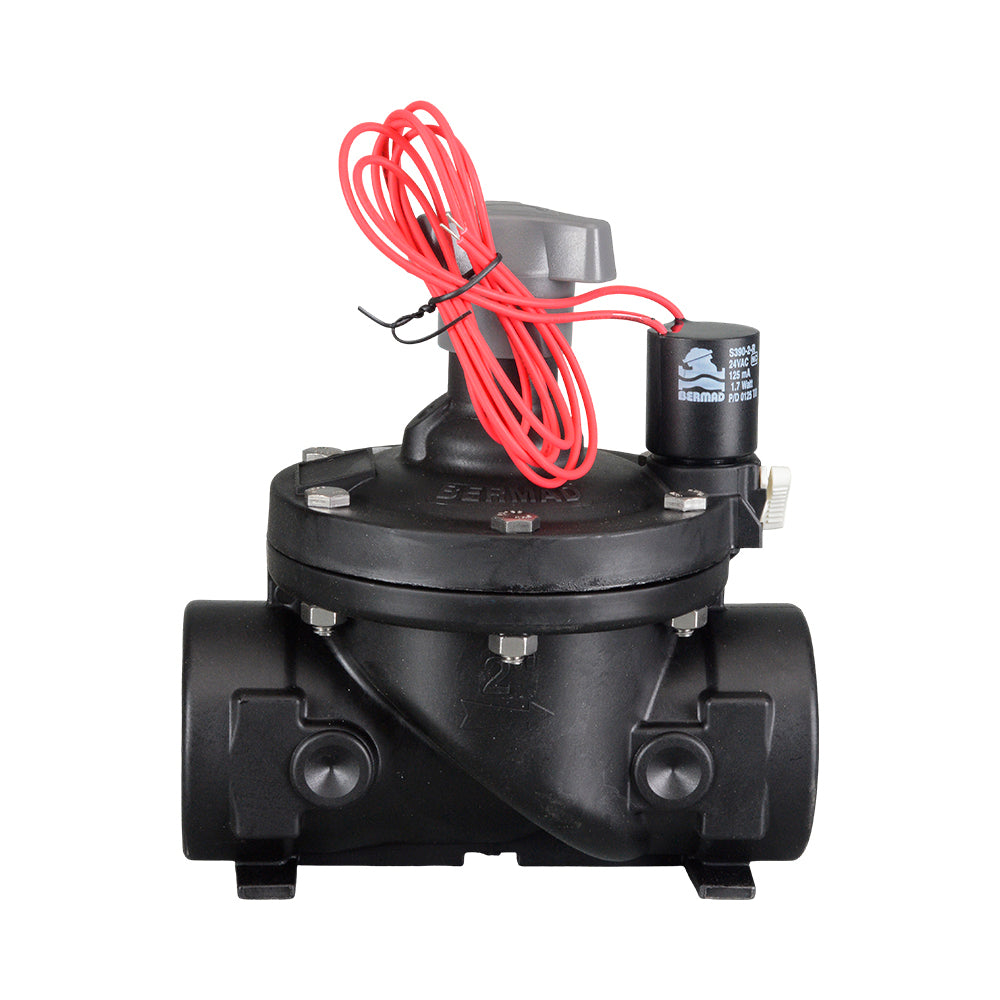

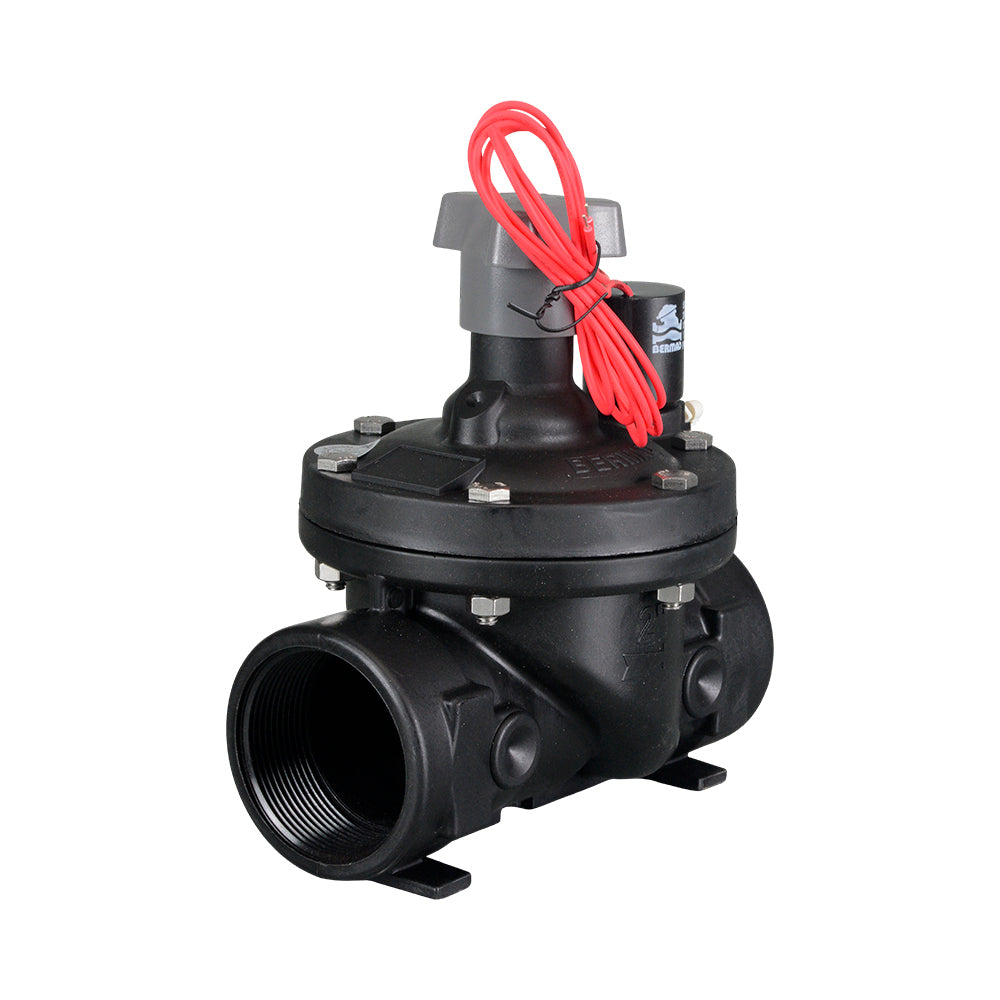

The Bermad 200 Series 50mm solenoid valve brings durable construction and smooth operation to automatic irrigation control. The reinforced nylon body is built to withstand demanding service conditions, and the valve is designed to open and close smoothly.
The open flow path helps limit pressure loss as water passes through the valve, leaving more of the available pressure for the irrigation system. Use the pressure-loss chart for the selected size to match the valve to the required flow.
The valve opens and closes in response to a compatible 24V AC controller. Normally closed operation keeps it closed when the controller is not supplying power to the solenoid.
The flow-control handle adjusts water flow at the valve. The inlet and outlet have 50mm BSP threads.
A manual override allows the valve to be operated locally for testing without a signal from the controller. Return the override to automatic operation after use.
The reinforced nylon body can remain connected to the pipework while the valve is serviced. Install the valve in the direction of the flow arrow and leave room to access the top for maintenance.
