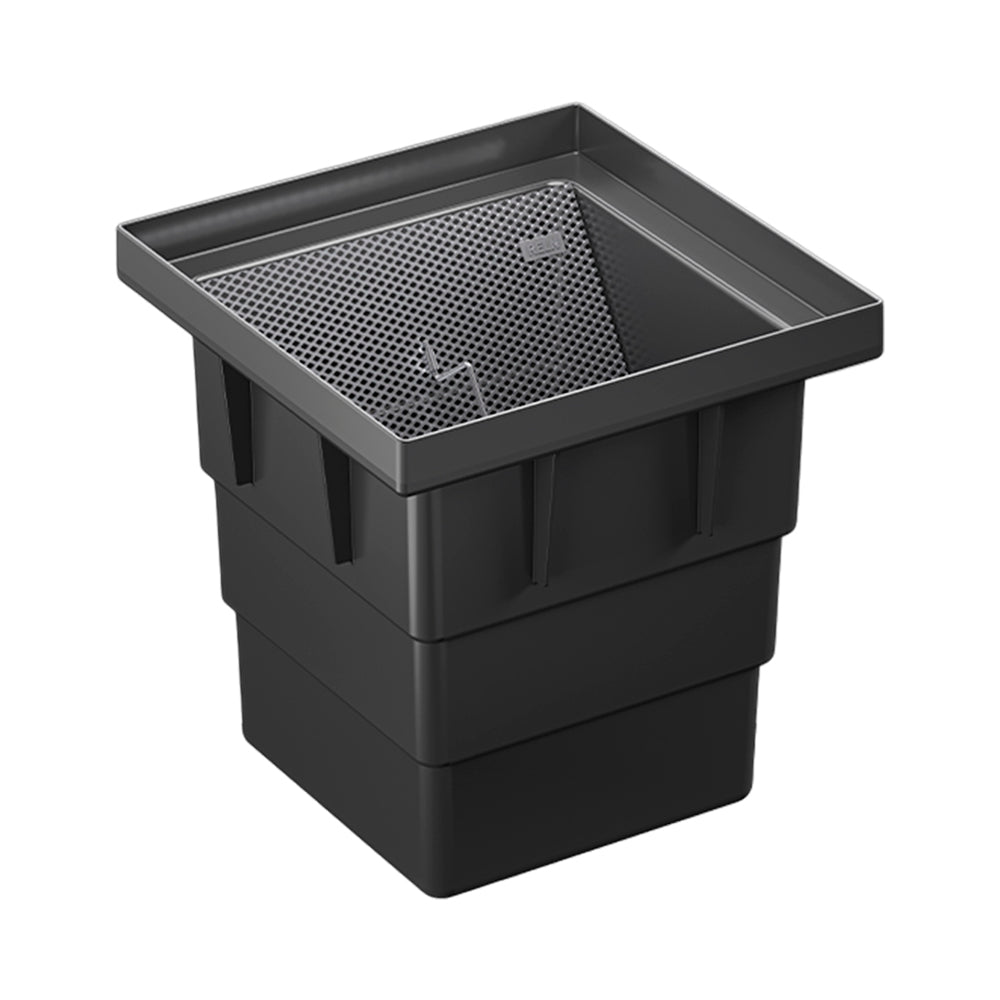

RELN black drainage pit with a perforated metal trash screen fitted inside.
Drainage grate fixing kit with two brackets, bolts and threaded inserts.
RELN black drainage pit with galvanised steel bar grate lifted above the opening.
RELN black drainage pit with open top and moulded side panels.
RELN black pit riser with open top and bottom and reinforcing ribs.
Square galvanised steel solid pit cover with a fixing hole near one corner.
Square metal drainage grate with closely spaced parallel bars.
Perforated metal pit trash screen with central wire handle.

RELN SERIES 450 PIT WITH GALVANISED STEEL CLASS B GRATE

RELN Series 450 commercial drainage pit with galvanised steel Class B grate for suitable driveways, carparks and trafficable surfacewater drainage applications.

✓ Complete Series 450 Pit
✓ 562mm x 562mm x 510mm Pit Size
✓ 76 Litre Capacity
✓ Galvanised Steel Class B Grate
✓ 2670kg Medium Duty Listed Rating
✓ Check Load Rating and Installation Requirements

RELN Heavy Duty Commercial Pits Brochure

More Information
Product Specifications
Product Videos
RELN black drainage pit fitted with a galvanised steel bar grate.
RELN SERIES 450 PIT WITH GALVANISED STEEL CLASS B GRATE

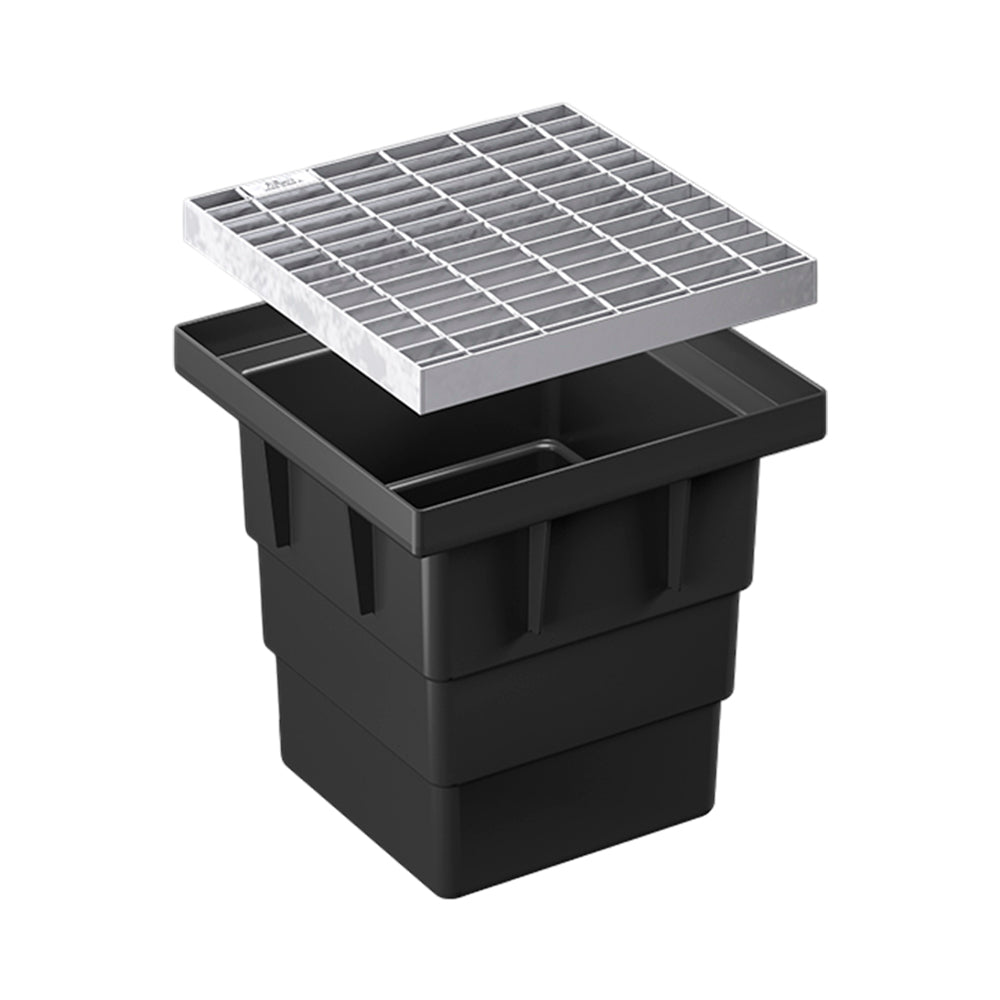

RELN black drainage pit with galvanised steel bar grate lifted above the opening.
RELN Pit and Galvanised Steel Grate-Class A Series 450 RPS450GSCLAG
$143.07 /each

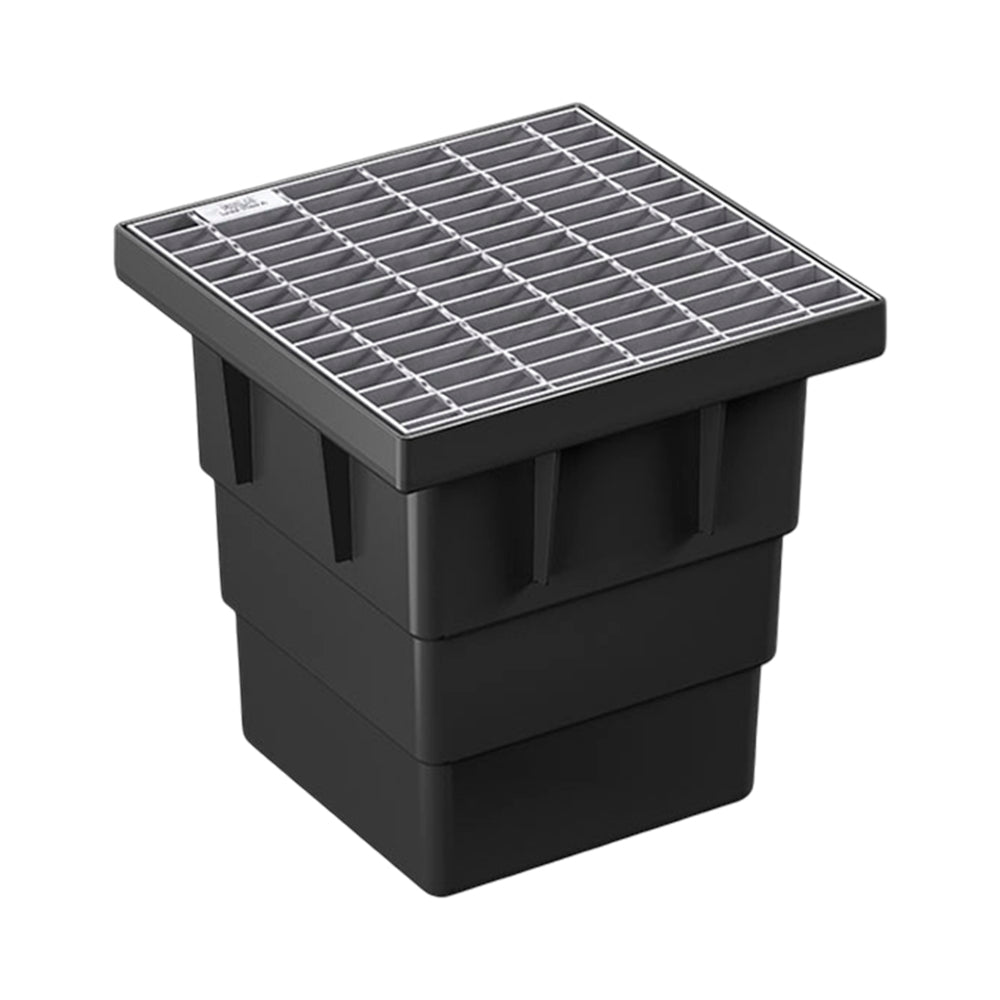

RELN black drainage pit fitted with a galvanised steel bar grate.
RELN Pit and Galvanised Steel Grate-Class B Series 450 RPS450GSCLBG
$251.58 /each
Square galvanised steel drainage grate with rectangular grid openings.
Galvanised Steel Grate RELN Series 450 Class A (GRATE ONLY) RPGS450GSCLA
$93.27 /each

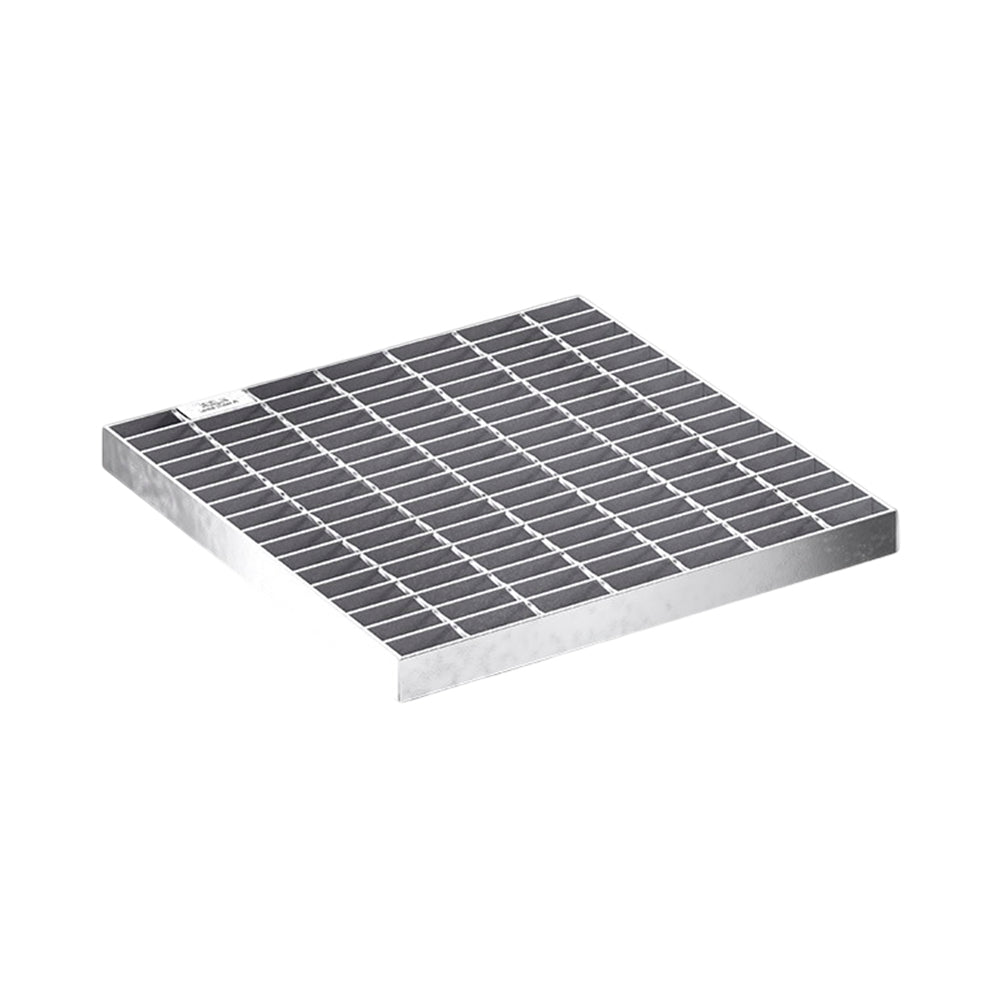

Square galvanised steel drainage grate with rectangular grid openings.
Galvanised Steel Grate RELN Series 450 Class B (GRATE ONLY) RPGS450GSCLB
$201.78 /each

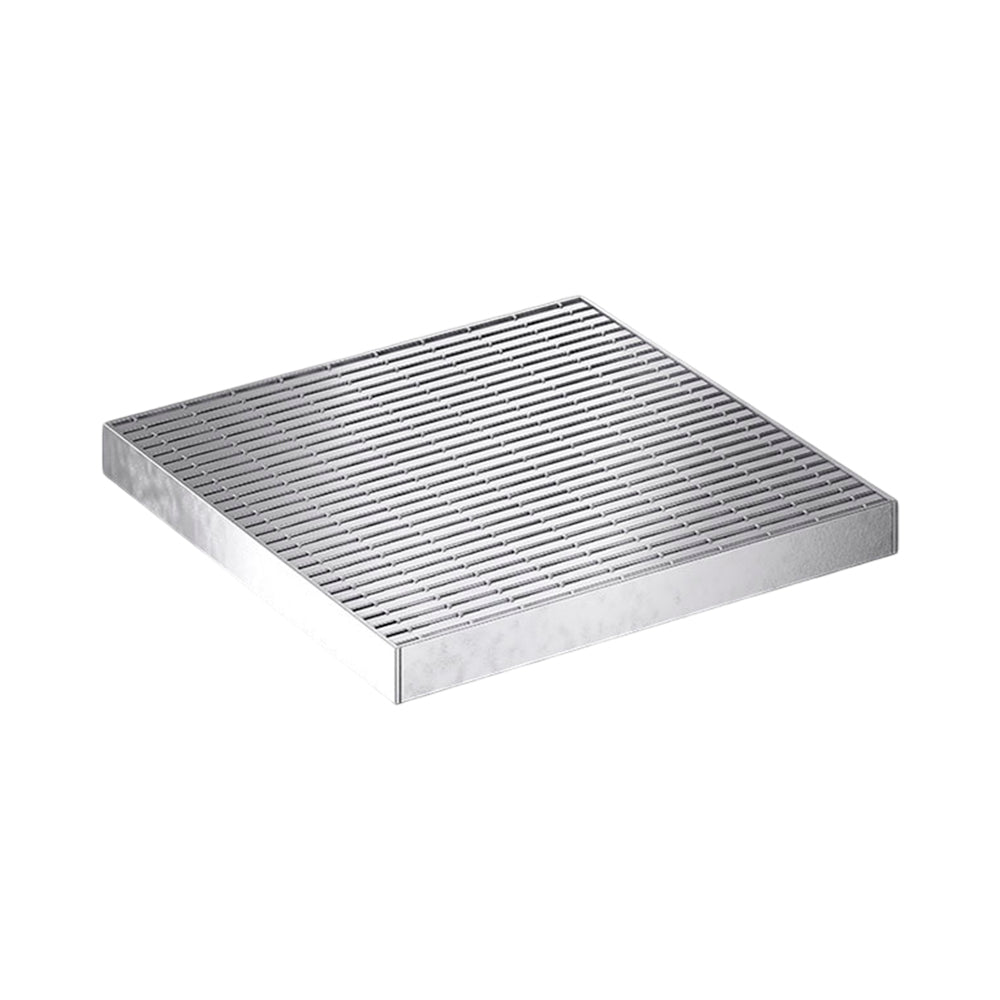

Square metal drainage grate with closely spaced parallel bars.
Galvanised Steel Grate RELN Series 450 Anti-Slip Heel Guard Class A (GRATE ONLY) RPGS450GSHGCLA
$347.01 /each
Square metal drainage grate with closely spaced parallel bars.
Galvanised Steel Grate RELN Series 450 Anti-Slip Heel Guard Class B (GRATE ONLY) RPGS450GSHGCLB
$393.73 /each

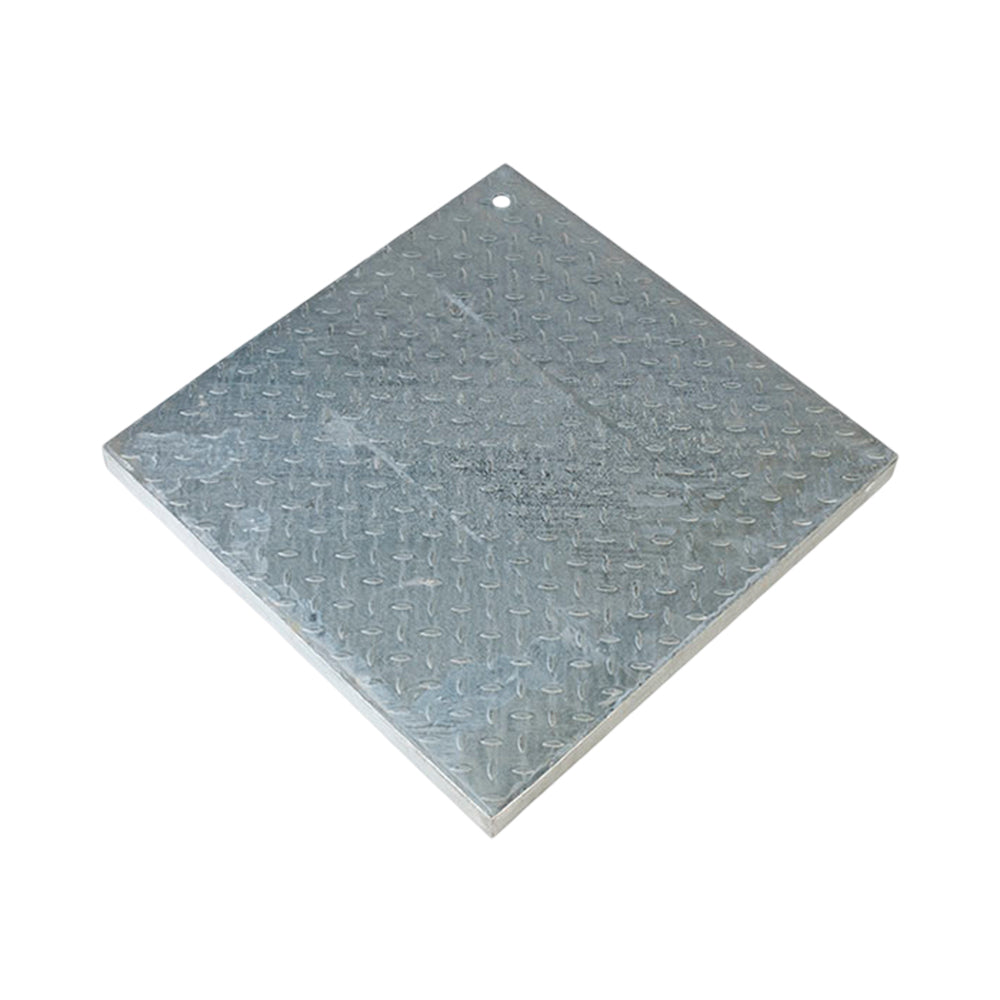

Square galvanised steel solid pit cover with a fixing hole near one corner.
Galvanised Steel Cover RELN Series 450 Checker Plate Class B (COVER ONLY) RPGS450GSCP
$191.78 /each

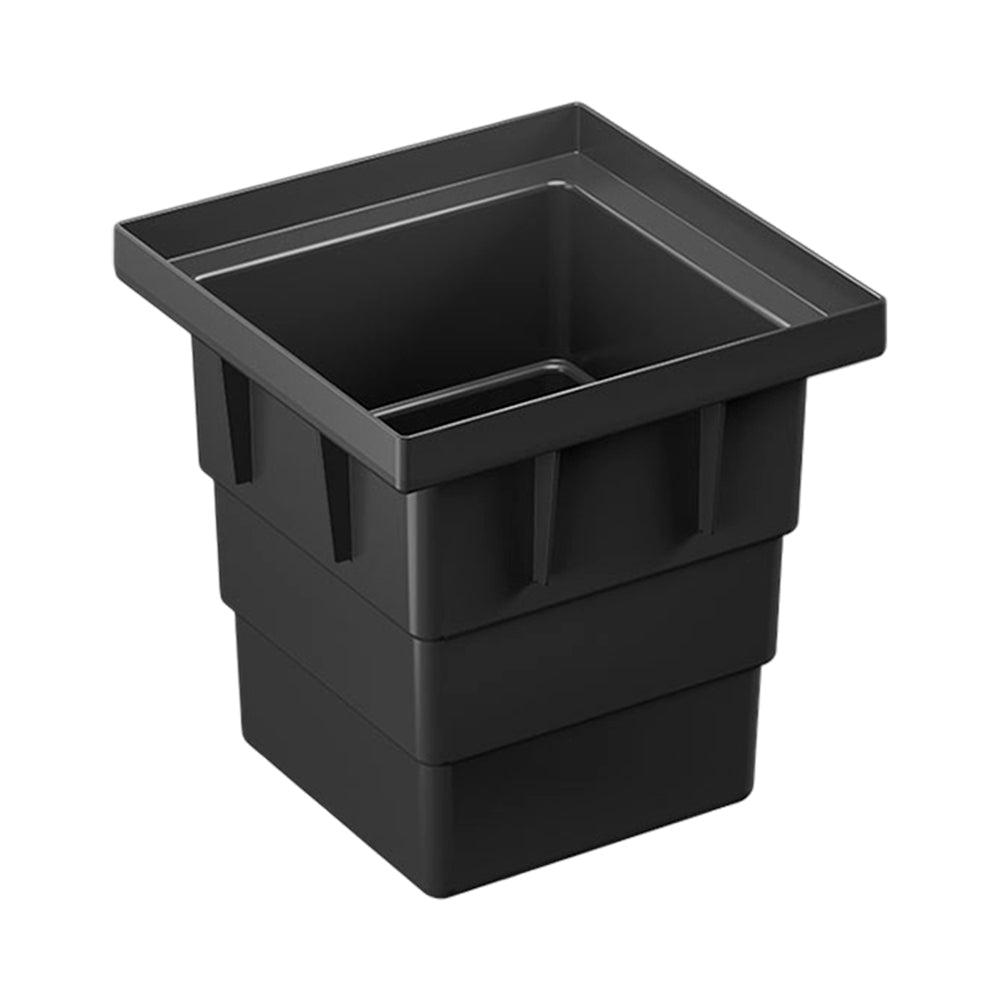

RELN black drainage pit with open top and moulded side panels.
RELN (PIT ONLY) Series 450 RPS450
$49.80 /each

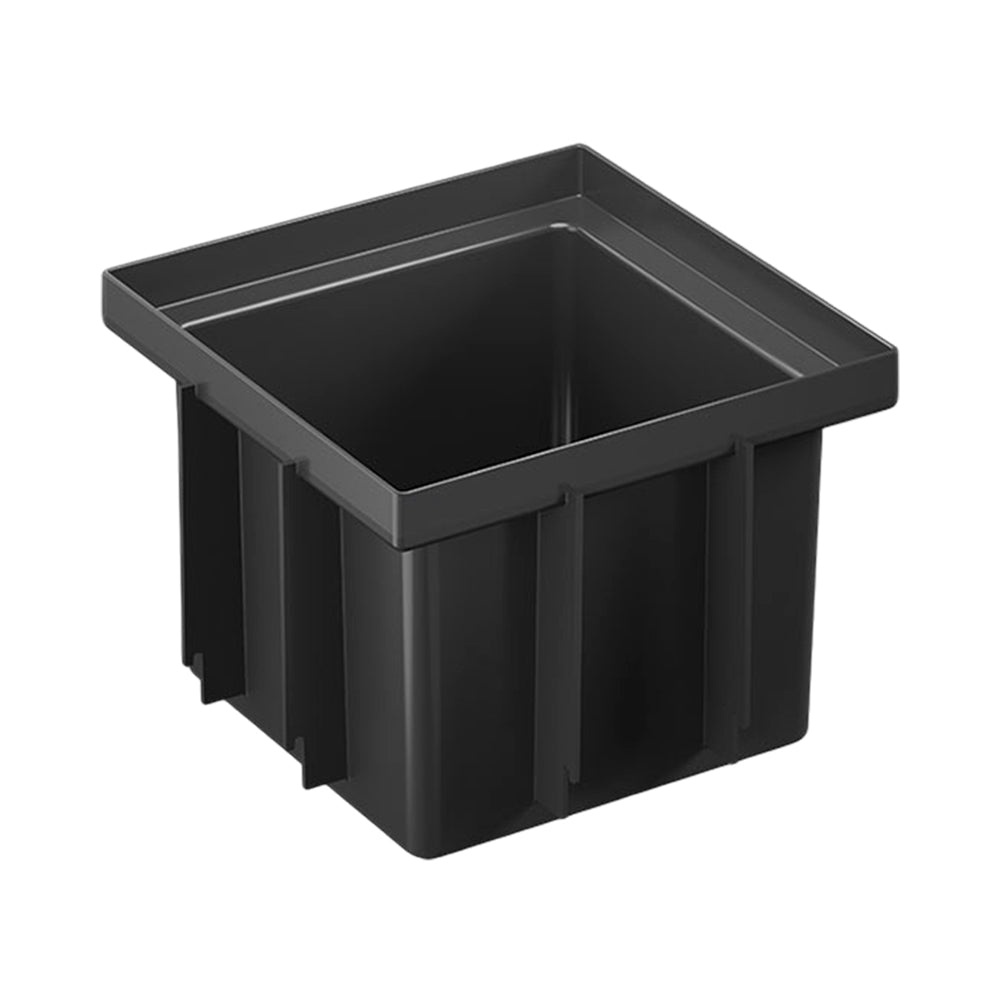

RELN black pit riser with open top and bottom and reinforcing ribs.
RELN (RISER ONLY) Series 450 RPRS450
$88.62 /each

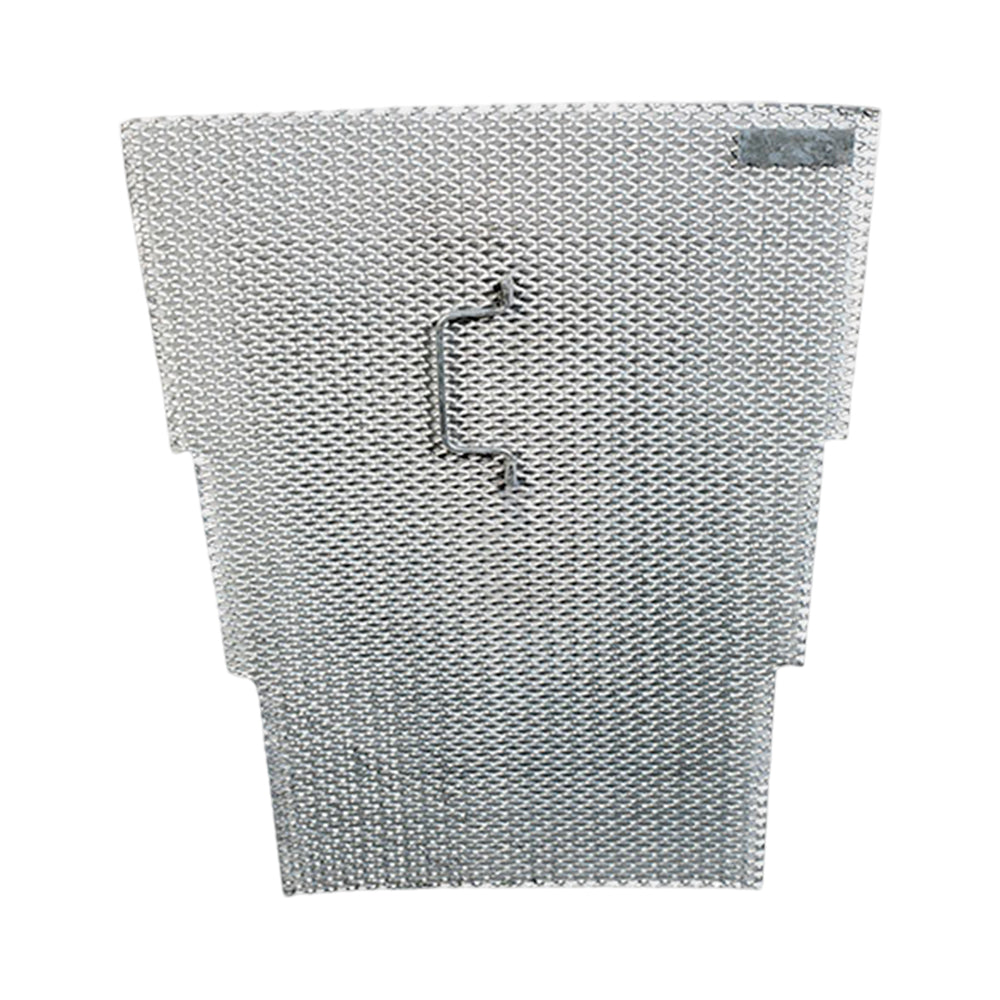

Perforated metal pit trash screen with central wire handle.
Galvanised Steel RELN Series 450 Trash Screen (SCREEN ONLY) RPS600TSS450
$141.65 /each

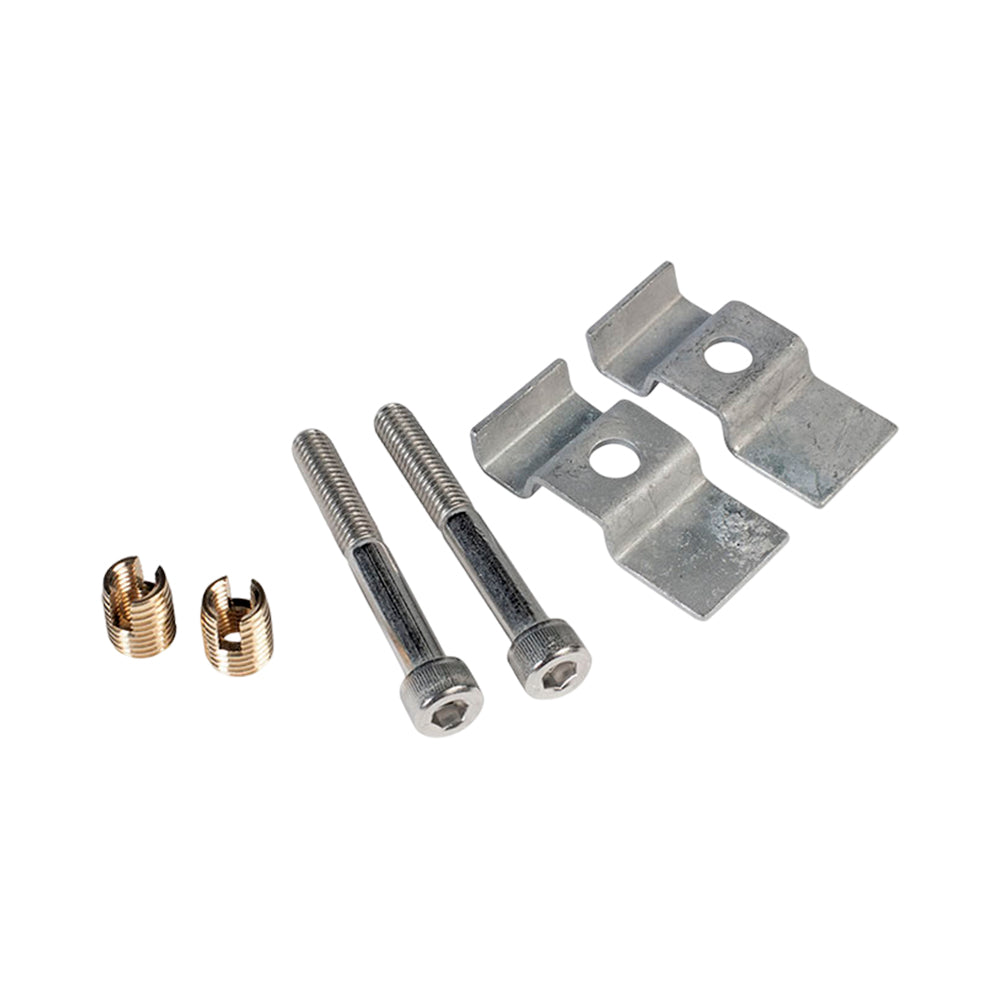

Drainage grate fixing kit with two brackets, bolts and threaded inserts.
Grate Security Lock Kit RELN Series 450/600 (LOCK KIT ONLY) RPAGSKS450-600
$18.24 /each

RELN Series 450 pit with galvanised steel Class B grate is a commercial surfacewater drainage pit for driveways, carparks and trafficable areas where a Class B grate is required. It is supplied as a complete Series 450 pit with galvanised steel Class B grate.

The Series 450 pit measures 562mm x 562mm x 510mm and has a 76 litre capacity. The galvanised steel Class B grate is listed as 2670kg medium duty. Load suitability depends on the selected grate, correct installation, concrete support and site loading conditions. Confirm pipe layout, grate rating and installation requirements before ordering.

RELN Heavy Duty Commercial Pits Brochure

✓ Product Type & Size
RELN Series 450 commercial drainage pit, 562mm x 562mm x 510mm.

✓ Series
RELN Series 450 Heavy Duty Commercial Pit.

✓ Capacity
76 litre capacity.

✓ Grate Type
Galvanised steel Class B grate.

✓ Load Rating
Class B, 2670kg medium duty listed rating.

✓ Material
UV stabilised recycled plastic pit body with galvanised steel grate.

✓ Weight
Approximately 20.2kg.

✓ Pipe Connection
Pipe openings are cut to suit the stormwater pipe layout.

✓ Riser Compatibility
Compatible Series 450 riser available where extra pit height is required.

✓ Accessory Compatibility
Compatible trash screen and Series 450/600 grate security kit available where required.

✓ Applications
Suitable for commercial surfacewater drainage applications and areas with light vehicle traffic where a Class B grate, pit installation and concrete support are appropriate.

✓ Installation Note
Confirm pipe size, drainage layout, grate rating, riser requirements, loading conditions and concrete support before ordering.
