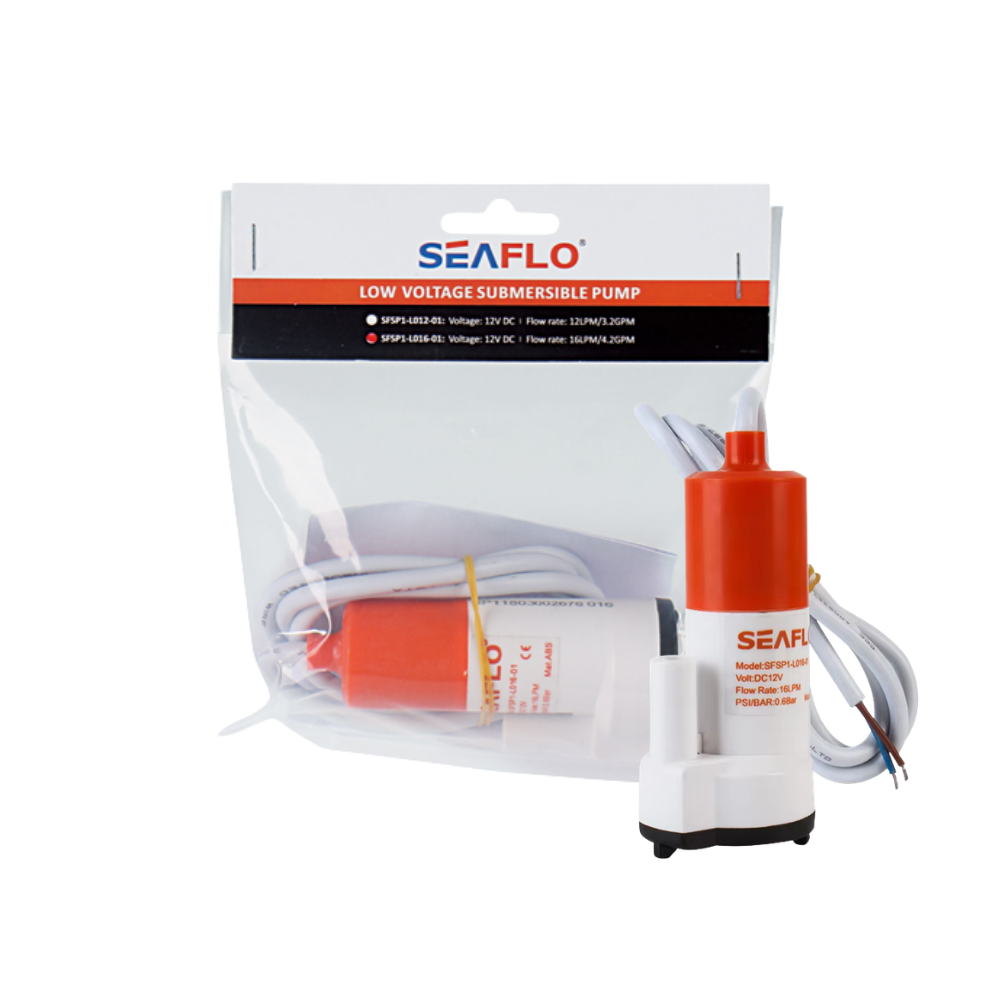

PUMP Seaflo Submersible Pump 16LPM 12V
PUMP Seaflo Submersible Pump 16LPM 12V

SEAFLO 16L/MIN 12V SUBMERSIBLE PUMP

The Seaflo 16L/min 12V submersible pump provides a compact way to transfer water from a tank or container. It operates below the water surface and delivers through a 12mm outlet, keeping the pump at the water source while a hose carries the discharge where required. A 3m lead provides length for the electrical connection outside the tank.

✓ Maximum flow: 16L/min
✓ Maximum head: 5.5m
✓ Outlet: 12mm
✓ Supply: 12V DC
✓ Lead length: 3m

Seaflo 16L/min Submersible Pump Specifications
Seaflo Low Voltage Submersible Manual

More Information
Product Specifications
PUMP Seaflo Submersible Pump 16LPM 12V
SEAFLO 16L/MIN 12V SUBMERSIBLE PUMP
PUMP Seaflo Submersible Pump 16LPM 12V
PUMP Seaflo Submersible Pump 16LPM 12V PUMP-SFSP1-L016-01
$44.26 /each

Transfer water from tanks and containers with the Seaflo 12V submersible pump. Maximum flow is 16L/min, with a maximum head of 5.5m, and the discharge connects to 12mm hose.

The pump operates below the water surface, keeping it at the water source while the hose carries the discharge. A 3m lead provides length for the power connection outside the tank.

Flow reduces as lift and hose resistance increase. Maximum flow and maximum head are separate limits; use the linked performance data to assess delivery for the installation.

Seaflo 16L/min Submersible Pump Specifications
Seaflo Low Voltage Submersible Manual

✓ Product Type & Application
Submersible water-transfer pump for tanks and containers.
Model: SFSP1-L016-01

✓ Capacity & Performance
Maximum flow: 16L/min
Maximum head: 5.5m
Maximum flow and maximum head are separate limits; flow decreases as lift and hose resistance increase.

✓ Flow at Discharge Head
1m head: 700L/h
2m head: 500L/h
3m head: 439L/h
4m head: 325L/h
5m head: 167L/h
5.5m head: 0L/h

✓ Connections & Compatibility
Outlet: 12mm

✓ Electrical & Leads
Power supply: 12V DC
Lead length: 3m

✓ Installation & Use
Operates below the water surface, with a hose carrying the discharge.
