The Seaflo RV Supreme supplies pressurised freshwater to caravan and boat outlets, using 12V and 24V options. Maximum flow is 9.5L/min, and the pressure switch shuts off at 55psi. Both ports have 1/2"-14 male NPT threads for matching female fittings.
Opening an outlet lowers system pressure and starts the pump; closing it allows pressure to build until the switch stops the motor. Internal bypass control helps handle low water demand. Maximum flow and shutoff pressure describe separate operating limits.

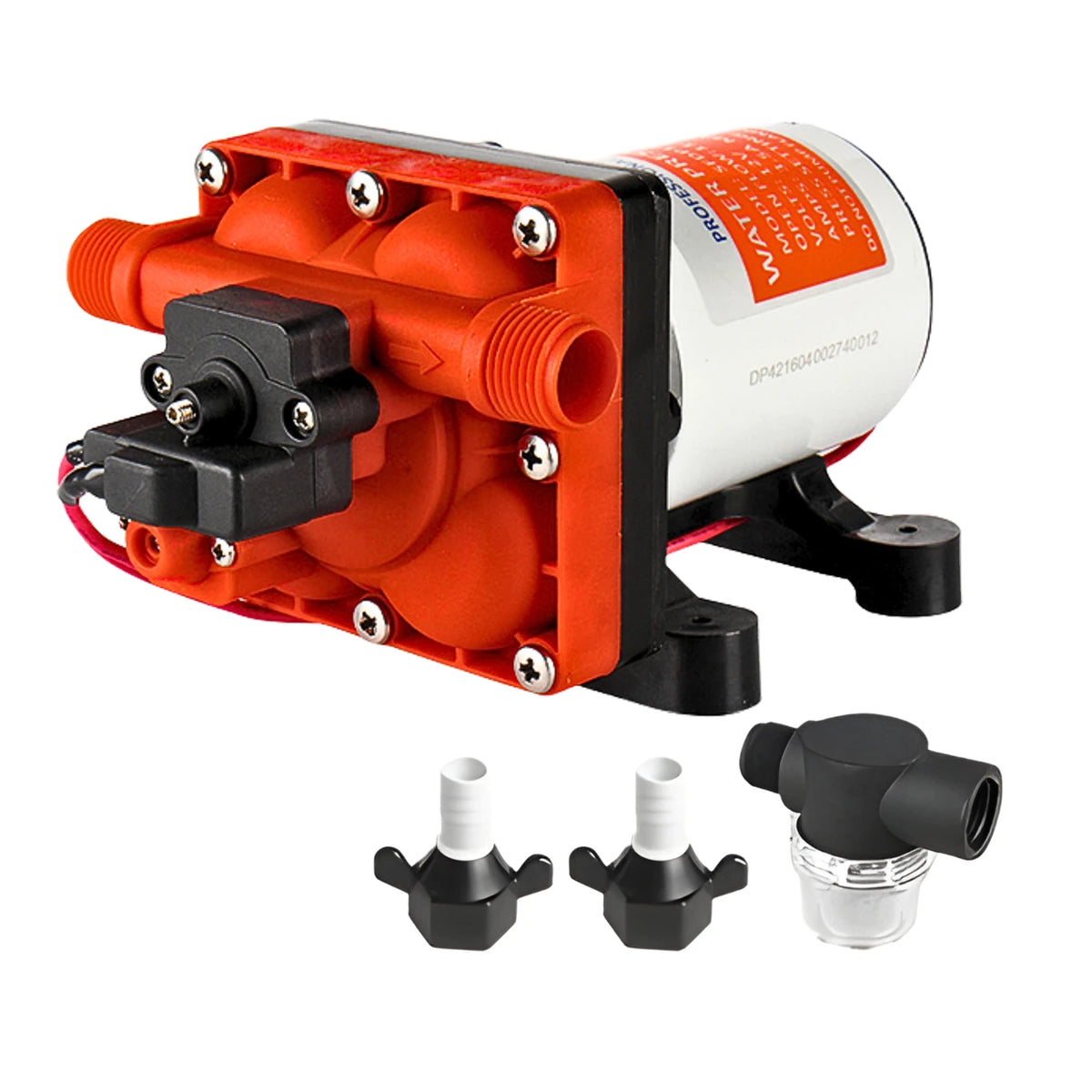

SEAFLO 42-series RV diaphragm pump with fittings and strainer

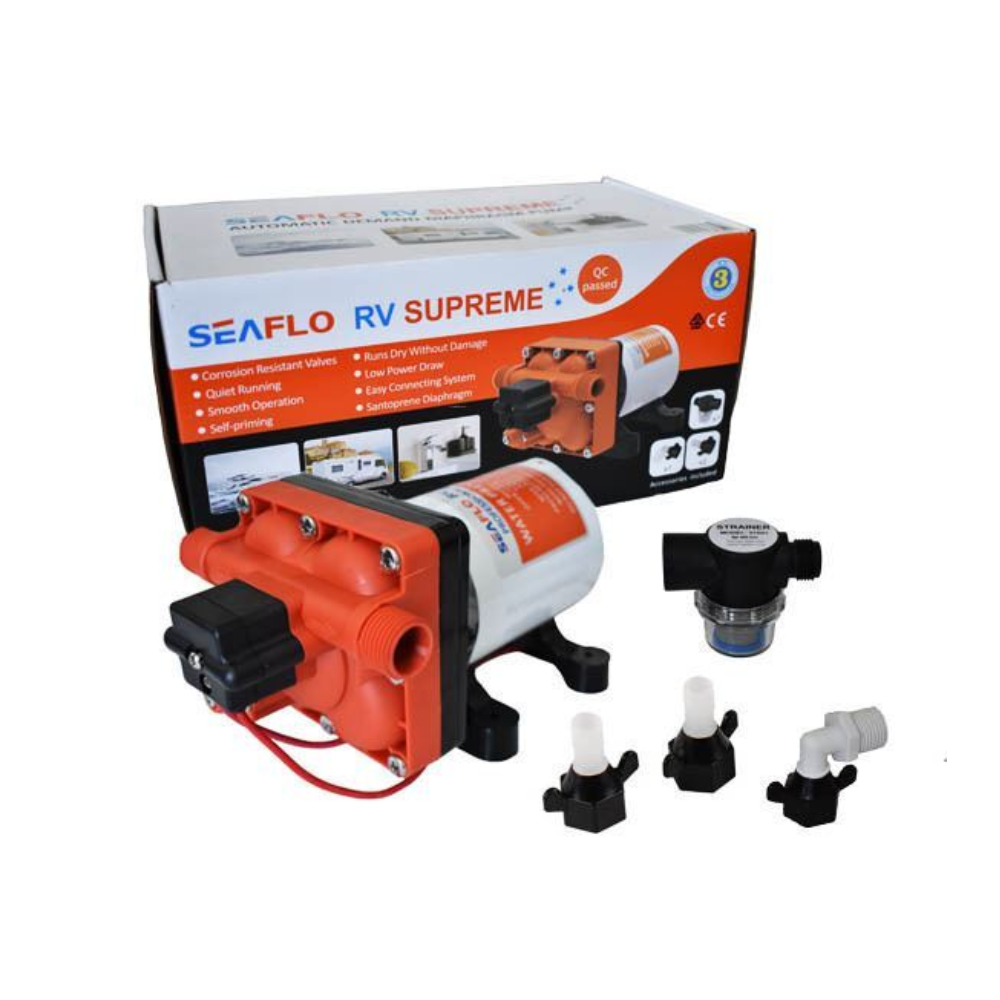

Seaflo RV Supreme MK2 Pump 12V 3.0GPH
