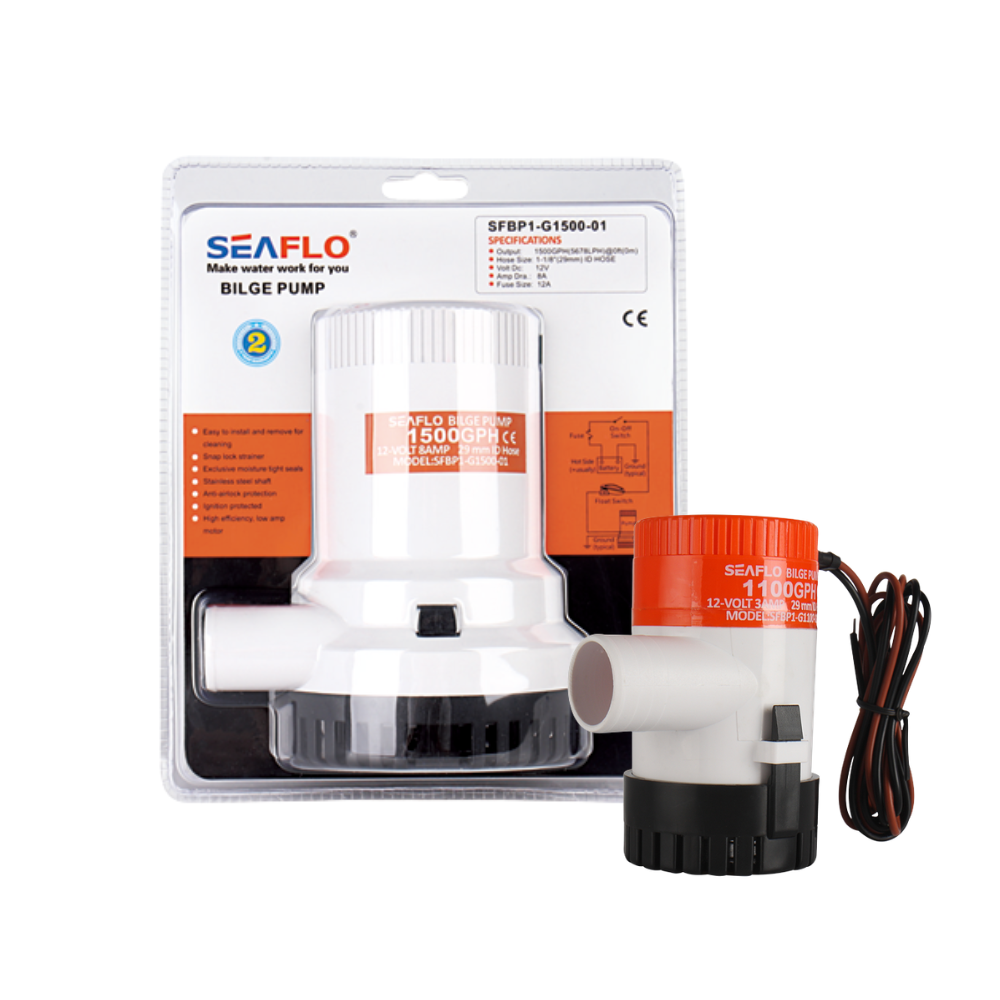

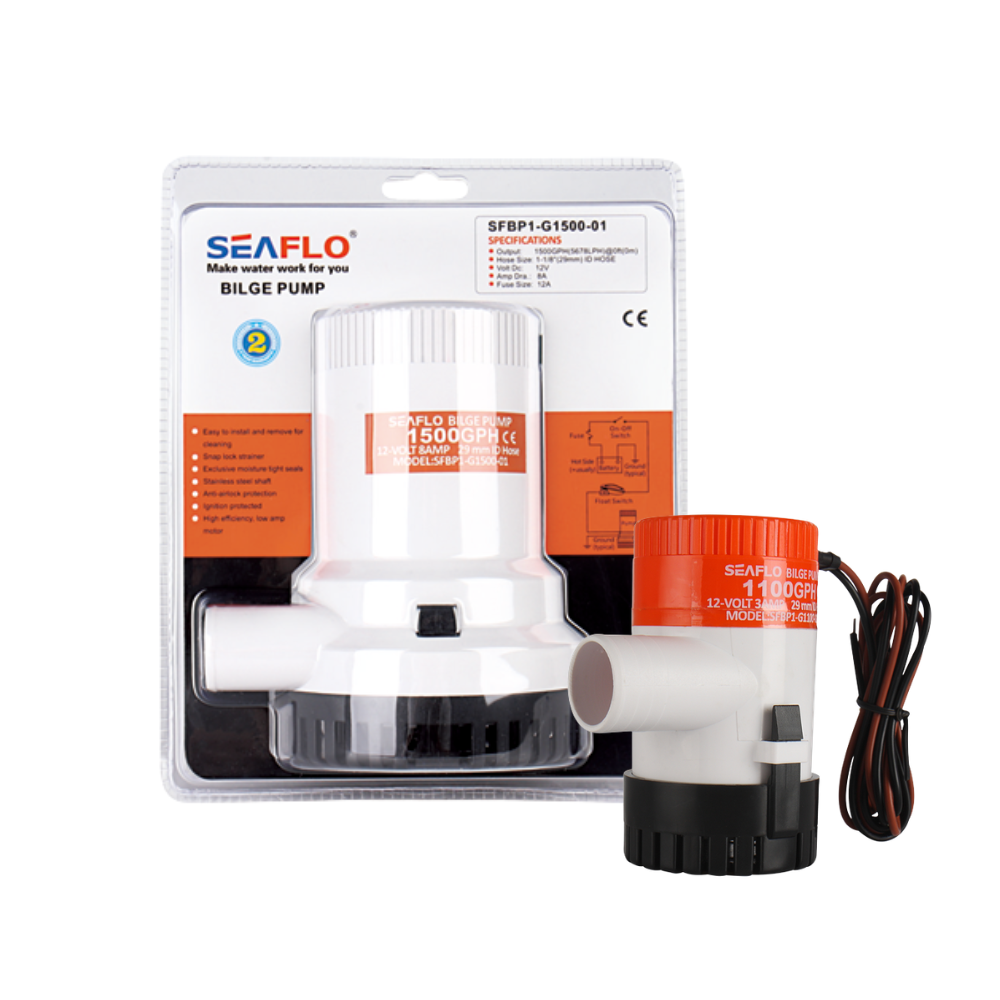

SEAFLO 1100GPH non-automatic bilge pump, representative 01-series housing photo
SEAFLO 1100GPH non-automatic bilge pump, representative 01-series housing photo
Seaflo Manual Bilge Pump 1100GPH 12V
SEAFLO 1100GPH non-automatic bilge pump, representative 01-series housing photo
Seaflo Manual Bilge Pump 1100GPH 12V

SEAFLO 1100GPH BILGE PUMPS

The Seaflo 1100GPH bilge pump removes accumulated water from boat bilges using a 12V or 24V supply. Separate switching lets it work with a manual control or an external float switch, so the control arrangement can suit the boat installation. The removable inlet strainer gives access to clear debris from the pump inlet.

✓ Maximum flow: 66.5L/min
✓ Maximum head: 4m
✓ Hose outlet: 1 1/8"
✓ Supply options: 12V DC, 24V DC
✓ Control: Non-automatic
✓ Nominal capacity: 1100GPH

Seaflo Non-Automatic Bilge Pumps Specifications

More Information
Product Specifications
SEAFLO 1100GPH non-automatic bilge pump, representative 01-series housing photo
SEAFLO 1100GPH BILGE PUMPS
SEAFLO 1100GPH non-automatic bilge pump, representative 01-series housing photo
Seaflo Manual Bilge Pump 1100GPH 12V PUMP-SFBP1-G1100-01
$46.36 /each
SEAFLO 1100GPH non-automatic bilge pump, representative 01-series housing photo
Seaflo Manual Bilge Pump 1100GPH 24V PUMP-SFBP2-G1100-01
$46.36 /each

The Seaflo 1100GPH bilge pump removes accumulated water from boat bilges, with a maximum flow of 66.5L/min and maximum head of 4m. The discharge connects to 1 1/8" hose. Available with 12V and 24V options.

Use a manual switch for direct control, or connect a separate float switch for automatic operation as the bilge water level changes. The removable inlet strainer provides access to clear debris.

Maximum flow applies at low discharge head. Flow reduces as lift and hose resistance increase, reaching zero at maximum head.

Seaflo Non-Automatic Bilge Pumps Specifications

✓ Product Type & Application
Non-automatic submersible bilge pump for removing accumulated water from boats.

✓ Capacity & Performance
Maximum flow: 66.5L/min
Maximum head: 4m
Nominal capacity: 1100GPH
Maximum flow and maximum head are separate limits; flow decreases as lift and hose resistance increase.

✓ Connections & Compatibility
Hose outlet: 1 1/8"

✓ Electrical & Leads
Power supply: 12V or 24V DC

✓ Operation & Control
Control: Non-automatic

✓ Construction & Features
Removable inlet strainer for access when clearing debris.

✓ Installation & Use
Requires manual switching or a separate float switch for automatic operation.
