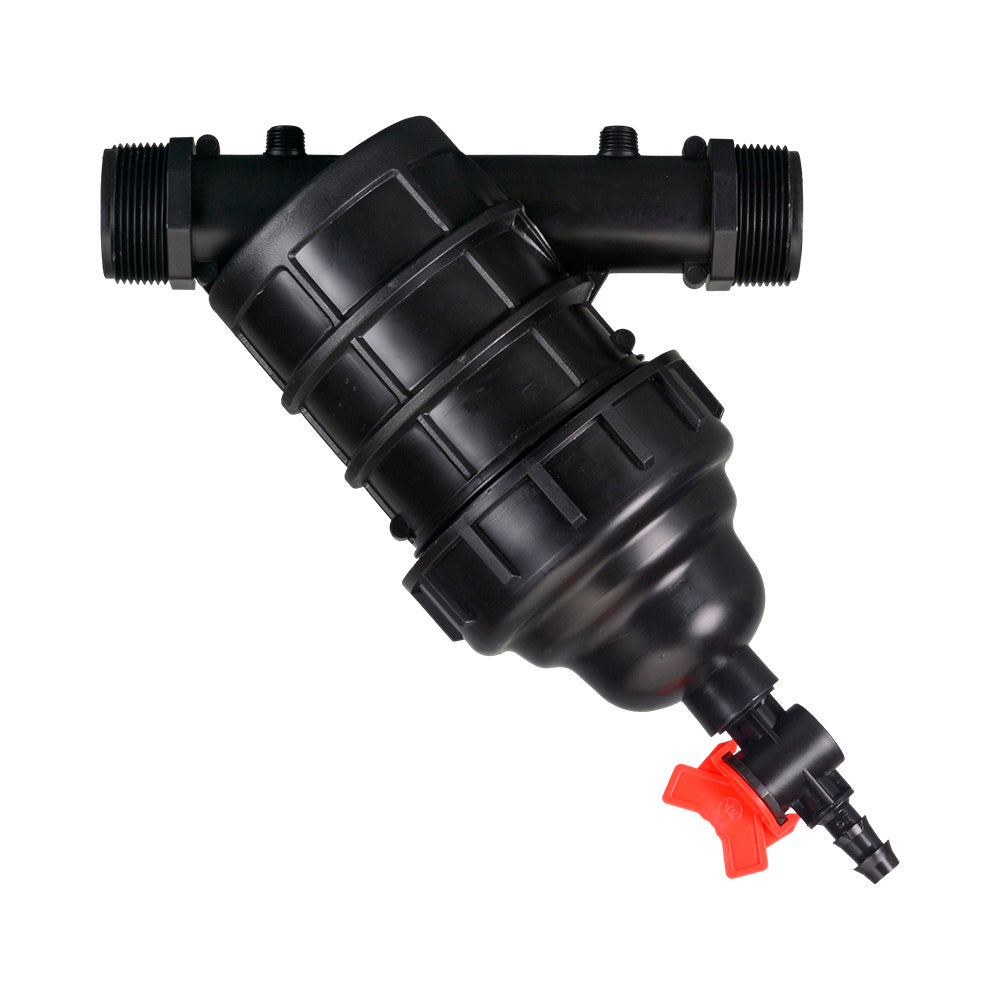

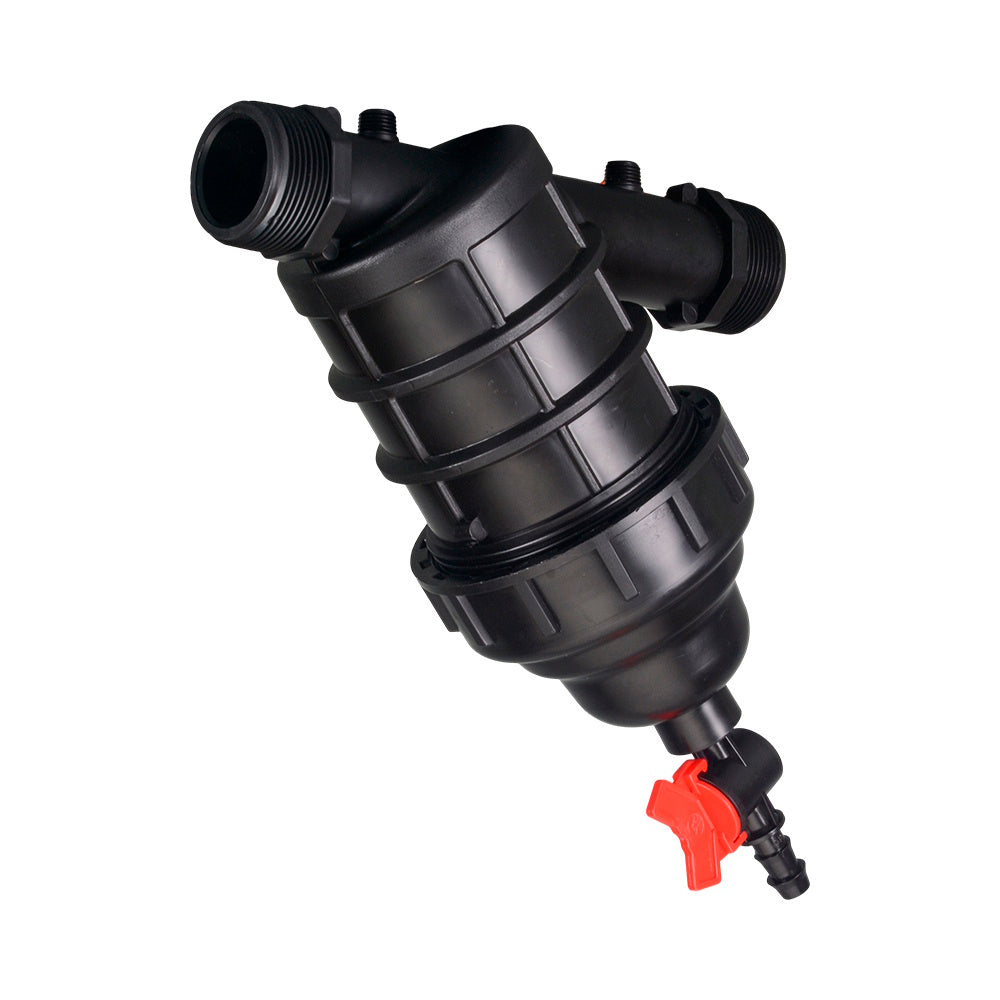

FILTER PLASTIC BODY WITH 120 MESH SCREEN RED 40MM BSPM

40mm BSPM plastic body mesh screen filter with red 120 mesh screen for filtering sand and inorganic particles from drip, micro jet and sprinkler systems. The filter uses a flushing valve to help release collected debris during maintenance.

✓ 40mm Male BSP Connection
✓ 120 Mesh Screen
✓ Red Screen Element
✓ 133lpm Discharge
✓ 800kPa Working Pressure
✓ PPC Body with INOX Screen

20mm and 25mm Mesh Screen Filter Specifications
40mm and 50mm Mesh Screen Filter Specification
Tavlit fitler Specifications Sheet 1
Tavlit Filter Specifications Sheet 2

More Information
Product Specifications
Filter Plastic Body With 120 Mesh Screen (Red) 40mm BSPM
FILTER PLASTIC BODY WITH 120 MESH SCREEN RED 40MM BSPM
Filter Plastic Body With 120 Mesh Screen (Red) 20mm BSPF
Filter Plastic Body With 120 Mesh Screen (Red) 20mm BSPF FPM20120
$28.55 /each
Filter Plastic Body With 120 Mesh Screen (Red) 25mm BSPF
Filter Plastic Body With 120 Mesh Screen (Red) 25mm BSPF FPM25120
$28.55 /each
Filter Plastic Body With 120 Mesh Screen (Red) 40mm BSPM
Filter Plastic Body With 120 Mesh Screen (Red) 40mm BSPM FPM40120
$46.28 /each
Filter Plastic Body With 120 Mesh Screen (Red) 50mm BSPM
Filter Plastic Body With 120 Mesh Screen (Red) 50mm BSPM FPM50120
$86.63 /each
Replacement 80 Mesh Screen only (Light Blue) for 20mm/25mm BSP Filter Body
Replacement 80 Mesh Screen only (Light Blue) for 20mm/25mm BSP Filter Body FM2025080
$13.94 /each
Replacement 120 Mesh Screen only (Red) for 20mm/25mm BSP Filter Body
Replacement 120 Mesh Screen only (Red) for 20mm/25mm BSP Filter Body FM2025120
$13.94 /each
Replacement 155 Mesh Screen only (Green) for 20mm/25mm BSP Filter Body
Replacement 155 Mesh Screen only (Green) for 20mm/25mm BSP Filter Body FM2025155
$13.94 /each
Replacement 60 Mesh Screen only (Grey) for 40mm BSP Filter Body
Replacement 60 Mesh Screen only (Grey) for 40mm BSP Filter Body FM40060
$16.83 /each
Replacement 80 Mesh Screen only (Black) for 40mm BSP Filter Body
Replacement 80 Mesh Screen only (Black) for 40mm BSP Filter Body FM40080
$16.83 /each
Replacement 120 Mesh Screen only (Red) for 40mm BSP Filter Body
Replacement 120 Mesh Screen only (Red) for 40mm BSP Filter Body FM40120
$16.83 /each
Replacement 150 Mesh Screen only (Brown) for 40mm BSP Filter Body
Replacement 150 Mesh Screen only (Brown) for 40mm BSP Filter Body FM40150
$16.83 /each
Replacement 60 Mesh Screen only (Grey) for 50mm BSP Filter Body
Replacement 60 Mesh Screen only (Grey) for 50mm BSP Filter Body FM50060
$23.93 /each
Replacement 80 Mesh Screen only (Black) for 50mm BSP Filter Body
Replacement 80 Mesh Screen only (Black) for 50mm BSP Filter Body FM50080
$23.93 /each
Replacement 120 Mesh Screen only (Red) for 50mm BSP Filter Body
Replacement 120 Mesh Screen only (Red) for 50mm BSP Filter Body FM50120
$23.93 /each
Replacement 150 Mesh Screen only (Brown) for 50mm BSP Filter Body
Replacement 150 Mesh Screen only (Brown) for 50mm BSP Filter Body FM50150
$23.93 /each

Filter plastic body with 120 mesh screen, red, 40mm BSPM, is used to filter sand and inorganic particles from drip, micro jet and sprinkler systems. It is suitable for irrigation systems where a 40mm Male BSP mesh screen filter with flushing valve is required.

This 40mm screen filter has a 120 mesh screen, PPC body and INOX screen. Incoming water is directed through a nozzle plate onto the inside of the screen, with hydrocyclonic movement and gravity helping move debris down to the flushing valve. The 40mm filter has 185cm² screen surface area, 133lpm discharge and 800kPa working pressure. Confirm connection type, flow direction, flushing access and system pressure before installation.

20mm and 25mm Mesh Screen Filter Specifications
40mm and 50mm Mesh Screen Filter Specification
Tavlit fitler Specifications Sheet 1
Tavlit Filter Specifications Sheet 2

✓ Product Type & Size
Plastic body mesh screen filter, 40mm BSPM.

✓ Connection
40mm Male BSP connection.

✓ Mesh Rating
120 mesh screen.

✓ Micron Rating
120 mesh is listed as approximately 125 micron for this filter screen family.

✓ Colour
Red screen element.

✓ Screen Surface Area
185cm² screen surface area.

✓ Discharge
133lpm discharge.

✓ Working Pressure
800kPa working pressure.

✓ Body Material
PPC body.

✓ Screen Material
INOX screen.

✓ Cleaning / Flushing
Directional nozzle plate and hydrocyclonic movement help move debris toward the flushing valve. Periodic opening of the flushing valve releases dirt from the debris area.

✓ Applications
Suitable for filtration of sand and inorganic particles in drip, micro jet and sprinkler systems.

✓ Installation Note
Confirm connection type, flow direction, flushing valve access and operating pressure before installation.
