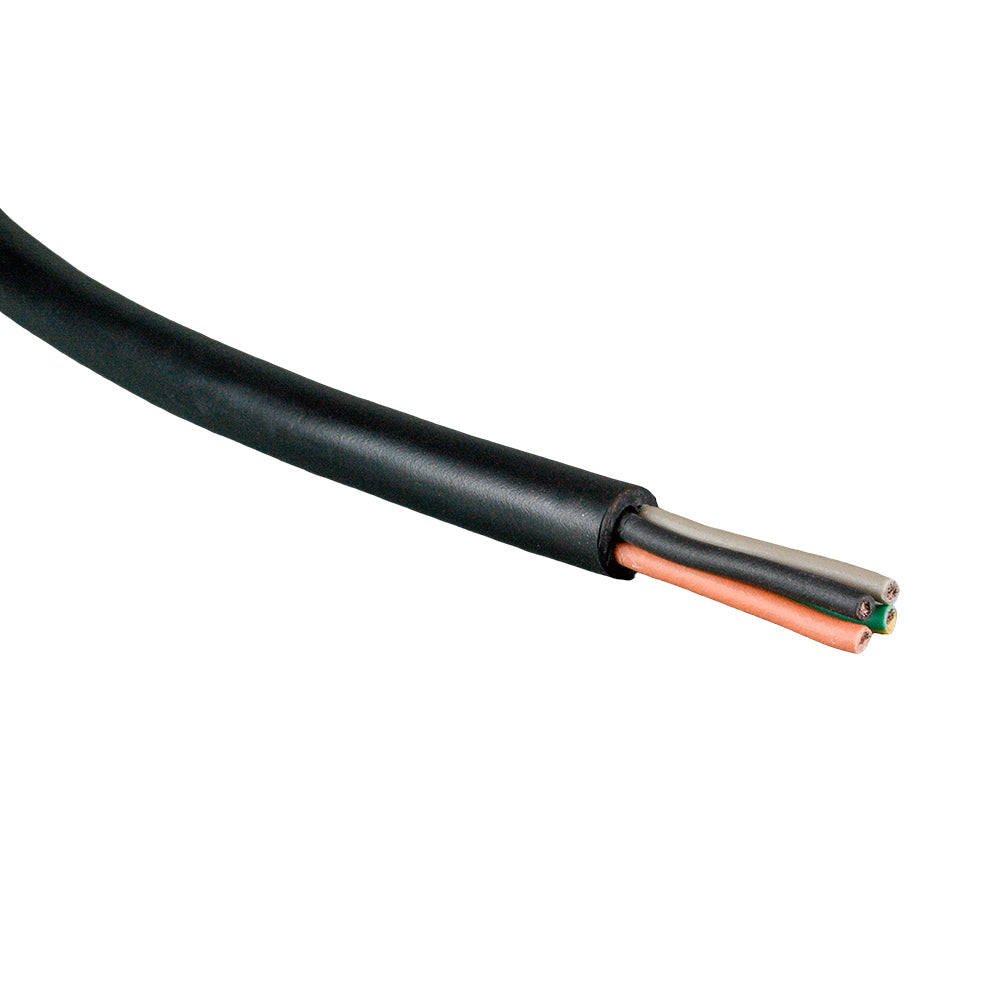

Wire Flex Rubber (3 core and earth) 1.5mm - Per Meter
Wire Flex Rubber (3 core and earth) 1.5mm - Per Meter

WIRE FLEX RUBBER 3 CORE AND EARTH

Heavy duty 0.6/1kV rubber flex cable in 3 core and earth configuration for suitable pumps, motors, site leads, wet environments and flexible power applications.

✓ 3 Core and Earth Cable
✓ 1.5mm² & 2.5mm² Options
✓ 0.6/1kV Voltage Rating
✓ Class 5 Tinned Copper Conductors
✓ UV, Oil and Weather Resistant
✓ Electrical Selection Required

Rubber Flex Cable Specifications

More Information
Product Specifications
Wire Flex Rubber (3 core and earth) 1.5mm - Per Meter
WIRE FLEX RUBBER 3 CORE AND EARTH
Wire Flex Rubber (3 core and earth) 1.5mm - Per Meter
Wire Flex Rubber (3 core and earth) 1.5mm - Per Meter WFR153CE
$3.91 /each
Wire Flex Rubber (3 core and earth) 2.5mm - Per Meter
Wire Flex Rubber (3 core and earth) 2.5mm - Per Meter WFR253CE
$5.95 /each

Elcon Aristoflex rubber flex cable is a heavy duty 0.6/1kV flexible power cable used for suitable pump, motor, generator, construction site, wet environment and temporary power applications. This 3 core and earth range provides a four-core cable configuration with a green/yellow earth core and three additional conductors.

The cable is constructed with Class 5 tinned copper conductors, EPR rubber insulation, an EPDM rubber inner sheath and a black CPE rubber outer jacket. It is designed for demanding flexible power applications, including wet or oily environments and selected submersible pump applications, subject to correct electrical selection and installation.

Rubber Flex Cable Specifications

✓ Product Type & Size
Elcon Aristoflex ARFM heavy duty rubber flex cable, 3 core and earth configuration, available in selected 1.5mm² and 2.5mm² options.

✓ Voltage Rating
0.6/1kV.

✓ Conductor
Class 5 tinned copper conductor to AS/NZS 1125 and IEC 60228.

✓ Insulation
Ethylene-propylene rubber (EPR) insulation.

✓ Inner Sheath
EPDM rubber inner sheath.

✓ Outer Jacket
Chlorinated polyethylene CPE rubber compound.

✓ Sheath Colour
Black.

✓ Core Colours
Green/yellow, brown, black and grey.

✓ Features
Submersible to 200m, suitable for fresh water, salt water and sewage / contaminated water, UV, sunlight, oil and weather resistant.

✓ Applications
Suitable for selected heavy duty flexible power applications including motors, generators, compressors, construction site leads, wet or oily environments and submersible pump applications, subject to correct electrical selection and installation.

✓ Selection Note
Select cable size, core count and installation method to suit the electrical load, equipment requirements, operating environment and applicable regulations. Electrical cable selection and installation should be confirmed by a licensed electrician or qualified electrical professional.
