RAIN HARVESTING OVERFLOW FLAP VALVE WITH VENTED SCREEN 90MM

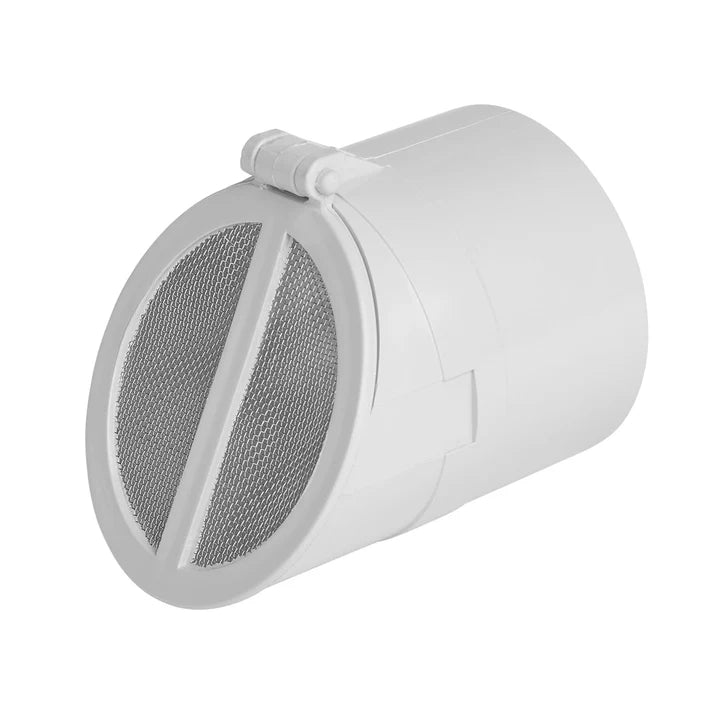

The Rain Harvesting 90mm overflow flap valve helps keep mosquitoes, frogs and other pests out of tank overflow pipework. The flap opens as water flows out and closes when the flow stops, while its screened vent allows air to pass.

✓ Connection: 90mm male spigot
✓ Fits a matching 90mm female socket
✓ Flap opens with outgoing water flow
✓ Screened vent allows air movement
✓ Install with the hinge at the top

Rain Harvesting Vented Flap Valve Installation & Specifications

More Information
Product Specifications
Rain Harvesting Overflow Flap Valve with Vented Screen 90mm
RAIN HARVESTING OVERFLOW FLAP VALVE WITH VENTED SCREEN 90MM
Rain Harvesting Overflow Flap Valve with Vented Screen 90mm
Rain Harvesting Overflow Flap Valve with Vented Screen 90mm RHOFV090
$16.58 /each

The Rain Harvesting 90mm overflow flap valve helps keep mosquitoes, frogs and other pests out of tank overflow pipework. The flap opens as water flows out and closes when the flow stops, while its screened vent allows air to pass.

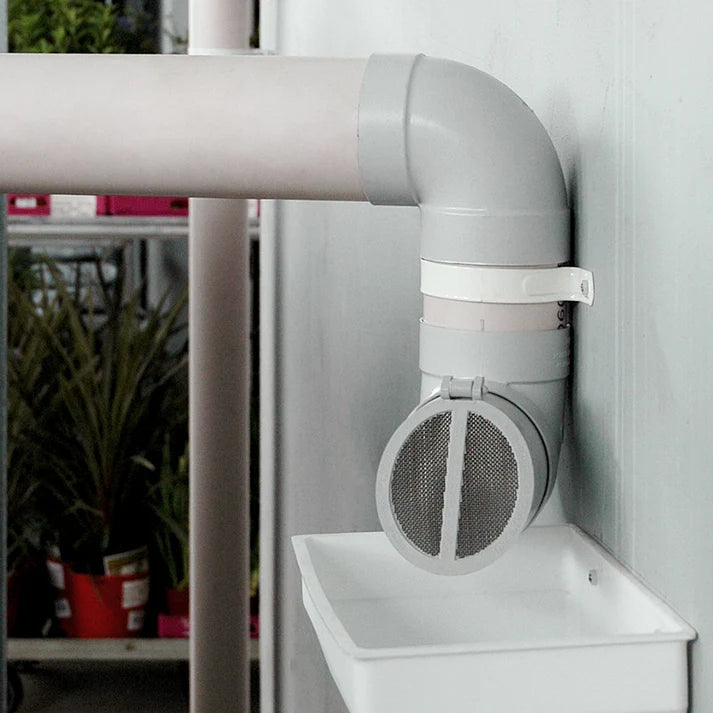

The 90mm male spigot fits into a matching female socket at a tank overflow outlet or horizontal overflow connection. Install with the hinge at the top so the flap can return to its closed position.

The screen can be hosed or brushed clean if debris builds up. Leave access to the flap and keep it free to move.

Rain Harvesting Vented Flap Valve Installation & Specifications

✓ Function
Self-closing overflow flap with a mosquito-proof vented screen.
Opens with outgoing water; closes when flow stops.
Vented screen permits air movement.

✓ Connections & Application
90mm male spigot.
Fits a matching 90mm female socket in tank overflow pipework.

✓ Dimensions
Overall length: 116mm.
Overall height: 100mm.
Overall width: 91mm.

✓ Installation
Fit to a matching overflow socket with the hinge at the top.
Secure with silicone or solvent-weld glue as specified in the guide.
Keep the flap clear so it can close freely.

✓ Maintenance
Hose or brush dirt and debris from the screen.
