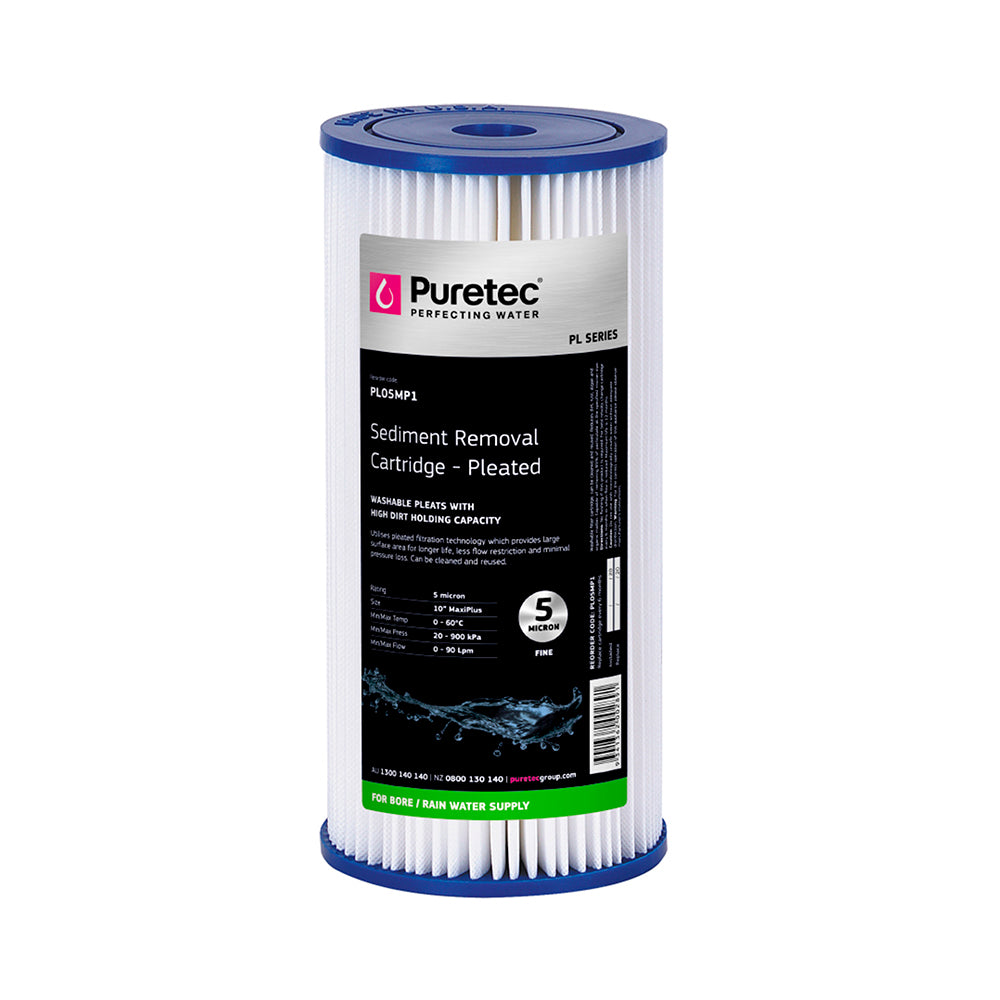

Puretec PL05MP1 pleated sediment cartridge with white folds and blue end caps.
Puretec PL05MP1 pleated sediment cartridge with white folds and blue end caps.
Puretec PL05MP1 pleated sediment cartridge with white folds and blue end caps.

PURETEC PL05MP1 PLEATED SEDIMENT CARTRIDGE 4.5" X 10" 5 MICRON

Puretec PL05MP1 is a 4.5" x 10" MaxiPlus pleated sediment replacement cartridge for compatible large-format filter housings. It has a 5 micron nominal rating and washable polyester media for higher flow sediment reduction.

✓ Replacement Cartridge Only
✓ MaxiPlus 4.5" x 10" Cartridge
✓ 5 Micron Nominal Rating
✓ Pleated Polyester Media
✓ Washable and Reusable
✓ 90 Lpm Flow Rate
✓ Confirm Housing Compatibility Before Ordering

Puretec PL Series Cartridge Specifications

More Information
Product Specifications
Puretec PL05MP1 pleated sediment cartridge with white folds and blue end caps.
PURETEC PL05MP1 PLEATED SEDIMENT CARTRIDGE 4.5" X 10" 5 MICRON
Puretec PL051 pleated sediment cartridge with white folds and blue end caps.
Puretec Cartridge PL051 Sediment Pleated 2.5" x 10", 5 Microns FLPUPL051
$37.11 /each
Puretec PL05MP1 pleated sediment cartridge with white folds and blue end caps.
Puretec Cartridge PL05MP1 Sediment Pleated 4.5" x 10" 5 Microns FLPUPL05MP1
$105.87 /each
Puretec PL05MP2 pleated sediment cartridge with white folds and blue end caps.
Puretec Cartridge PL05MP2 Sediment Pleated 4.5" x 20", 5 Microns FLPUPL05MP2
$176.01 /each

Puretec PL05MP1 is a MaxiPlus 4.5" x 10" pleated sediment replacement cartridge with a 5 micron nominal rating. It is designed for compatible large-format water filter housings where higher flow sediment, dirt and suspended particle reduction is required.

This cartridge uses washable non-woven polyester media and has a 90 Lpm flow rate. The pleated design provides high dirt holding capacity while the larger 4.5" diameter suits compatible MaxiPlus housings. This is a replacement cartridge only, not a complete filter housing or filtration system.

Puretec PL Series Cartridge Specifications

✓ Product Type & Model
Puretec PL05MP1 MaxiPlus pleated sediment replacement cartridge.

✓ Application
Designed for compatible large-format water filter housings where higher flow sediment, dirt and suspended particle reduction is required.

✓ Cartridge Size
MaxiPlus 4.5" x 10" cartridge.

✓ Cartridge Type
Pleated sediment cartridge.

✓ Filter Media
Non-woven polyester fabric.

✓ Micron Rating
5 micron nominal rating.

✓ Flow Rate
90 Lpm flow rate.

✓ Construction
Pleated polyester media around a polypropylene core with plastisol end caps.

✓ Temperature Rating
4.4°C to 51.7°C temperature rating. Protect from freezing.

✓ Component Type
Replacement cartridge only. Filter housing, bracket, valve, tubing and complete filtration system are not included.

✓ Maintenance
Washable and reusable in suitable applications. Replace or clean according to system requirements, water quality and usage, or sooner if flow reduces.

✓ Compatibility Note
Confirm the installed housing accepts a MaxiPlus 4.5" x 10" cartridge before ordering.
