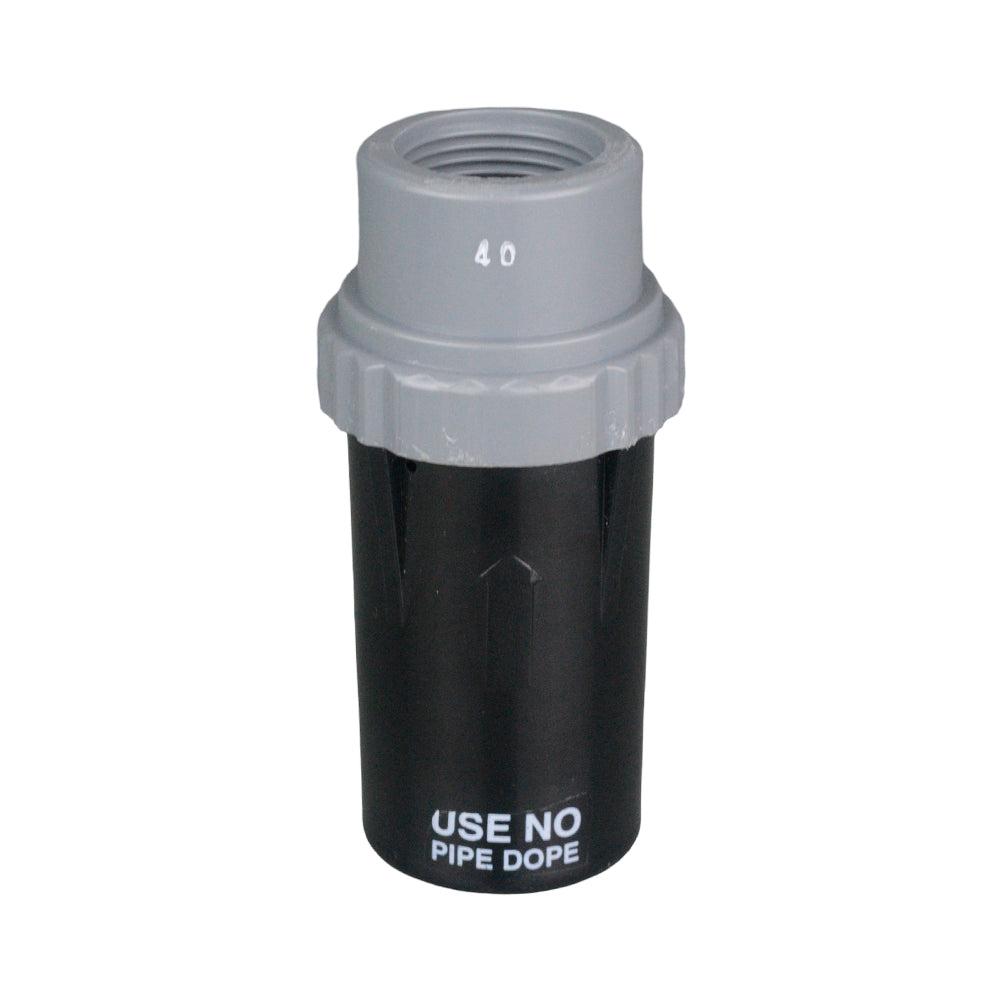

Toro inline pressure regulator with black body and grey cap marked 40.
Toro inline pressure regulator with black body and grey cap marked 40.
Toro inline pressure regulator with black body and grey cap marked 40.

PRESSURE REGULATING VALVE (TORO) 40 PSI (276 KPA)

This Toro pressure regulator reduces incoming water pressure to a factory-set downstream value. Its 40psi (276kPa) setting is selected by choosing this model rather than adjusting the valve in service. The 20mm female BSP inlet and outlet connect to matching fittings, while the sealed construction limits changes to the factory setting.

✓ Connections: 20mm (3/4") female BSP inlet & outlet
✓ Pressure: Nominal outlet pressure 40psi (276kPa); operating pressure range 70-1104kPa
✓ Factory-set pressure
✓ Operating flow range 1.9-45 L/min
✓ Tamper-proof sonically welded joints

Toro Pressure Regulating Valve Specifications

More Information
Product Specifications
Toro inline pressure regulator with black body and grey cap marked 40.
PRESSURE REGULATING VALVE (TORO) 40 PSI (276 KPA)
Toro inline pressure regulator with black body and grey cap marked 15.
Pressure Regulating Valve (toro) 15 psi (104 kPa) VVPRT15
$25.30 /each
Toro black inline pressure regulator marked 30.
Pressure Regulating Valve (toro) 30 psi (208 kPa) VVPRT30
$25.30 /each
Toro inline pressure regulator with black body and grey cap marked 35.
Pressure Regulating Valve (toro) 35 psi (242 kPa) VVPRT35
$25.30 /each
Toro inline pressure regulator with black body and grey cap marked 40.
Pressure Regulating Valve (toro) 40 psi (276 kPa) VVPRT40
$25.30 /each

This Toro pressure regulator reduces incoming water pressure to a factory-set downstream value. Its 40psi (276kPa) setting is selected by choosing this model rather than adjusting the valve in service. The 20mm female BSP inlet and outlet connect to matching fittings, while the sealed construction limits changes to the factory setting.

Chemical-resistant ABS body; EPDM diaphragm; stainless steel spring.

Pressure: Nominal outlet pressure 40psi (276kPa); operating pressure range 70-1104kPa.

Connections: 20mm (3/4") female BSP inlet & outlet.

Toro Pressure Regulating Valve Specifications

✓ Product Type & Application
This Toro pressure regulator reduces incoming water pressure to a factory-set downstream value. Its 40psi (276kPa) setting is selected by choosing this model rather than adjusting the valve in service. The 20mm female BSP inlet and outlet connect to matching fittings, while the sealed construction limits changes to the factory setting.

✓ Size & Connections
20mm (3/4") female BSP inlet & outlet

✓ Pressure & Flow
Nominal outlet pressure 40psi (276kPa); operating pressure range 70-1104kPa

✓ Construction & Features
Chemical-resistant ABS body; EPDM diaphragm; stainless steel spring.
Factory-set pressure
Operating flow range 1.9-45 L/min
Tamper-proof sonically welded joints

✓ Dimensions
Overall length 102mm; outside diameter 47mm
