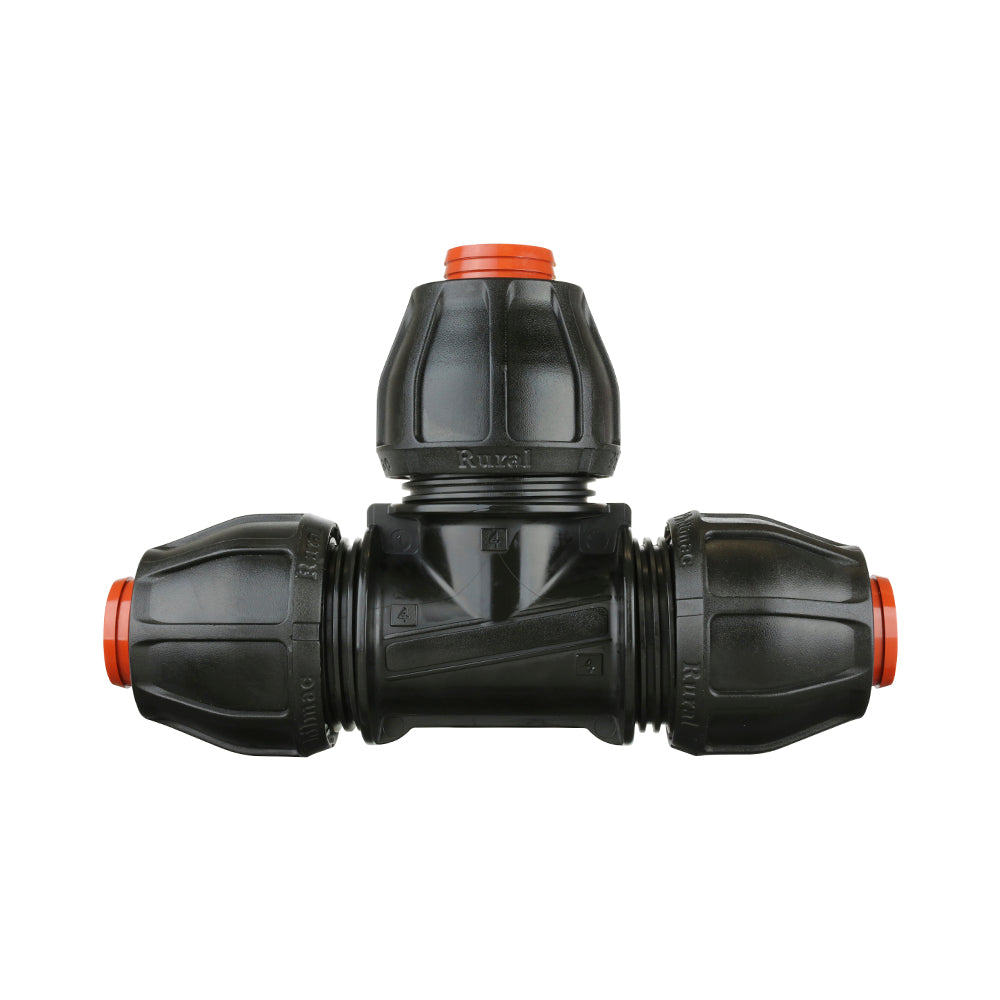

Compression Poly Rural Tee- Poly x Poly x Poly - 3/4" x 3/4" x 3/4"
Compression Poly Rural Tee- Poly x Poly x Poly - 3/4" x 3/4" x 3/4"

POLY COMPRESSION RURAL TEES POLY X POLY X POLY

Poly compression rural tees are used to create branch connections in Rural B Class red line poly pipe. Suitable for rural water supply, stock water, irrigation and farm water systems.

✓ Poly x Poly x Poly Rural Tee
✓ Suits Rural B Class Red Line Poly Pipe
✓ Creates a Branch Connection
✓ Insert Assembly Connection
✓ Maximum Operating Pressure 900kPa at 20°C
✓ 20 Year Warranty

Philmac Compression Rural Product Range

Philmac Compression Rural Brochure and Installation Guide

Compression Poly Rural Tee- Poly x Poly x Poly - 3/4" x 3/4" x 3/4"

Poly compression rural tees poly x poly x poly are used to create a branch connection between Rural B Class red line poly pipe in rural water supply, stock water, irrigation and general farm water systems. They provide rural compression connections on all three sides for connecting a main pipe run and branch line.

This range includes the listed 3/4" x 3/4" x 3/4", 1" x 1" x 1", 1-1/4" x 1-1/4" x 1-1/4", 1-1/2" x 1-1/2" x 1-1/2" and 2" x 2" x 2" sizes. Rural red line poly pipe and fittings are rated to a maximum operating pressure of 900kPa at 20°C. Confirm the rural pipe sizes, pressure and application requirements before ordering.

Philmac Compression Rural Product Range

Philmac Compression Rural Brochure and Installation Guide

✓ Product Type & Size
Poly compression rural tees poly x poly x poly, available in the listed 3/4", 1", 1-1/4", 1-1/2" and 2" equal tee sizes.

✓ Connection
Poly x poly x poly rural compression tee connection.

✓ Application
Used to create a branch connection between Rural B Class red line poly pipe.

✓ Pipe Compatibility
Suitable for Australian Rural B Class red line poly pipe.

✓ Maximum Operating Pressure
900kPa at 20°C.

✓ Installation
Rural compression fitting with insert assembly. Cut pipe square, fit the nut and grip ring, tap the insert fully into the pipe, position the insert in the fitting body and tighten the nut with a wrench.

✓ Material
High performance thermoplastic construction with UV, impact and corrosion resistance.

✓ Suitable Use
Suitable for rural water supply, stock water, irrigation and general farm water systems where the fitting size, pipe type, operating pressure and application suit the installation.

✓ Warranty
20 year warranty, subject to manufacturer terms and conditions.
