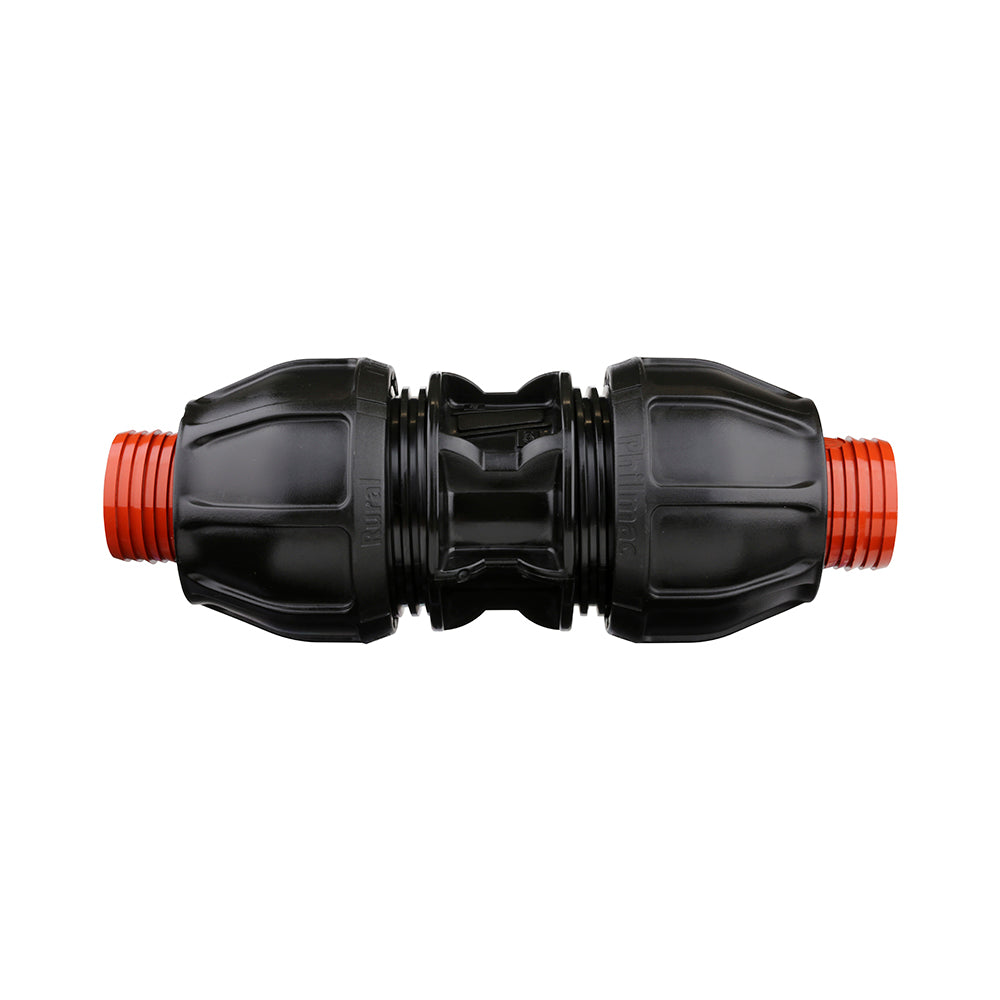

Compression Poly Rural Joiner- Poly x Poly - 1 1/4"
Compression Poly Rural Joiner- Poly x Poly - 1 1/4"

POLY COMPRESSION RURAL JOINER POLY X POLY 1-1/4"

Philmac Rural joiner 1 1/4" with two compression connections to join pipe ends in line. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in farm water supply and irrigation systems.

✓ Fitting System: Philmac Rural
✓ Connections: Two compression connections to join pipe ends in line
✓ Pipe: rural poly pipe
✓ Pressure Rating: 900kPa at 20°C.

Philmac Compression Rural Product Range
Philmac Compression Rural Brochure and Installation Guide

More Information
Product Specifications
Product Videos
Compression Poly Rural Joiner- Poly x Poly - 1 1/4"
POLY COMPRESSION RURAL JOINER POLY X POLY 1-1/4"
Compression Poly Rural Joiner- Poly x Poly - 3/4"
Compression Poly Rural Joiner- Poly x Poly - 3/4" COREJ34
$10.23 /each
Compression Poly Rural Joiner- Poly x Poly - 1"
Compression Poly Rural Joiner- Poly x Poly - 1" COREJ1
$13.20 /each
Compression Poly Rural Joiner- Poly x Poly - 1 1/4"
Compression Poly Rural Joiner- Poly x Poly - 1 1/4" COREJ114
$18.54 /each
Compression Poly Rural Joiner- Poly x Poly - 1 1/2"
Compression Poly Rural Joiner- Poly x Poly - 1 1/2" COREJ112
$22.04 /each
Compression Poly Rural Joiner- Poly x Poly - 2"
Compression Poly Rural Joiner- Poly x Poly - 2" COREJ2
$39.48 /each

Philmac Rural joiner for rural poly pipe, with two compression connections to join pipe ends in line. Tough thermoplastic construction resists impact, UV exposure and corrosion for long service life in farm water supply and irrigation systems.

The Rural connection uses an insert inside the pipe, with a grip ring and nut securing the joint. It can be disconnected and reconnected for alterations or maintenance.

Philmac Compression Rural Product Range
Philmac Compression Rural Brochure and Installation Guide

✓ Product Type & Size
Compression Poly Rural Joiner- Poly x Poly - 1 1/4"

✓ Connection
Poly x poly rural compression connection.

✓ Application
Used to connect two lengths of 1 1/4" rural poly pipe.

✓ Pipe Compatibility
Suitable for rural poly pipe.

✓ Maximum Operating Pressure
900kPa at 20°C.

✓ Installation
Rural compression fitting with insert assembly. Cut pipe square, fit the nut and grip ring, tap the insert fully into the pipe, position the insert in the fitting body and tighten the nut with a wrench.

✓ Material
High performance thermoplastic construction with UV, impact and corrosion resistance.

✓ Warranty
20 year warranty, subject to manufacturer terms and conditions.
