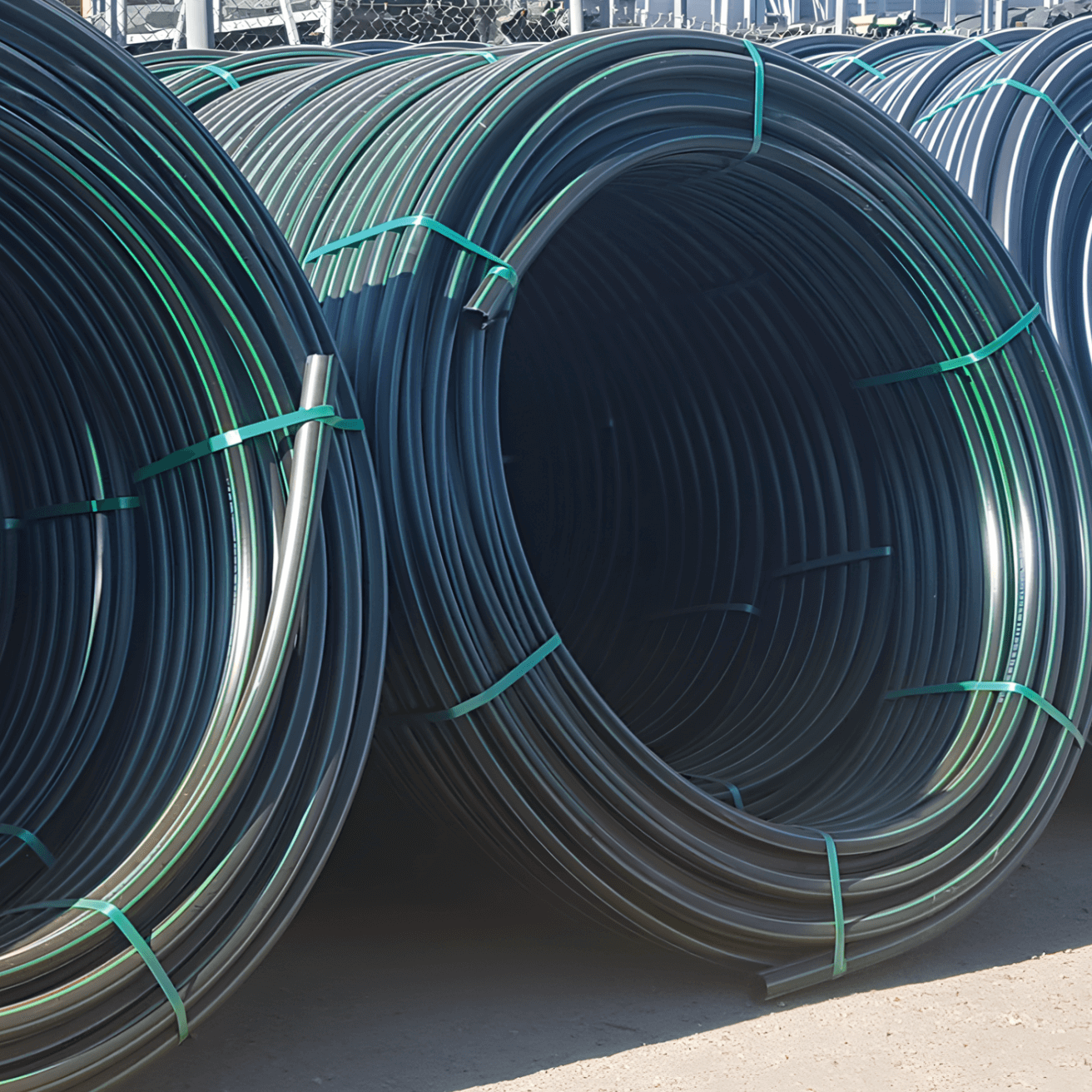

1 1/2" Green Line rural poly pipe rated to 800 kPa in a 150 metre coil, with an approximate 2.2mm wall thickness and 42mm outside diameter. Suitable for agricultural irrigation, stock watering, farm water transfer and other basic rural water-supply applications.
The 1 1/2" size is the nominal rural pipe size. Its actual outside diameter is approximately 42mm, which is important when selecting compatible fittings and connecting to an existing rural pipe system.
Lightweight and flexible, the HDPE pipe provides an easy-to-handle installation solution with resistance to corrosion and weathering. The bright green co-extruded line provides clear identification of the Green Line rural pipe range.
The pipe is designed for use with matching 1 1/2" rural compression fittings suitable for approximately 42mm outside-diameter pipe.
Prices given on this page are for supply within Western Australia. Please contact us for availability and pricing outside of WA.
For compression fittings to suit rural poly pipe click here.
Rural HDPE Poly Pipe Red & Green Line Dimensions
Rural poly pipe dimensions
Nominal sizes in inches. Approximate pipe dimensions in mm.
| Nominal size (inch) |
Green Line | Red Line | ||||
|---|---|---|---|---|---|---|
| Outside diameter |
Internal diameter |
Wall thickness |
Outside diameter |
Internal diameter |
Wall thickness |
|
| 3/4" | 21.6 | 18.8 | 1.4 | - | - | - |
| 1" | - | - | - | 28.9 | 25.3 | 1.8 |
| 1 1/4" | - | - | - | 36.0 | 31.6 | 2.2 |
| 1 1/2" | 42.0 | 37.6 | 2.2 | 43.2 | 38.0 | 2.6 |
| 2" | - | - | - | 57.6 | 50.8 | 3.4 |
Rural pipe uses nominal imperial sizing based on internal diameter. The nominal size is a reference and may differ from the actual internal diameter. Green Line and Red Line pipe can have different outside diameters for the same nominal size.
Internal diameters are approximate, calculated from outside diameter minus twice the wall thickness. Confirm the supplied pipe dimensions when selecting rural fittings.
