NETAFIM 15CM PRESS-FIT DROPPER WITH STABILISER

This Netafim dropper suspends a sprinkler or mister below low density poly supply pipe. Its flexible grey tube and included stabiliser keep the head hanging steadily.

✓ Drop length: 15cm
✓ Supply connection: Barb for low density poly pipe
✓ Head connection: Female press-fit

Netafim Press Fit Dropper & Anti Drain Specifications

Sprinkler Netafim 15cm Dropper Assembly w/ stabiliser

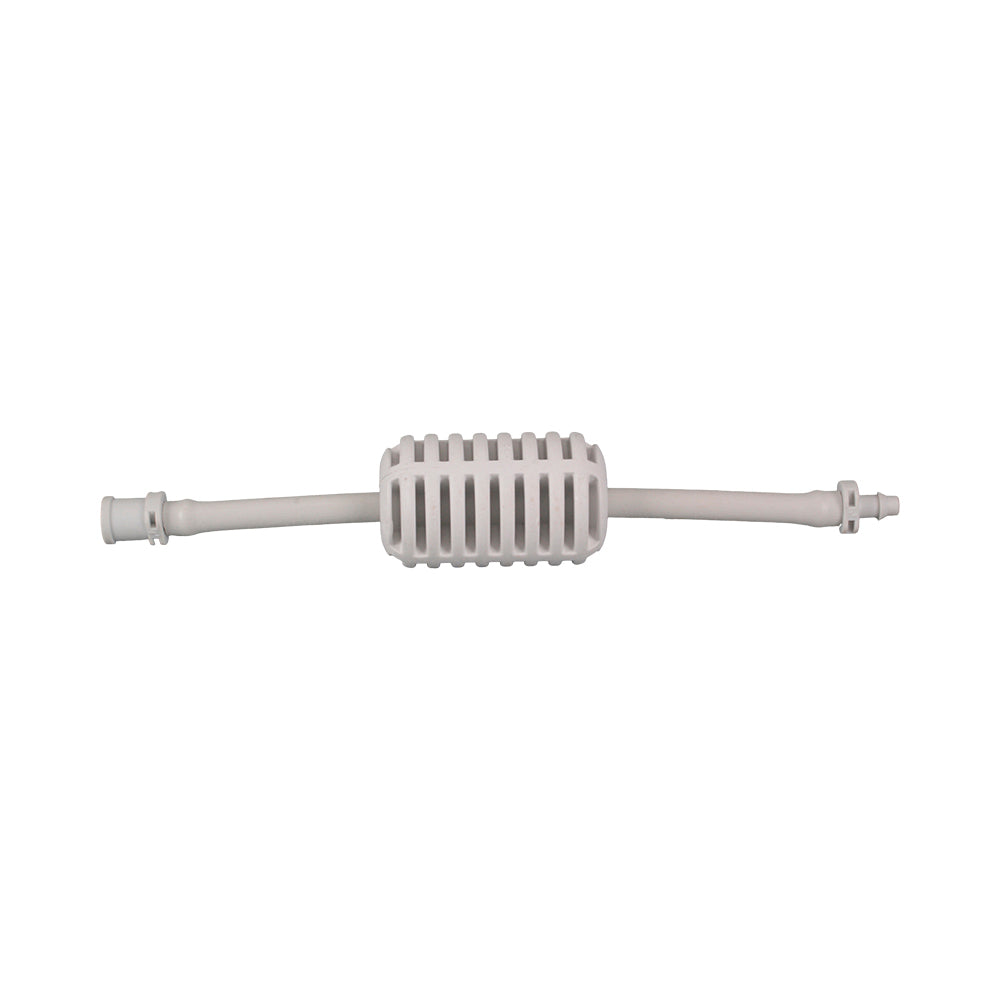

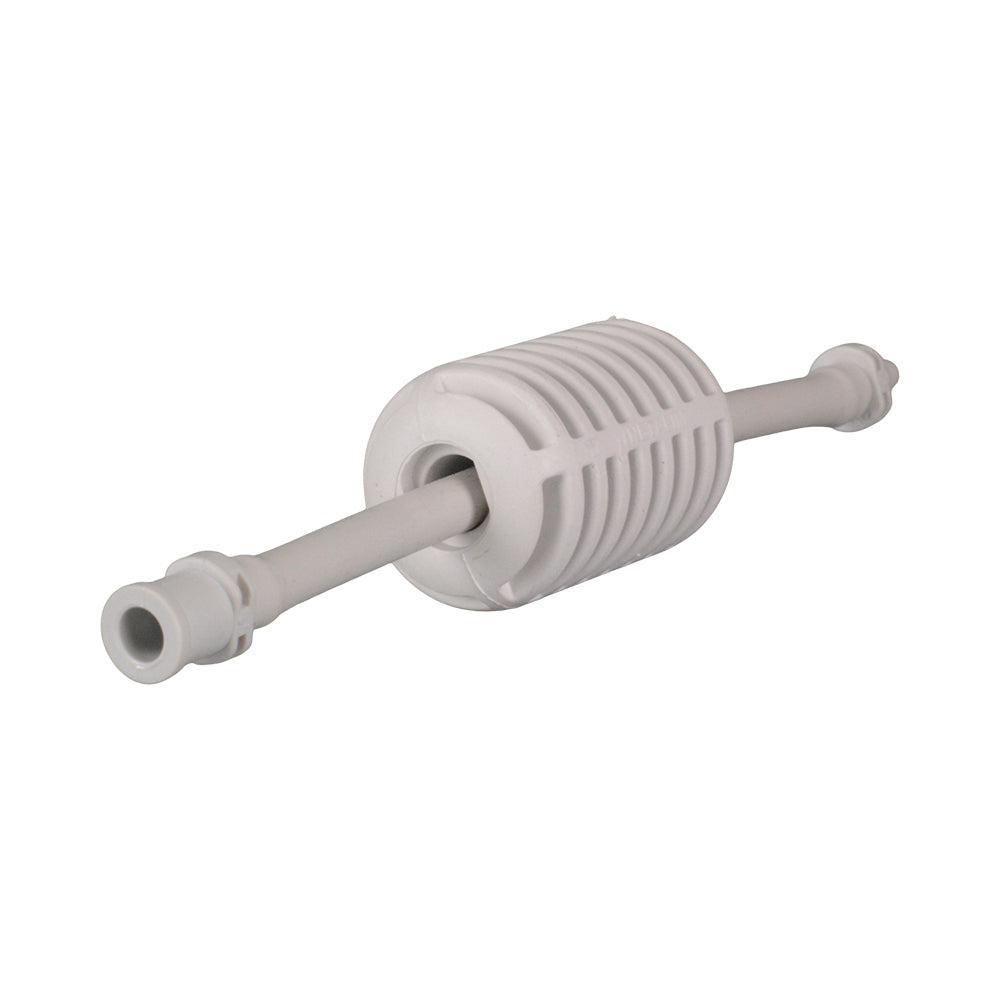

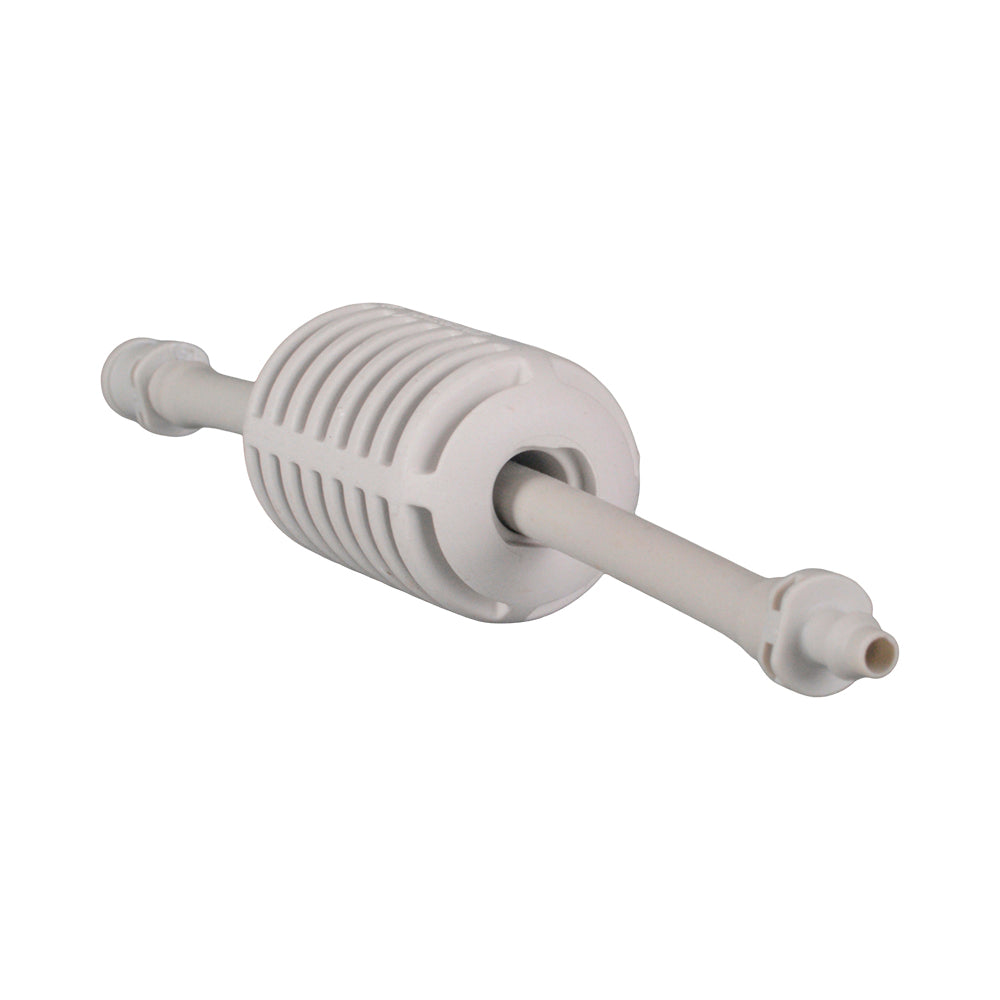

The Netafim 15cm dropper assembly hangs a compatible overhead sprinkler or mister below the supply pipe. It includes a grey SSPE tube, supply barb, female press-fit connector and stabiliser.

The barbed supply connection pushes into a suitable punched hole in low density poly pipe. At the lower end, the head's male press-fit inlet pushes into the female connector. The stabiliser helps the sprinkler hang steadily rather than swing on the flexible tube.

The assembly suits matching press-fit heads such as CoolNet Pro and SpinNet. A separate male/female anti-drain valve can be fitted between compatible press-fit components to help prevent drainage after shutdown.

Netafim Press Fit Dropper & Anti Drain Specifications

✓ 15cm Dropper Assembly
15cm grey SSPE tube.
Tube inside diameter: 4mm.
Tube outside diameter: 6.5mm.
Includes supply barb, female press-fit connector and stabiliser.

✓ Connections & Installation
Supply end: Barbed connection into a suitable punched hole in low density poly pipe.
Head end: Female press-fit connector for a matching male head inlet.
Suspend with the head pointing down.

✓ Supplied Equipment
15cm tube, barbed supply connector, female press-fit head connector and stabiliser.

✓ Manufacturer Reference
Netafim 63000-003570.
