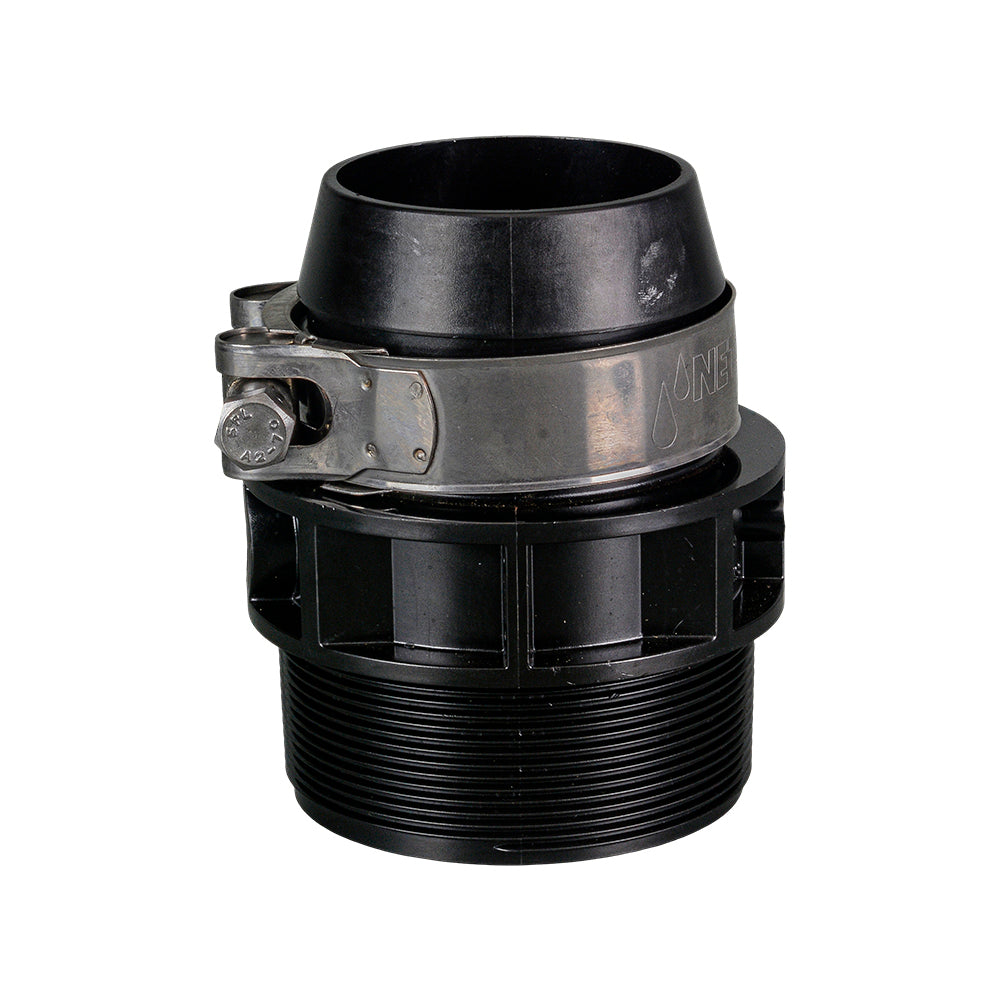

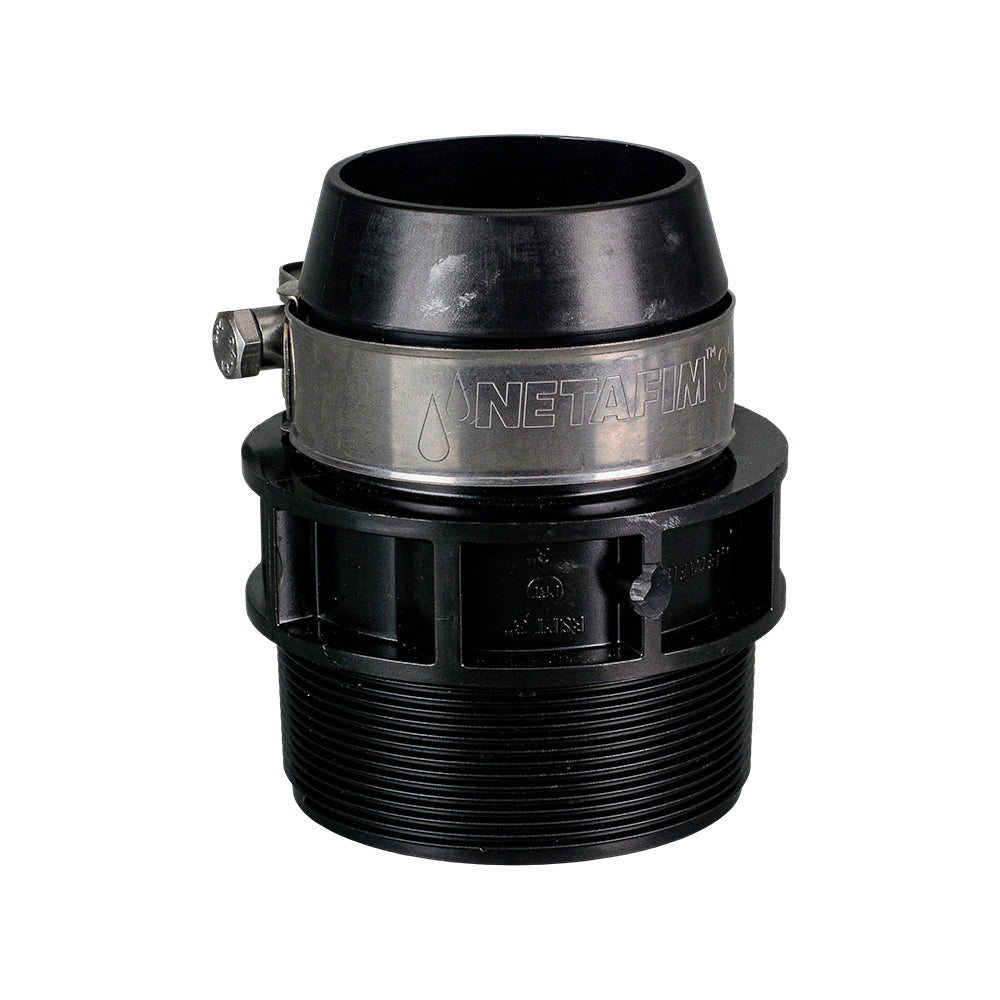

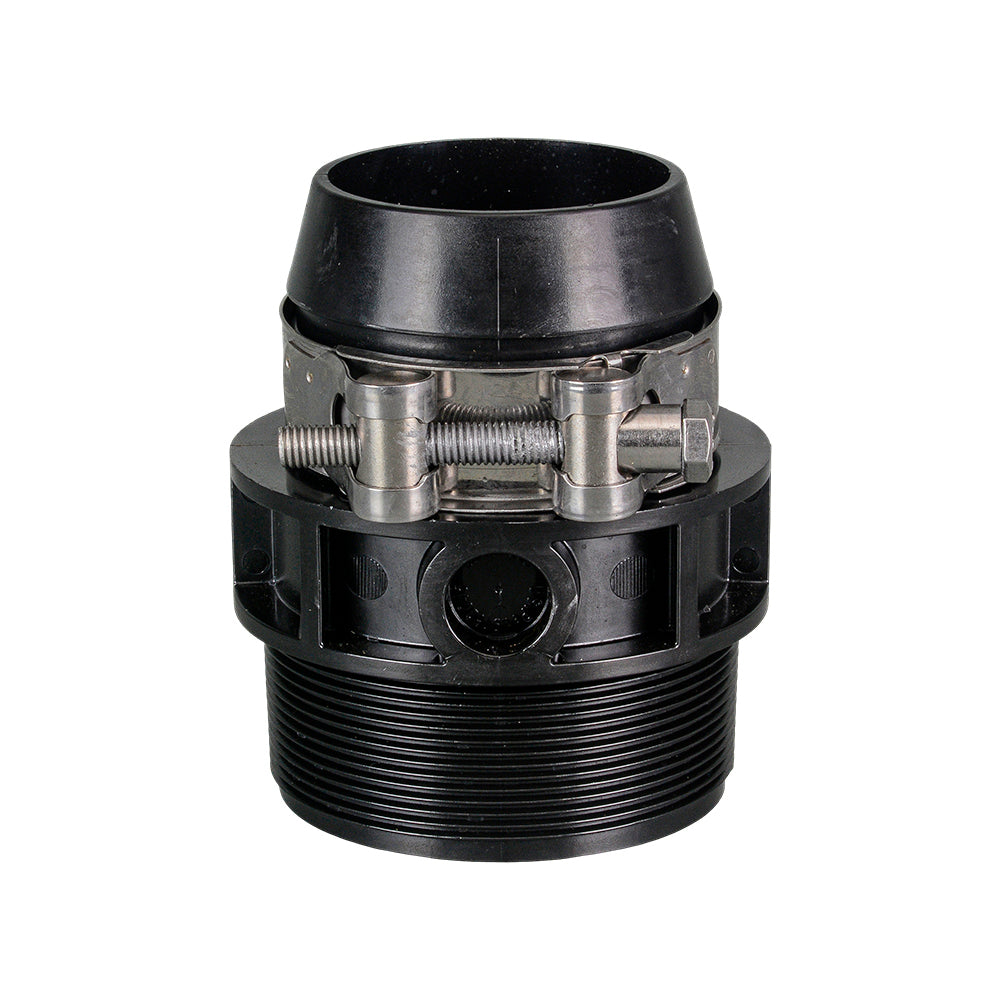

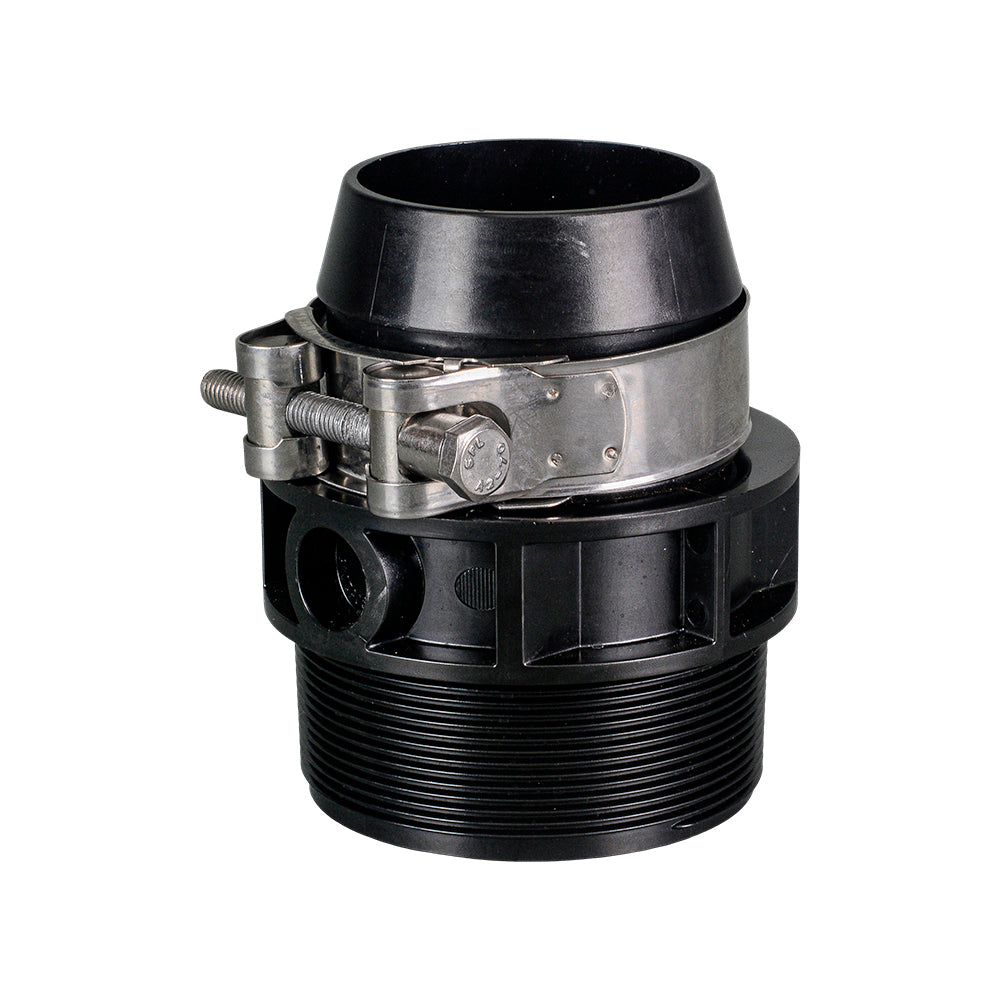

NETAFIM FLEXNET 3" MALE THREADED ADAPTOR

The Netafim FlexNet adaptor has a 3" male thread and an insert for 3" FlexNet pipe. The pipe slides over the insert and is secured with a rubber seal and external metal clamp.

✓ Threaded connection: 3" male
✓ Pipe connection: 3" FlexNet
✓ Rubber seal and metal clamp included

Netafim FlexNet Pipe & Fitting Specifications

More Information
Product Specifications
Drip Tape Netafim Flexnet Threaded Adapter 3" x 3" BSPM
NETAFIM FLEXNET 3" MALE THREADED ADAPTOR
Netafim FlexNet flexible irrigation pipe coil
Drip Tape Netafim Flexnet Pipe 3" 1/2" conn 0.3m, 100m ADTNFP80100
$1,282.82 /each
Netafim FlexNet flexible irrigation pipe coil
Drip Tape Netafim Flexnet Pipe 4" 1/2" conn 0.3m, 100m ADTNFP100100
$1,851.85 /each
Netafim FlexNet coupling with metal clamps
Drip Tape Netafim Flexnet Coupling 3" x 3" ADTNFC8080
$50.28 /each
Netafim FlexNet coupling with metal clamps
Drip Tape Netafim Flexnet Coupling 4" x 4" ADTNFC100100
$60.78 /each
Drip Tape Netafim Flexnet Threaded Adapter 3" x 3" BSPM
Drip Tape Netafim Flexnet Threaded Adapter 3" x 3" BSPM ADTNFTA8080
$34.97 /each
Drip Tape Netafim Flexnet Threaded Adapter 4" x 4" BSPM
Drip Tape Netafim Flexnet Threaded Adapter 4" x 4" BSPM ADTNFTA100100
$43.72 /each
Drip Tape Netafim Flexnet ASTM T/O Adapter 2.5/3" x 3" ADTNFTOA8080
$36.87 /each
Drip Tape Netafim Flexnet ASTM T/O Adapter 4" x 4" ADTNFTOA100100
$44.60 /each
Drip Tape Netafim Flexnet Plug 0.5in MI (Bag of 50)
Drip Tape Netafim Flexnet Plug 0.5in MI (Bag of 50) ADTNFP15
$39.15 /each

The Netafim FlexNet adaptor has a 3" male thread at one end and an insert for 3" FlexNet pipe at the other. It joins the supply pipe to a matching female threaded connection.

The fitting insert slides inside the FlexNet pipe until the pipe reaches the shoulder. A rubber seal sits in a groove around the insert. An external metal clamp tightens around the pipe to compress the seal and secure the connection.

Apply suitable thread-seal tape to the male thread before assembling the threaded connection.

Netafim FlexNet Pipe & Fitting Specifications

✓ Connections
3" male thread x 3" FlexNet insert connection.

✓ FlexNet Connection
Insert fits inside the pipe.
Rubber seal sits in the insert groove.
External metal clamp compresses the pipe onto the seal and retains the connection.

✓ Supplied Kit
Adaptor, rubber seal and metal clamp.

✓ FlexNet Assembly
Cut the pipe end square and slide the metal clamp over it.
Wet the inside of the pipe so it slides over the rubber seal without dislodging it.
Push the pipe fully onto the insert, up to the fitting shoulder.
Position the clamp against the shoulder with no gap, then tighten it to secure the pipe.

✓ Threaded Joint
Use suitable thread-seal tape on the male thread.

✓ Manufacturer Reference
Netafim 43040-018200.
