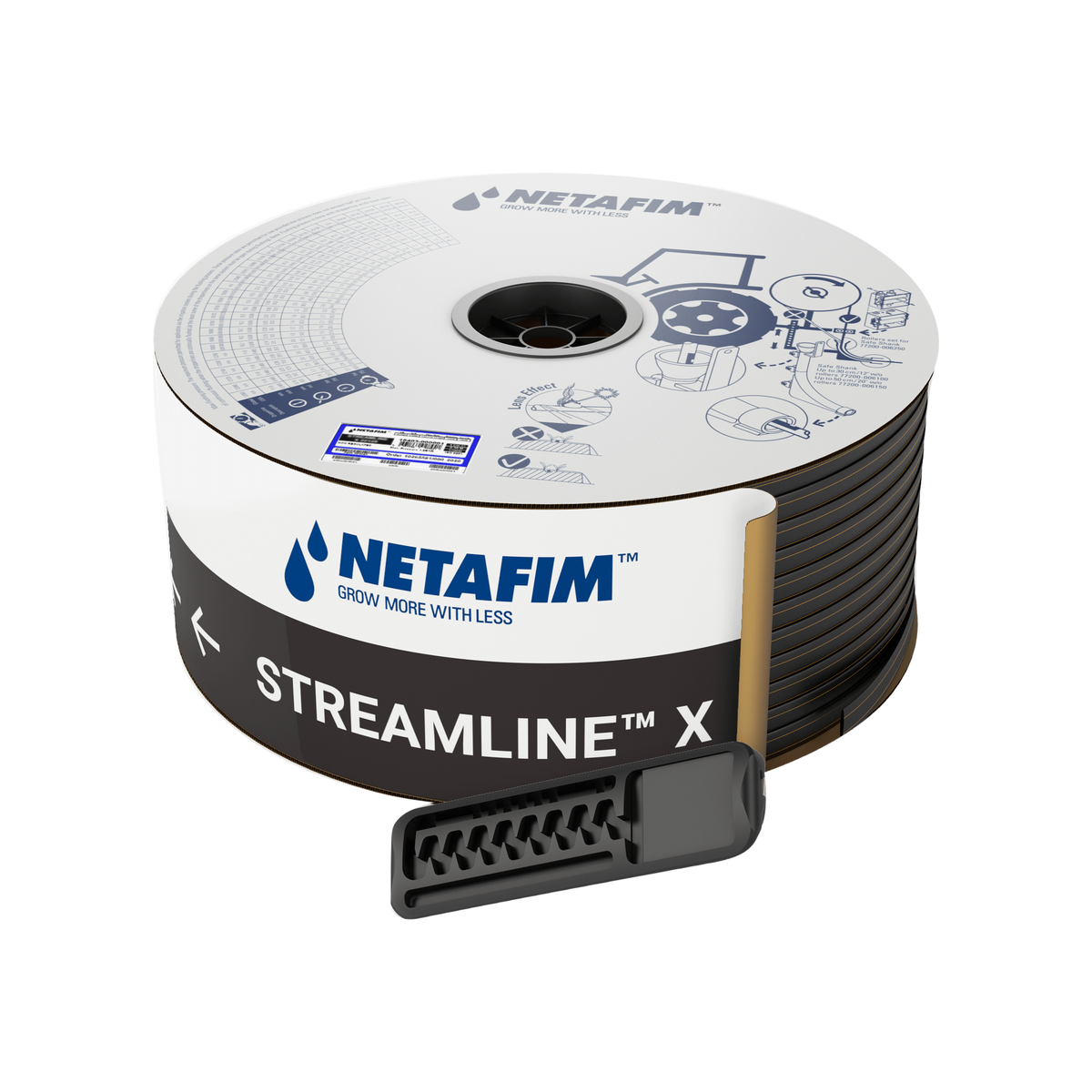

Netafim Streamline X is thin-wall drip tape for watering crop rows through regularly spaced built-in drippers. Both stocked versions are supplied in 2600m coils for cutting into individual laterals.
The 20cm spacing version delivers 1.05 litres per hour per dripper at 100kPa pressure. Its maximum continuous run is 108m on flat ground at 100kPa inlet pressure, allowing 10% flow variation.
The 25cm spacing version delivers 1.6 litres per hour per dripper at 100kPa pressure. Its calculated maximum continuous run is 96m on flat ground at approximately 100kPa inlet pressure, allowing 10% flow variation.
Run length changes with slope, dripper flow and spacing. The supplied coil length is divided into the required individual laterals.
The 16080 tubing has a 0.20mm wall and reinforced ribs to help resist damage during laying and retrieval. A broad dripper inlet and the turbulent TurboNet passage help reduce sediment entering and settling in the flow path. Streamline X is non-pressure compensated, so emitter output changes with pressure.
The straight ring coupling joins two tape ends. The barbed coupling connects tape to compatible 16mm barbed tubing, while the 15mm male threaded elbow turns the take-off through 90° and connects to a female threaded outlet. At each tape connection, the tape pushes over the fitting insert and the blue ring slides over the outside of the tape until it clicks into place.
Use filtered supply water and keep the pressure at the tape within its 120kPa working limit.
Netafim Streamline X Technical Specifications
Netafim Fast Ring Connector Specifications
