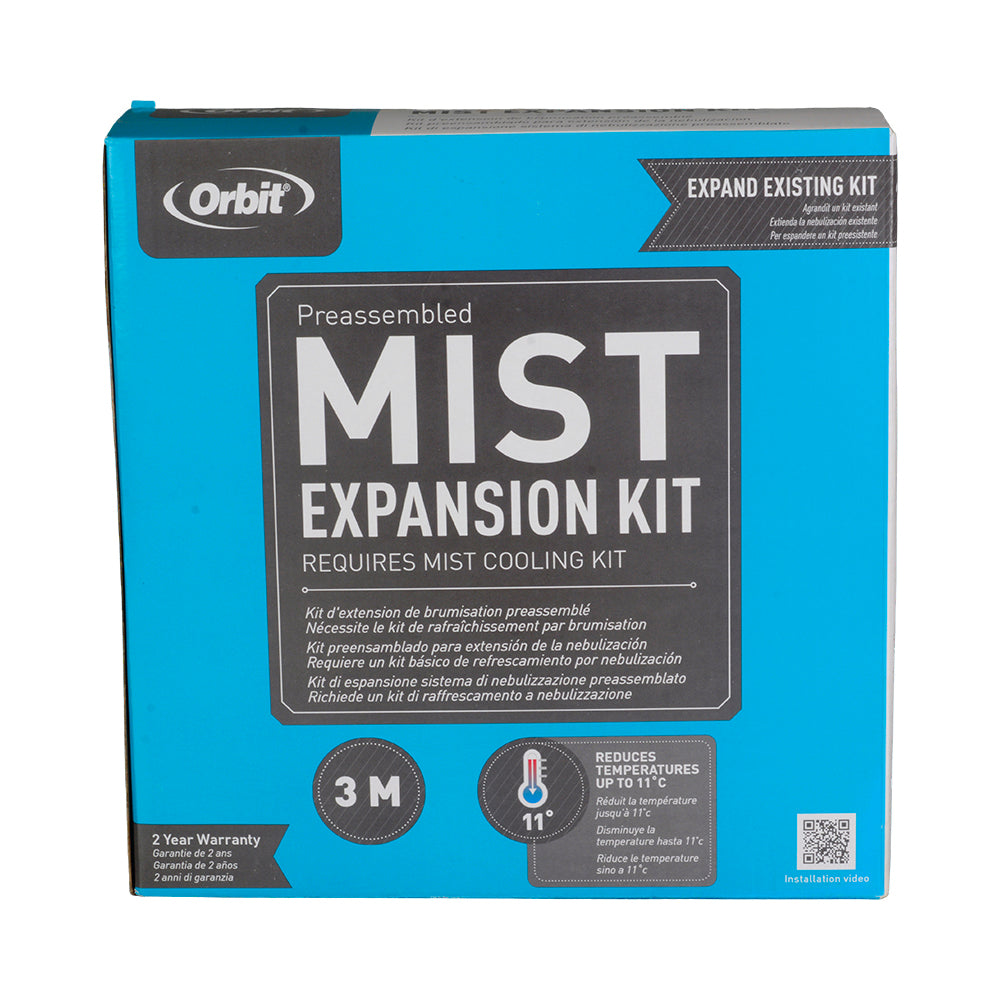

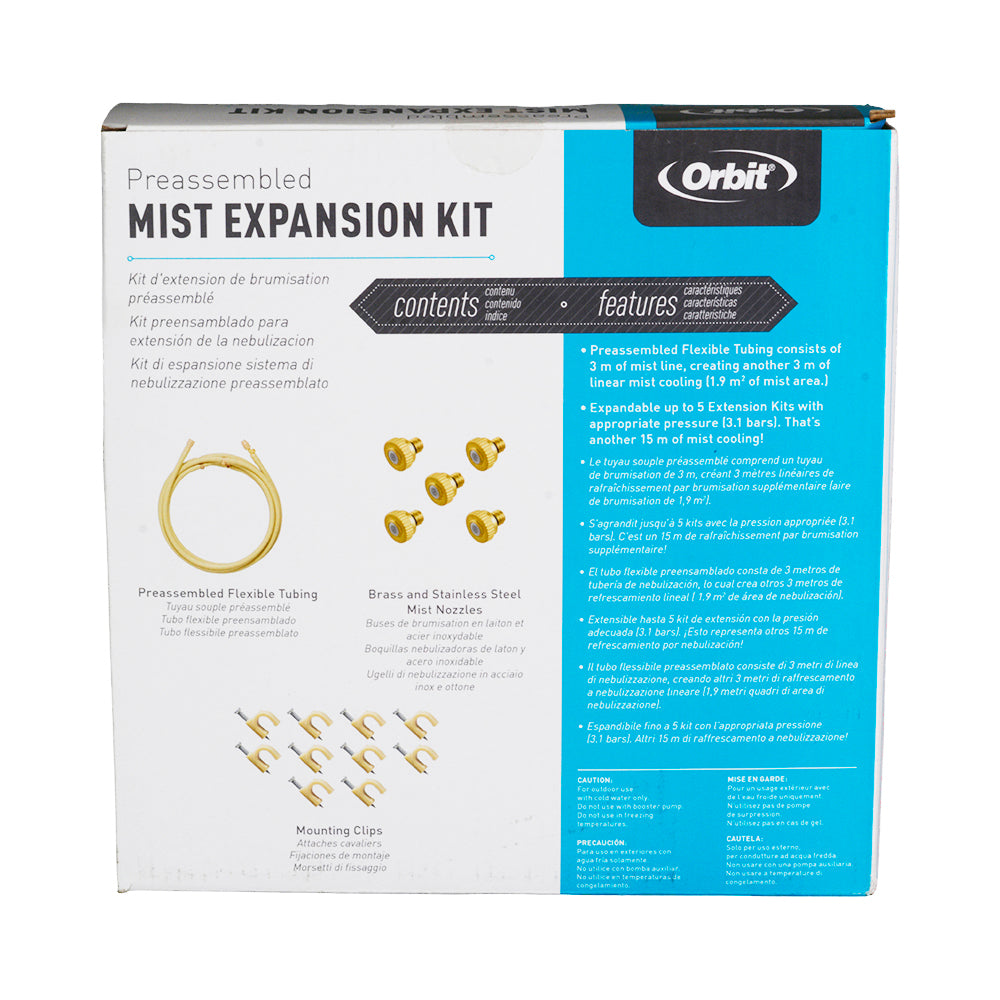

The Orbit 94168 extends an existing Orbit 94830 mist cooling kit by another 3m. Five brass and stainless-steel nozzles spread the cooling mist along the added line, with preassembled 9.5mm tubing and 10 mounting clips for securing it to the supporting structure.
Remove the end cap from the existing mist line and connect the extension in its place. The extension uses the main kit’s water connection and requires the main kit to operate. Additional extensions can increase the misting length to 18.7m with 31 nozzles, subject to the available water pressure and flow.
Flush the extended line before fitting the nozzles. Use the system outdoors with cold water and protect it from freezing. Do not use it with a booster pump.
