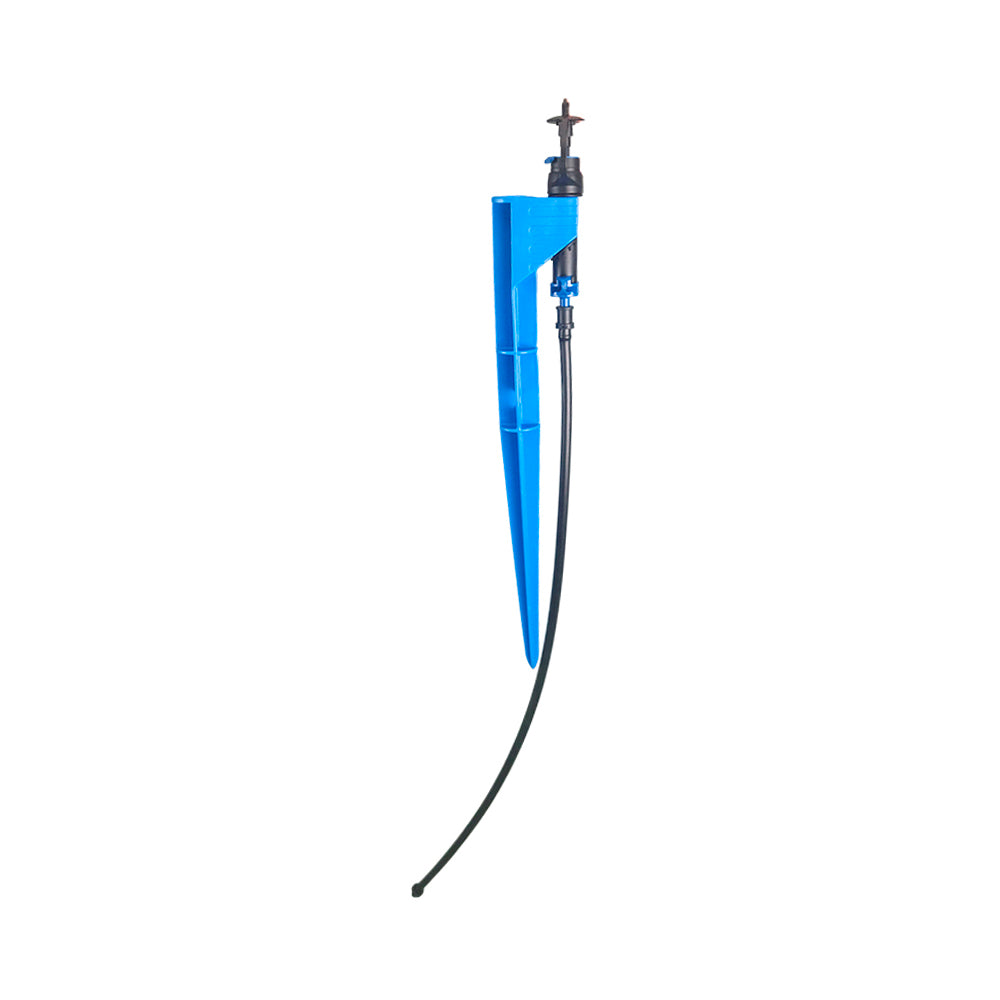

Netafim SuperNet sprinkler on blue stake with black supply tube
Netafim SuperNet sprinkler on blue stake with black supply tube
Netafim SuperNet sprinkler on blue stake with black supply tube

NETAFIM SUPERNET SRD 40L/H SPRINKLER ASSEMBLY

The Netafim SuperNet SRD uses pressure compensation to maintain its nominal 40L/h output. Its deflector concentrates water around young plants and can be removed as a wider wetted area is needed.

✓ Coverage at 20cm mounting height
With deflector: 1.8m diameter
Without deflector: 3.5m diameter

✓ Flow: 40L/h with blue nozzle
✓ Working pressure: 150-400kPa
✓ Supplied: Stake and 60cm tube

Netafim SuperNet SR/SRD Specifications

The Netafim SuperNet SRD uses pressure compensation to maintain its nominal 40L/h output. Its deflector concentrates water around young plants and can be removed as a wider wetted area is needed.

With the sprinkler mounted 20cm above the ground, the wetted diameter is 1.8m with the deflector and 3.5m without it. This allows the watering area to change as the plant grows.

Netafim SuperNet SR/SRD Specifications

✓ Nozzle
Colour: Blue.
Nominal flow: 40L/h.
Nozzle size: 1.28mm.

✓ Pressure
Working range: 150-400kPa.

✓ Wetted Diameter
With deflector: 1.8m.
Without deflector: 3.5m.
Both measured at 20cm mounting height.

✓ Assembly
Stake and 60cm tube included.
