TAVLIT SOLENOID MANIFOLD & FITTINGS

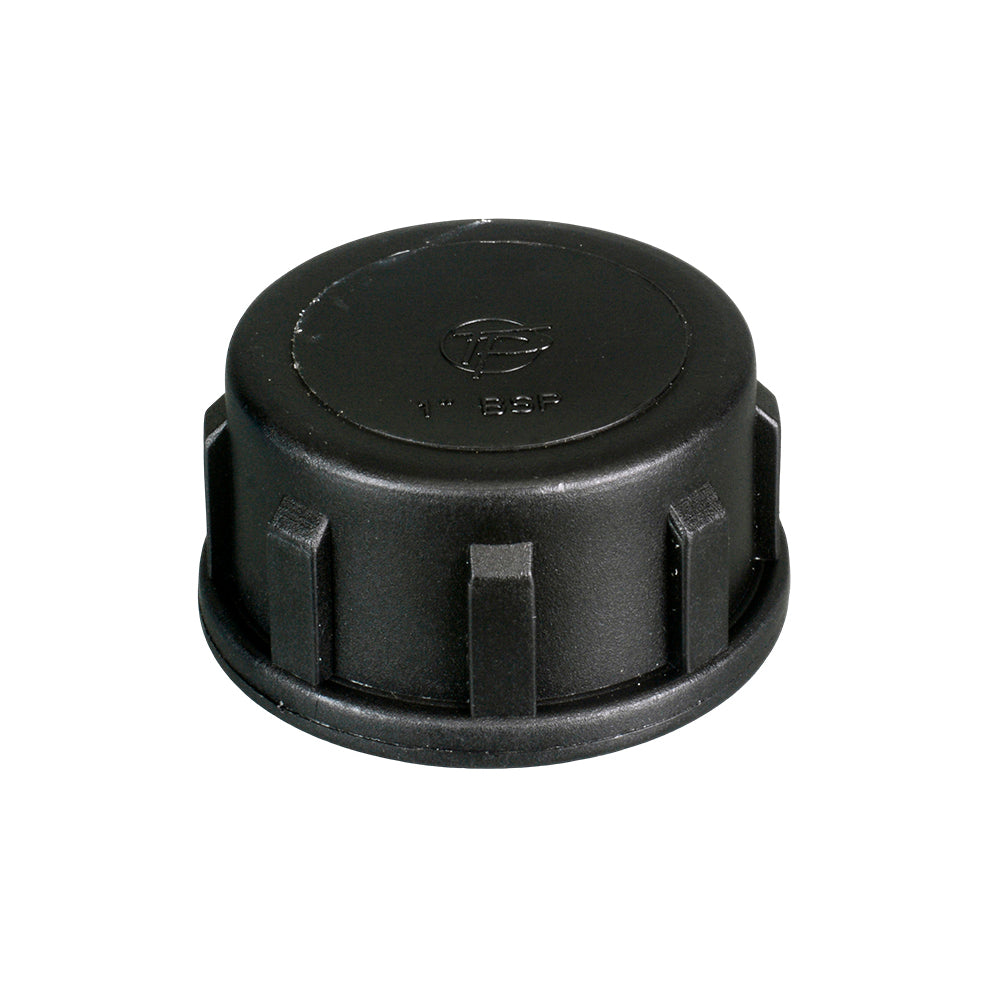

Tavlit 25mm poly cap closes the unused end of a manifold assembly. The cap provides a closed end for the assembly.

✓ Connections: 25mm female connection.
✓ Maximum pressure: 10bar (1000kPa), PN10.
✓ Required fittings: Use matching Tavlit manifold nipples at swivel-to-valve connections and Tavlit manifold end caps. Standard threaded nipples and caps will not provide the matching O-ring seal.

Tavlit Manifolds & Fittings Specifications

More Information
Product Specifications
Poly Tavlit Manifold Cap 25mm
TAVLIT SOLENOID MANIFOLD & FITTINGS
Poly Talvit Manifold 2 Port 25mm
Poly Talvit Manifold 2 Port 25mm MNTO2P025
$16.76 /each
Poly Tavlit Manifold 3 Port 25mm
Poly Tavlit Manifold 3 Port 25mm MNTO3P025
$25.21 /each
Poly Tavlit Manifold 4 Port 25mm
Poly Tavlit Manifold 4 Port 25mm MNTO4P025
$33.66 /each
Poly Tavlit Manifold Nipple 25mm
Poly Tavlit Manifold Nipple 25mm MNTON025
$3.40 /each
Poly Tavlit Manifold Cap 25mm
Poly Tavlit Manifold Cap 25mm MNTO01025
$2.94 /each
Poly Talvit Manifold Coupling Swivel x Swivel 25mm
Poly Talvit Manifold Coupling Swivel x Swivel 25mm MNTO02SS025
$7.31 /each
Poly Talvit Manifold Elbow Swivel x Swivel 25mm
Poly Talvit Manifold Elbow Swivel x Swivel 25mm MNTO08SS025
$8.21 /each

Tavlit 25mm poly cap closes the unused end of a manifold assembly. The cap provides a closed end for the assembly.

It closes an unused opening so the manifold can remain pressurised. The cap can be removed when the assembly is extended or serviced.

The poly cap is rated PN10.

Use matching Tavlit manifold nipples at swivel-to-valve connections and matching Tavlit manifold caps to close unused male ends. Standard threaded nipples and caps are not substitutes for these O-ring sealing components, even when the thread size matches. Keep the manifold, fittings, nipples and caps within the Tavlit system. Hand-tighten O-ring joints without thread tape.

Tavlit Manifolds & Fittings Specifications

✓ Product Type & Application
Cap.
Closes the unused end of a manifold assembly.

✓ Size & Connections
25mm female connection.

✓ Construction & Seals
Poly threaded cap.

✓ Maximum Pressure
10bar (1000kPa), PN10.

✓ Assembly & Compatibility
Use matching Tavlit manifold nipples at swivel-to-valve connections.
Close unused male ends with matching Tavlit manifold caps.
Standard threaded nipples and caps are not substitutes for the matching O-ring sealing components, even if the thread size matches.
Use Tavlit manifold fittings throughout; do not mix brands.
Hand-tighten O-ring joints without thread tape.
