Single Core Irrigation Wire Black 1.5 mm x 100 M
Single Core Irrigation Wire Black 1.5 mm x 100 M
Single Core Irrigation Wire Black 1.5 mm x 100 M
Single Core Irrigation Wire Black 1.5 mm x 100 M

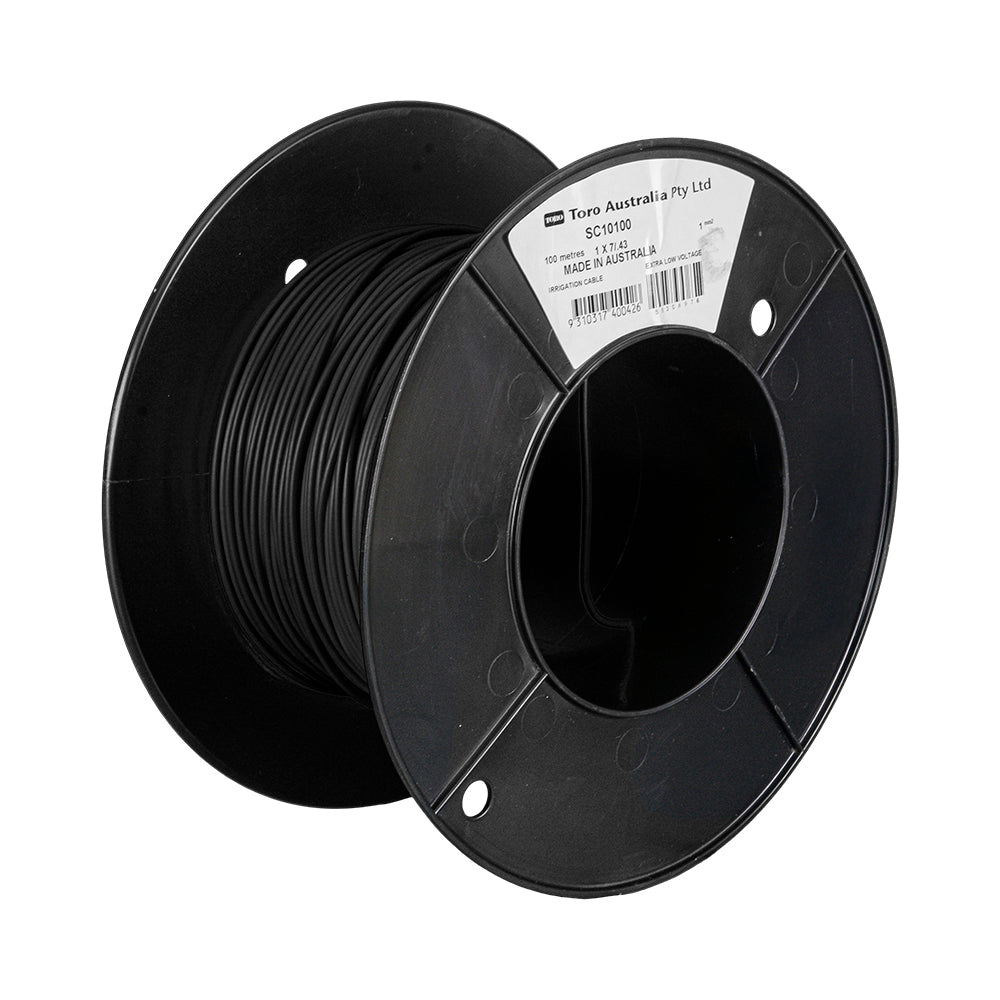

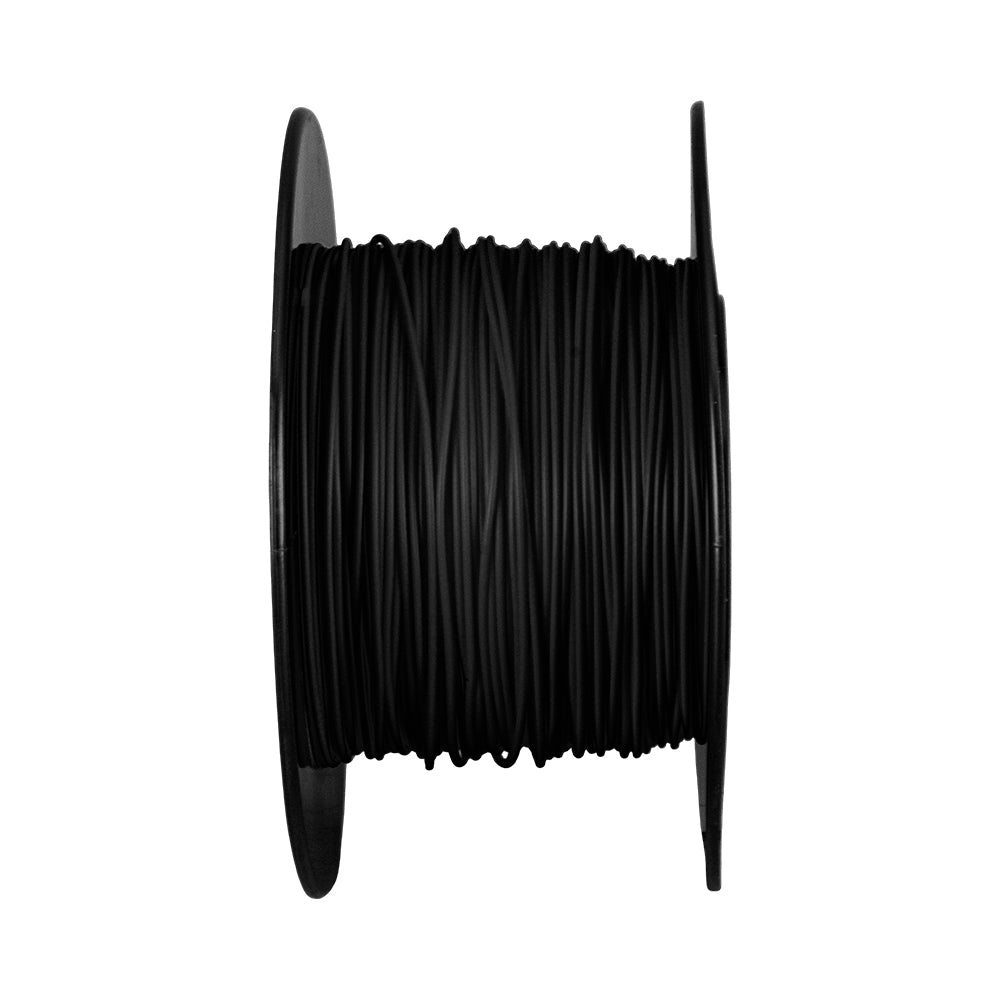

SINGLE CORE IRRIGATION WIRE BLACK 1.5MM² X 100M

Black 1.5mm² single core irrigation control wire supplied in a 100m coil for extra low voltage controller-to-solenoid valve wiring.

✓ Black Single Core Wire
✓ 1.5mm² Conductor Size
✓ 100m Coil Length
✓ Direct Burial Suitable
✓ For Irrigation Controllers and Solenoid Valves
✓ Not Suitable for Mains Power

Single Core Cable Specifications

More Information
Product Specifications
Single Core Irrigation Wire Black 1.5 mm x 100 M
SINGLE CORE IRRIGATION WIRE BLACK 1.5MM² X 100M
Single Core Irrigation Wire Green 1.0 mm x 100 M
Single Core Irrigation Wire Green 1.0 mm x 100 M WSCCO1100GRE
$59.86 /each
Single Core Irrigation Wire Red 1.0 mm x 100 M
Single Core Irrigation Wire Red 1.0 mm x 100 M WSCCO1100RED
$59.86 /each
Single Core Irrigation Wire Blue 1.0 mm x 100 M
Single Core Irrigation Wire Blue 1.0 mm x 100 M WSCCO1100BLU
$59.86 /each
Single Core Irrigation Wire Black 1.0 mm x 100 M
Single Core Irrigation Wire Black 1.0 mm x 100 M WSCBL1100
$59.86 /each
Single Core Irrigation Wire Yellow 1 mm x 100 M
Single Core Irrigation Wire Yellow 1 mm x 100 M WSCCO1100YEL
$59.86 /each
Single Core Irrigation Wire Green 1.0 mm x 500 M
Single Core Irrigation Wire Green 1.0 mm x 500 M WSCCO1500GRN
$287.24 /each
Single Core Irrigation Wire Red 1.0 mm x 500 M
Single Core Irrigation Wire Red 1.0 mm x 500 M WSCCO1500RED
$287.24 /each
Single Core Irrigation Wire Blue 1.0 mm x 500 M
Single Core Irrigation Wire Blue 1.0 mm x 500 M WSCCO1500BLU
$287.24 /each
Single Core Irrigation Wire Black 1.0 mm x 500 M
Single Core Irrigation Wire Black 1.0 mm x 500 M WSCBL1500
$287.24 /each
Single Core Irrigation Wire Green 1.5 mm x 100 M
Single Core Irrigation Wire Green 1.5 mm x 100 M WSCCO15100GRN
$77.71 /each
Single Core Irrigation Wire Red 1.5 mm x 100 M
Single Core Irrigation Wire Red 1.5 mm x 100 M WSCCO15100RED
$77.71 /each
Single Core Irrigation Wire Blue 1.5 mm x 100 M
Single Core Irrigation Wire Blue 1.5 mm x 100 M WSCCO15100BLU
$77.71 /each
Single Core Irrigation Wire Black 1.5 mm x 100 M
Single Core Irrigation Wire Black 1.5 mm x 100 M WSCBL15100
$77.71 /each
Single Core Irrigation Wire Yellow 1.50 mm x 100 M
Single Core Irrigation Wire Yellow 1.50 mm x 100 M WSCCO15100YEL
$77.71 /each
Single Core Irrigation Wire Green 1.5 mm x 500 M
Single Core Irrigation Wire Green 1.5 mm x 500 M WSCCO15500GRN
$380.06 /each
Single Core Irrigation Wire Red 1.5 mm x 500 M
Single Core Irrigation Wire Red 1.5 mm x 500 M WSCCO15500RED
$380.06 /each
Single Core Irrigation Wire Blue 1.5 mm x 500 M
Single Core Irrigation Wire Blue 1.5 mm x 500 M WSCCO15500BLU
$380.06 /each
Single Core Irrigation Wire Black 1.5 mm x 500 M
Single Core Irrigation Wire Black 1.5 mm x 500 M WSCBL15500
$380.06 /each
Single Core Irrigation Wire Yellow 1.50 mm x 500 M
Single Core Irrigation Wire Yellow 1.50 mm x 500 M WSCCO15500YEL
$380.06 /each
Single Core Irrigation Wire Green 2.5 mm x 500 M
Single Core Irrigation Wire Green 2.5 mm x 500 M WSCCO25500GRN
$619.04 /each
Single Core Irrigation Wire Red 2.5 mm x 500 M
Single Core Irrigation Wire Red 2.5 mm x 500 M WSCCO25500RED
$619.04 /each
Single Core Irrigation Wire Blue 2.5 mm x 500 M
Single Core Irrigation Wire Blue 2.5 mm x 500 M WSCCO25500BLU
$619.04 /each
Single Core Irrigation Wire Black 2.5 mm x 500 M
Single Core Irrigation Wire Black 2.5 mm x 500 M WSCBL25500
$619.04 /each

Single core black 1.5mm² irrigation control wire is supplied in a 100m coil for extra low voltage controller-to-solenoid valve wiring in automatic irrigation systems. It is suitable for direct burial irrigation wiring and can be used where a single insulated conductor is required for common wire or system wiring runs.

Select the conductor size and colour to suit the irrigation layout, controller station wiring and solenoid valve requirements. Use suitable waterproof connectors and sealant gel for all joins, and keep connections accessible where possible for future servicing and fault finding.

Single Core Cable Specifications

✓ Product Type & Size
Single core irrigation control wire, black, 1.5mm², supplied in a 100m coil.

✓ Application
For use in automatic irrigation systems to connect extra low voltage irrigation controller outputs to solenoid valves.

✓ Voltage Use
Extra low voltage irrigation systems only.

✓ Installation
Suitable for direct burial irrigation wiring.

✓ Conductor
Multi-strand plain copper wire. 1.5mm² conductor size with 7/0.50 strand construction.

✓ Insulation
UV stabilised polypropylene insulation to AS3808. Nominal insulation thickness: 0.6mm.

✓ Typical Properties
Amp rating: 16A. Electrical resistance at 20°C: 13.6 ohms/1000m. Nominal OD: 2.8mm. Approximate weight: 1.6kg/100m.

✓ Colour
Black.

✓ Coil Length
100m.

✓ Connection Note
All wire connections must be waterproof. Use suitable waterproof wire connectors and sealant gel to help protect joins from moisture and corrosion.

✓ Safety Note
Extra low voltage irrigation control wire only. Not suitable for mains power connection.
