ANTELCO CFD DOWNSPRAY MICRO SPRAYERS

The Antelco CFD brown 0.9mm downspray directs water downwards in a full-circle pattern for pots, nursery plants and garden beds. Adjusting the head height changes the area watered.

✓ Spray pattern: 360°, directed 45° downwards
✓ Flow: 28L/h at 100kPa
✓ Coverage: Approximately 0.5m diameter at 100kPa, mounted 250mm above soil
✓ Nozzle: 0.9mm, brown
✓ Supplied: Head only; stake and tube not included

Antelco CFd Downspray 45 Degree Spray Specifications

More Information
Product Specifications
Product Videos
Micro Spray CFD 0.9mm Brown head only 20 - 34 lph
ANTELCO CFD DOWNSPRAY MICRO SPRAYERS
Micro Spray CFD 1.0mm Blue head only 22 - 42 lph
Micro Spray CFD 1.0mm Blue head only 22 - 42 lph MSCFD10BL
$0.36 /each
Micro Spray CFD 1.0mm Blue head on stake with tube 45° Downspray
Micro Spray CFD 1.0mm Blue head on stake with tube 45° Downspray MSCFDBL45
$4.08 /each
Micro Spray CFD 0.9mm Brown head only 20 - 34 lph
Micro Spray CFD 0.9mm Brown head only 20 - 34 lph MSCFD09BR
$0.40 /each
Micro Spray CFD 0.8mm Black head only 15 - 20 lph
Micro Spray CFD 0.8mm Black head only 15 - 20 lph MSCFD08BK
$0.36 /each

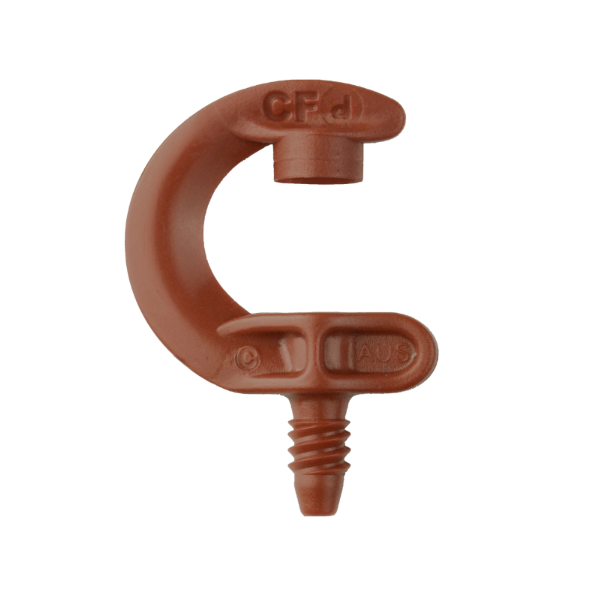

The brown Antelco CFd DownSpray uses a 0.9mm nozzle to direct water downwards at 45 degrees in a full-circle pattern. It suits pots, nursery plants and garden beds where water needs to land close to the plant.

Raising or lowering the head changes the area watered. Mounting it closer to the soil shortens the distance water travels through the air, which may reduce its exposure to wind.

At 100kPa, the brown nozzle delivers 28L/h with approximately 0.5m wetted diameter at a 250mm riser height. Flow changes with inlet pressure. This product is the spray head only; a stake and tube are not included.

Antelco CFd Downspray 45 Degree Spray Specifications

✓ Nozzle
Colour: Brown.
Nozzle diameter: 0.9mm.

✓ Spray Pattern
360-degree coverage.
Spray directed 45 degrees downwards.

✓ Flow & Coverage
Tested at 250mm riser height:
50kPa: 20L/h; 0.6m diameter.
100kPa: 28L/h; 0.5m diameter.
150kPa: 35L/h; 0.5m diameter.
200kPa: 41L/h; 0.5m diameter.
Raising or lowering the head changes the wetted area.

✓ Supply
Spray head only.
Stake and tube not included.
