HUNTER ACC2 A2M-600 6 STATION EXPANSION MODULE

Hunter ACC2 A2M-600 6 station expansion module for compatible ACC2 conventional controllers. Adds 6 conventional wired stations to A2C-1200 series controllers and allows modular expansion up to 54 stations.

✓ 6 Station ACC2 Expansion Module
✓ Model A2M-600
✓ For ACC2 Conventional Controllers
✓ Suits A2C-1200 Series Controllers
✓ Expands in 6 Station Increments
✓ Not for ACC2 Decoder Expansion
✓ 5 Year Hunter Warranty

Hunter ACC2 Controller Brochure
Hunter ACC2 Controller Quick Start Guide
Hunter ACC2 Controller Installation Guide
Hunter ACC2 Controller Specifications
Hunter ACC2 Controller Door Card
Hunter ACC2 Controller Wiring Card

Hunter Centralus Wi-Fi System Overview
Hunter A2C-WIFI Module Installation Guide

More Information
Product Specifications
Product Videos
Hunter ACC2 Conventional 6 Station Expansion Module (A2M-600)
HUNTER ACC2 A2M-600 6 STATION EXPANSION MODULE
Hunter Controller ACC2 Conventional Modular 12 Station Base Metal Cabinet (Max 54 Stations)
Hunter Controller ACC2 Conventional Modular 12 Station Base Metal Cabinet (Max 54 Stations) CNHACC2-12M
$2,415.40 /each
Hunter ACC2 Conventional 6 Station Expansion Module (A2M-600)
Hunter ACC2 Conventional 6 Station Expansion Module (A2M-600) CNHACC2-M06
$834.33 /each

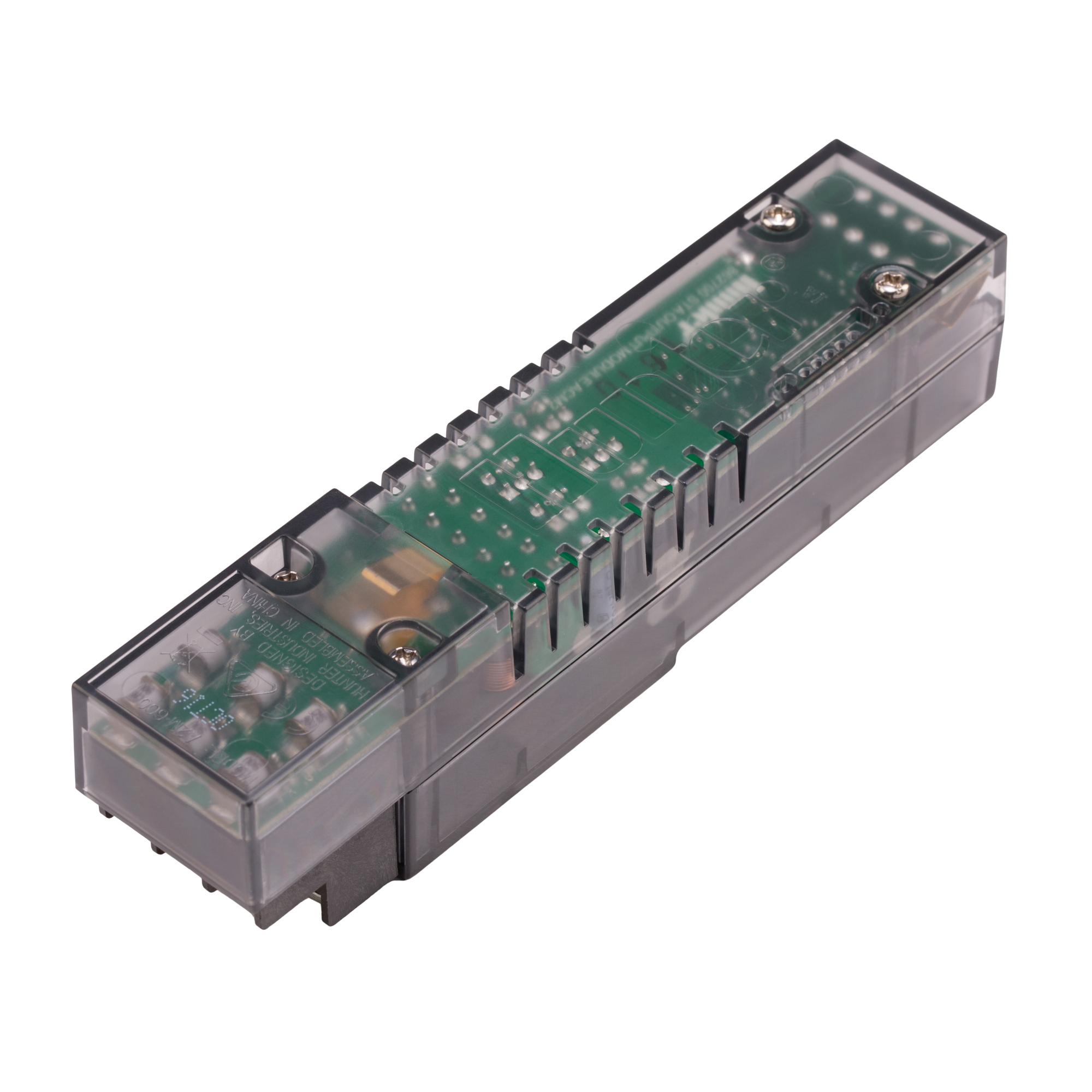

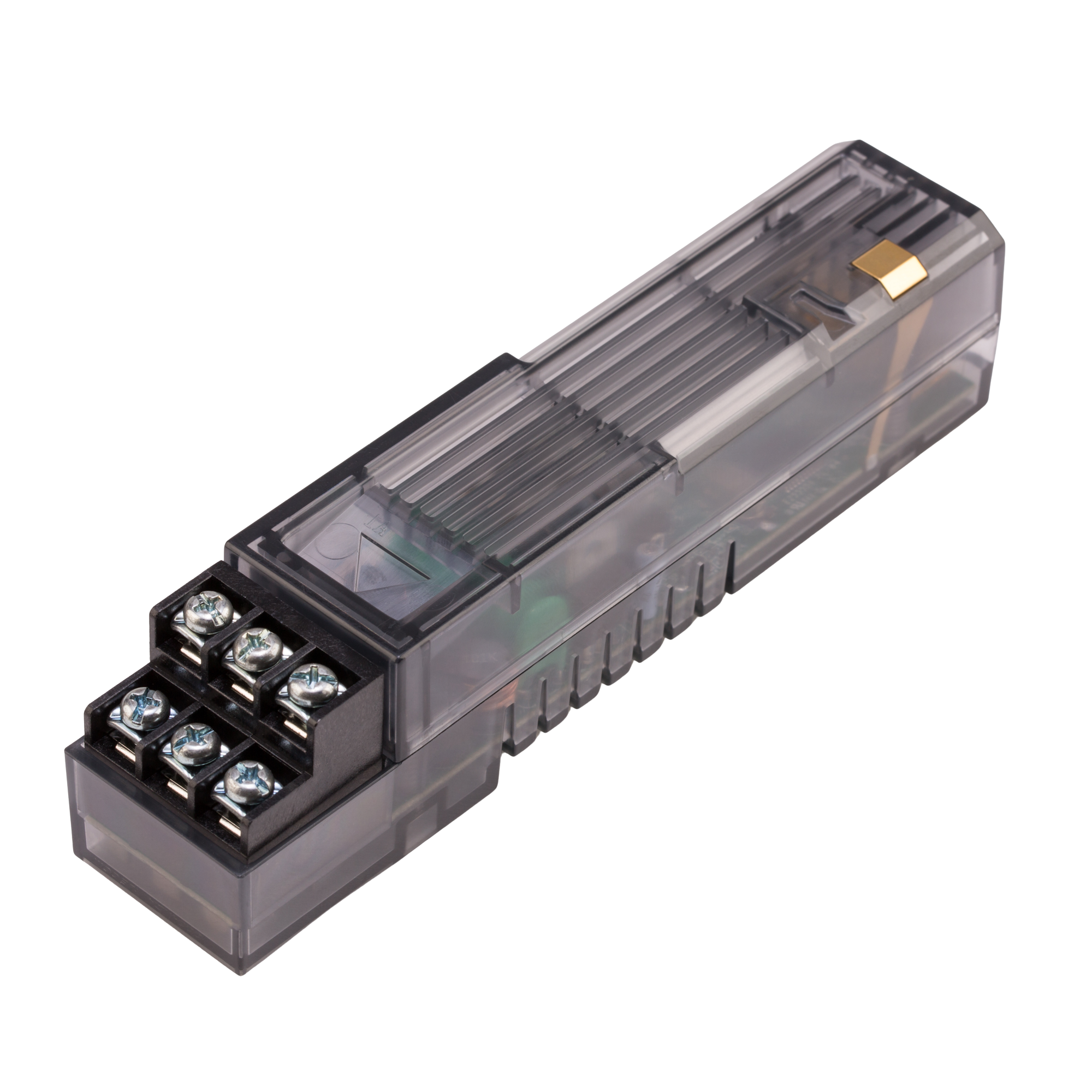

The Hunter ACC2 Conventional 6 Station Expansion Module is a plug-in output module used to add conventional wired stations to compatible ACC2 conventional controllers. It is designed for use with A2C-1200 series controllers.

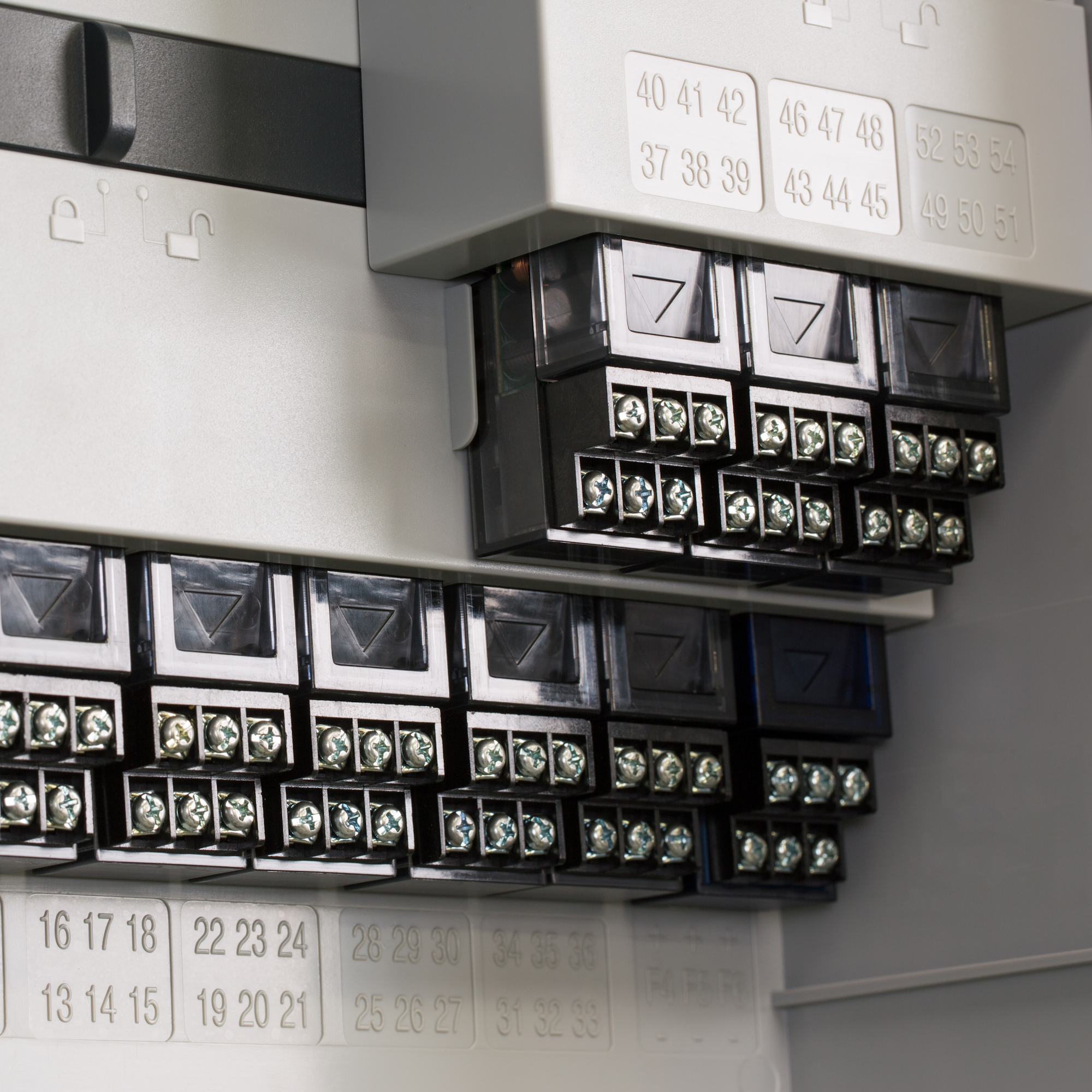

Each A2M-600 module adds 6 additional station outputs, allowing an ACC2 conventional 12 station base controller to be expanded in 6 station increments up to a maximum of 54 stations. It is used where additional conventional valve wiring capacity is required for larger irrigation systems.

The module is part of the ACC2 conventional controller platform and is not a decoder output module. ACC2 decoder systems use A2C-D75 modules and Hunter ICD decoders instead.

A2M-600 output modules include station output capability and extreme service lightning protection as part of the ACC2 conventional expansion system.

5 Year Hunter Warranty

Hunter ACC2 Controller Brochure
Hunter ACC2 Controller Quick Start Guide
Hunter ACC2 Controller Installation Guide
Hunter ACC2 Controller Specifications
Hunter ACC2 Controller Door Card
Hunter ACC2 Controller Wiring Card

Hunter Centralus Wi-Fi System Overview
Hunter A2C-WIFI Module Installation Guide

✓ Product Type & Model
Hunter ACC2 Conventional 6 Station Plug-In Expansion Module, model A2M-600.

✓ Application
Adds conventional wired station outputs to compatible Hunter ACC2 conventional controllers.

✓ Compatibility
For use with Hunter A2C-1200 series ACC2 conventional controllers.

✓ Station Expansion
Adds 6 additional conventional station outputs. ACC2 conventional controllers expand in 6-station increments up to 54 stations.

✓ Controller Platform
Designed for ACC2 conventional station wiring. This is not an ACC2 decoder output module and does not operate Hunter ICD decoders.

✓ Installation
Plug-in module installed inside a compatible ACC2 conventional controller. Controller power should be isolated before installation or servicing.

✓ Output & Protection
Station outputs rated 0.8A each. Extreme service lightning protection is standard on A2M-600 output modules.

✓ Warranty
5 Year Hunter Warranty.
