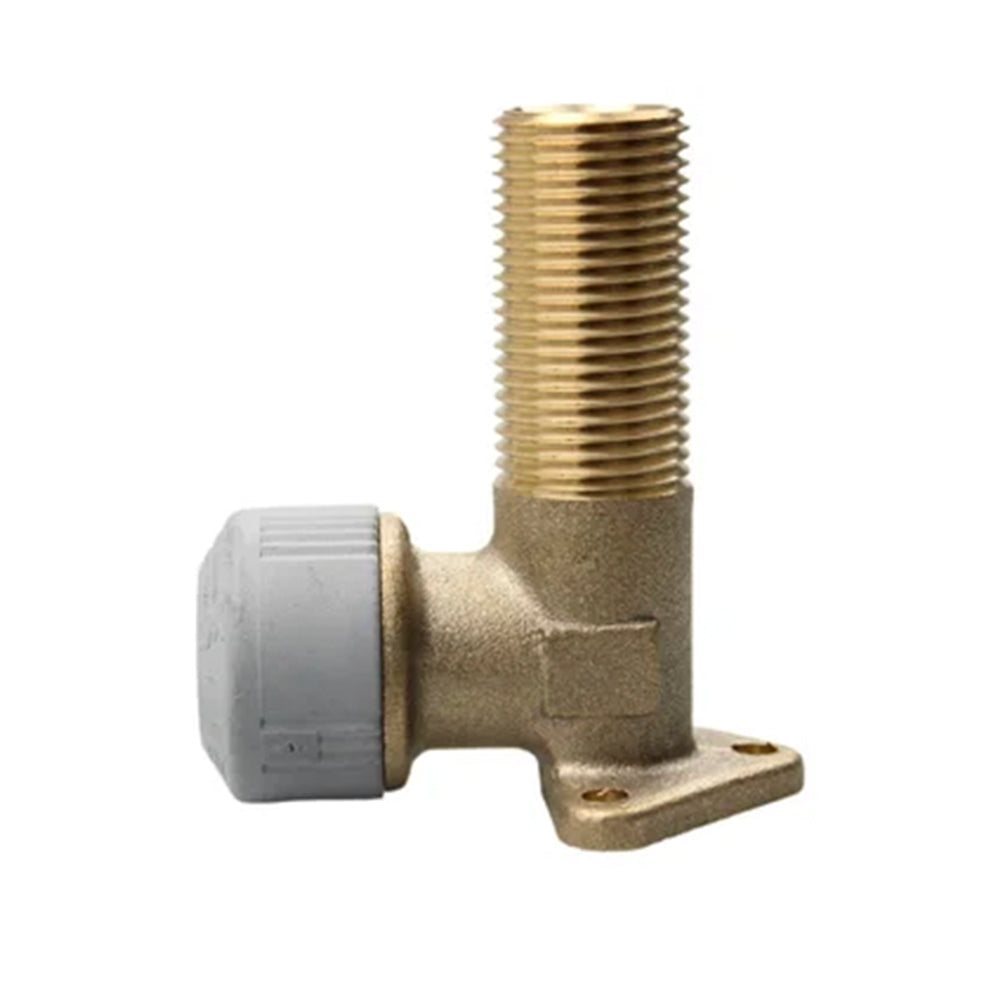

Hep2O/Waterlink Push Fit Wall Elbow 18mm x 1/2" MI Brass
Hep2O/Waterlink Push Fit Wall Elbow 18mm x 1/2" MI Brass

HEP2O / WATERLINK PUSH FIT MALE WALL ELBOW 18MM X 1/2" MI BRASS

HEP2O / WaterLink push fit male wall elbow with 18mm polybutylene pipe connection and 1/2" male BSP brass thread. Suitable for compatible hot and cold water plumbing installations.

✓ 18mm Push-Fit Connection
✓ 1/2" Male BSP Brass Thread
✓ Push-Fit x Male BSP Wall Elbow
✓ Suits HEP2O / WaterLink Pipe Systems
✓ Hot and Cold Water Reticulation
✓ Support Sleeve Required for Pipe Connection

Hep2O / Waterlink Fitting Installation Guide and Specifications

More Information
Product Specifications
Hep2O/Waterlink Push Fit Wall Elbow 18mm x 1/2" MI Brass
HEP2O / WATERLINK PUSH FIT MALE WALL ELBOW 18MM X 1/2" MI BRASS
Hep2O/Waterlink Push Fit Wall Elbow 18mm x 1/2" MI Brass
Hep2O/Waterlink Push Fit Wall Elbow 18mm x 1/2" MI Brass CRH2OPFWE1812MB
$13.79 /each

HEP2O / WaterLink push fit male wall elbow 18mm x 1/2" MI brass is used to connect compatible 18mm polybutylene pipe to a fixed 1/2" male BSP threaded outlet point. It is suitable for hot and cold water plumbing installations where a wall-mounted threaded connection is required.

This fitting combines an 18mm push-fit polybutylene pipe connection with a 1/2" male BSP brass thread. Support sleeves are required when connecting polybutylene pipe. Confirm pipe size, thread size, system compatibility and installation requirements before ordering.

Hep2O / Waterlink Fitting Installation Guide and Specifications

✓ Product Type & Size
HEP2O / WaterLink push fit male wall elbow, 18mm x 1/2".

✓ Connection
Push-fit x male BSP.

✓ Pipe Connection
18mm push-fit connection for compatible polybutylene pipe.

✓ Thread Connection
1/2" male BSP brass thread.

✓ System Compatibility
Suitable for compatible HEP2O / WaterLink polybutylene pipe systems.

✓ Catalogue Reference
Listed as HEP99.18 in the Hep2O catalogue and WLP99.18 in the WaterLink catalogue.

✓ Application
Suitable for hot and cold water plumbing installations where the pipe size, thread size, pressure rating and temperature rating suit the installation.

✓ Support Sleeve Requirement
Support sleeves are required when connecting polybutylene pipe.

✓ Installation Note
Use purpose-designed pipe cutters, ensure the pipe end is clean and free from burrs, insert the correct support sleeve, push the pipe fully into the fitting and tug back to confirm the grab ring has engaged.

✓ Compliance Note
Install in accordance with AS/NZS 3500 and relevant local plumbing requirements.
