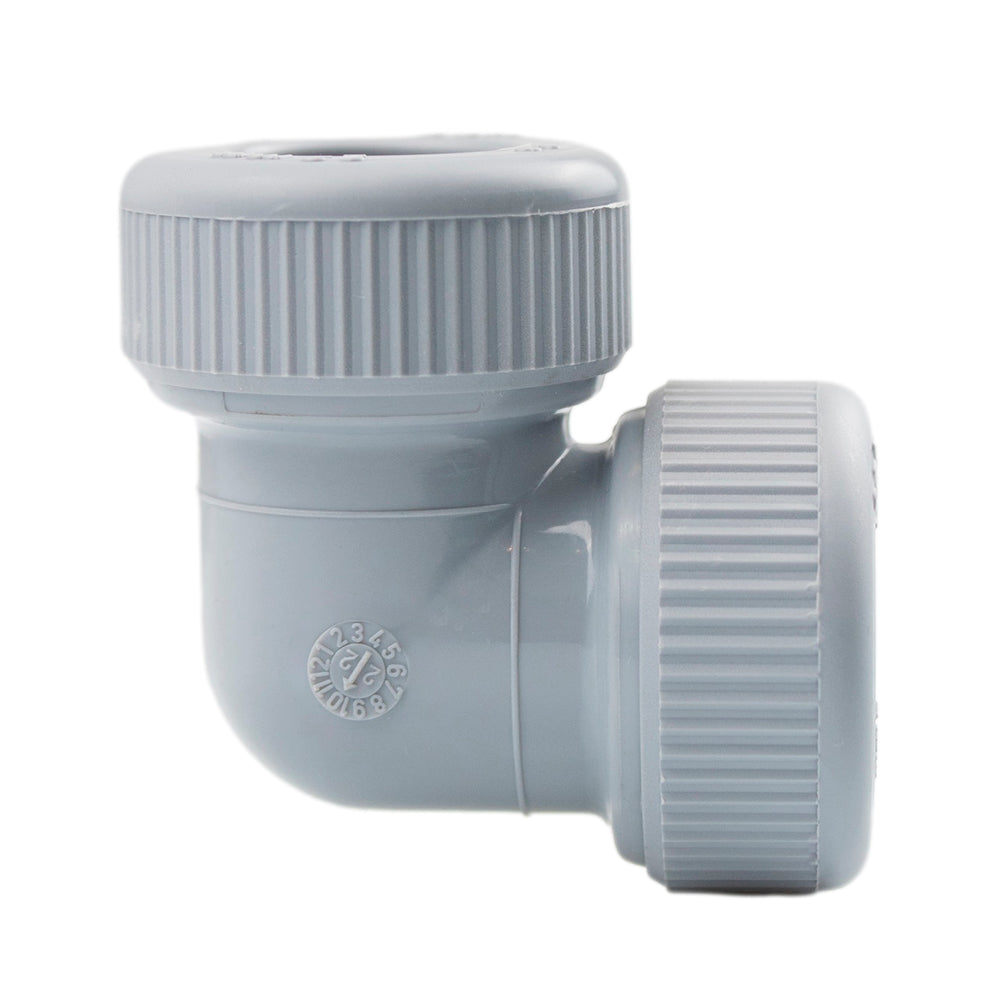

Hep2O/Waterlink Push Fit Elbow 22mm
Hep2O/Waterlink Push Fit Elbow 22mm

HEP2O / WATERLINK PUSH FIT ELBOW 22MM

HEP2O / WaterLink push fit elbow 22mm for changing direction in compatible 22mm polybutylene pipe runs for hot and cold water plumbing installations.

✓ 22mm Push Fit Elbow
✓ 22mm x 22mm Connections
✓ Suits HEP2O / WaterLink Pipe Systems
✓ For Polybutylene Plumbing Pipe
✓ Hot and Cold Water Reticulation
✓ Support Sleeve Required for PB Pipe Connection

Hep2O / Waterlink Fitting Installation Guide and Specifications

More Information
Product Specifications
Hep2O/Waterlink Push Fit Elbow 22mm
HEP2O / WATERLINK PUSH FIT ELBOW 22MM
Hep2O/Waterlink Push Fit Elbow 18mm
Hep2O/Waterlink Push Fit Elbow 18mm CRH2OPFE18
$3.94 /each
Hep2O/Waterlink Push Fit Elbow 22mm
Hep2O/Waterlink Push Fit Elbow 22mm CRH2OPFE22
$4.83 /each

HEP2O / WaterLink push fit elbow 22mm is used to change direction in compatible 22mm polybutylene pipe runs for hot and cold water plumbing installations. It provides two 22mm push-fit connections for creating an equal-size elbow connection in a HEP2O / WaterLink pipe system.

This elbow is part of the HEP2O / WaterLink push-fit plumbing system and is listed as HEP5.22 in the Hep2O catalogue and WLP5.22 in the WaterLink catalogue. Support sleeves are required when connecting polybutylene pipe. Confirm pipe size and system suitability before ordering.

Hep2O / Waterlink Fitting Installation Guide and Specifications

✓ Product Type & Size
HEP2O / WaterLink push fit equal elbow, 22mm x 22mm.

✓ Connection
Push-fit x push-fit.

✓ System Compatibility
Suitable for compatible HEP2O / WaterLink polybutylene pipe systems.

✓ Catalogue Reference
Listed as HEP5.22 in the Hep2O catalogue and WLP5.22 in the WaterLink catalogue.

✓ Application
Suitable for hot and cold water plumbing installations where the pipe size, pressure rating and temperature rating suit the installation.

✓ Support Sleeve Requirement
Support sleeves are required when connecting polybutylene pipe.

✓ Installation Note
Use purpose-designed pipe cutters, ensure the PB pipe end is clean and free from burrs, insert the correct support sleeve, push the pipe fully into the fitting and tug back to confirm the grab ring has engaged.

✓ Compliance Note
Install in accordance with AS/NZS 3500 and relevant local plumbing requirements.
