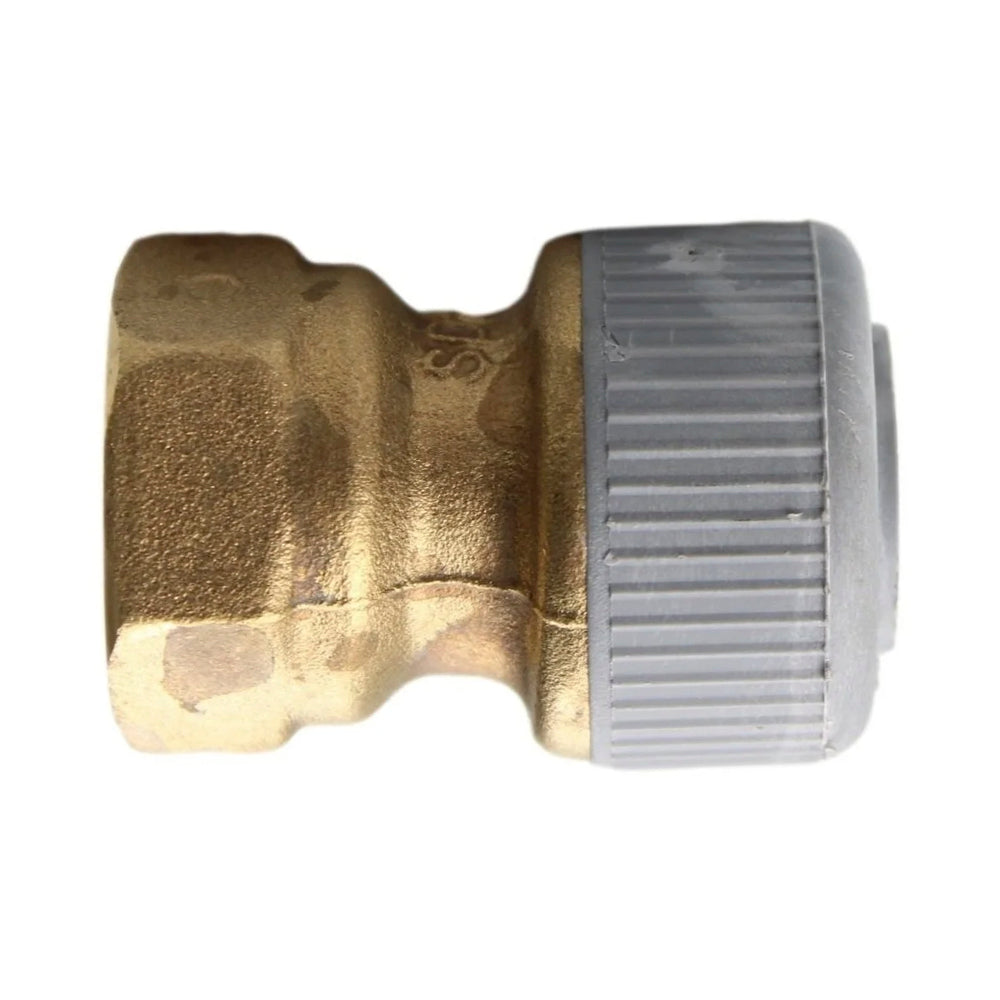

Hep2O/Waterlink Push Fit x Female Adaptor, 22mm x 3/4" FI Brass
Hep2O/Waterlink Push Fit x Female Adaptor, 22mm x 3/4" FI Brass

HEP2O / WATERLINK PUSH FIT X FEMALE ADAPTOR 22MM X 3/4" FI BRASS

HEP2O / WaterLink push fit x female adaptor with 22mm polybutylene pipe connection and 3/4" female BSP brass thread for compatible hot and cold water plumbing systems.

✓ 22mm Push-Fit Connection
✓ 3/4" Female BSP Brass Thread
✓ Push Fit x Female BSP Adaptor
✓ Suits HEP2O / WaterLink Pipe Systems
✓ Hot and Cold Water Reticulation
✓ Support Sleeve Required for PB Pipe Connection

Hep2O / Waterlink Fitting Installation Guide and Specifications

More Information
Product Specifications
Hep2O/Waterlink Push Fit x Female Adaptor, 22mm x 3/4" FI Brass
HEP2O / WATERLINK PUSH FIT X FEMALE ADAPTOR 22MM X 3/4" FI BRASS
Hep2O/Waterlink Push Fit x Female Adaptor, 18mm x 1/2" FI Brass
Hep2O/Waterlink Push Fit x Female Adaptor, 18mm x 1/2" FI Brass CRH2OPFFA1812FB
$9.14 /each
Hep2O/Waterlink Push Fit x Female Adaptor, 22mm x 3/4" FI Brass
Hep2O/Waterlink Push Fit x Female Adaptor, 22mm x 3/4" FI Brass CRH2OPFFA2234FB
$10.92 /each

HEP2O / WaterLink push fit x female adaptor 22mm x 3/4" FI brass is used to connect compatible 22mm polybutylene pipe to a male 3/4" BSP threaded fitting, valve or outlet. It is suitable for hot and cold water plumbing installations where a push-fit PB pipe connection needs to transition to a female brass thread.

This adaptor is part of the HEP2O / WaterLink push-fit plumbing system and is listed as HEP28.22 in the Hep2O catalogue and WLP28.22 in the WaterLink catalogue. Support sleeves are required when connecting polybutylene pipe. Confirm pipe size, BSP thread size and system suitability before ordering.

Hep2O / Waterlink Fitting Installation Guide and Specifications

✓ Product Type & Size
HEP2O / WaterLink push fit x female adaptor, 22mm x 3/4".

✓ Connection
Push-fit PB pipe connection x female BSP brass thread.

✓ PB Pipe Connection
22mm push-fit connection for compatible polybutylene pipe.

✓ Thread Connection
3/4" female BSP brass thread.

✓ System Compatibility
Suitable for compatible HEP2O / WaterLink polybutylene pipe systems.

✓ Catalogue Reference
Listed as HEP28.22 in the Hep2O catalogue and WLP28.22 in the WaterLink catalogue.

✓ Application
Suitable for hot and cold water plumbing installations where the PB pipe size, BSP thread size, pressure rating and temperature rating suit the installation.

✓ Support Sleeve Requirement
Support sleeves are required when connecting polybutylene pipe.

✓ Installation Note
Use purpose-designed pipe cutters, ensure the PB pipe end is clean and free from burrs, insert the correct support sleeve, push the pipe fully into the fitting and tug back to confirm the grab ring has engaged.

✓ Compliance Note
Install in accordance with AS/NZS 3500 and relevant local plumbing requirements.
