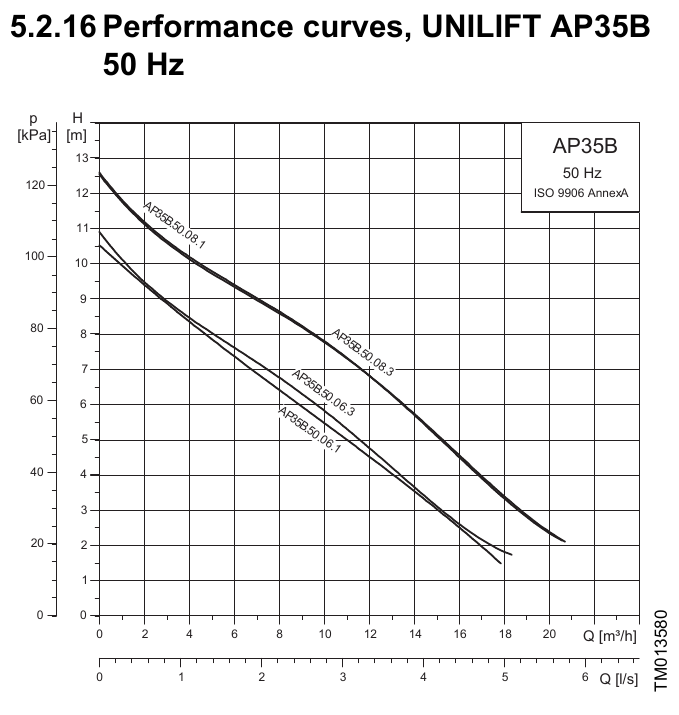

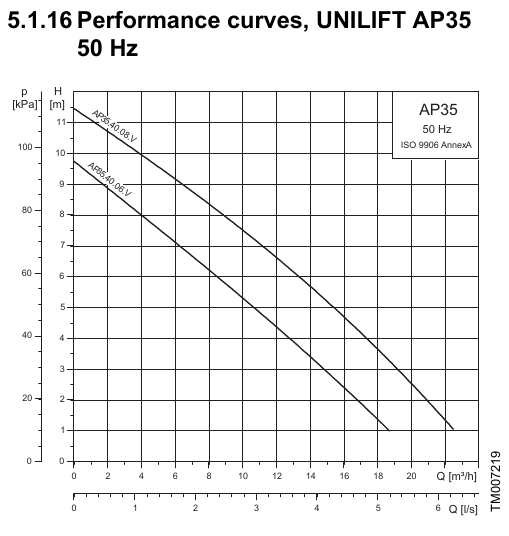

Grundfos UNILIFT AP35 and AP35B pumps handle dirty stormwater, groundwater and suitable non-aggressive wastewater. AP35 models have maximum flows of 250.2-300L/min and maximum heads of 10-11m; AP35B models have maximum flows of 300-349.8L/min and maximum heads of 11-13m. Maximum flow and maximum head are separate limits. Actual flow depends on lift and pipe resistance; use the matching 50Hz performance curve to assess expected flow.
AP35 has a vertical 40mm (1 1/2") Rp / BSP female outlet; AP35B has a horizontal 50mm (2") Rp / BSP female outlet. Both pass spherical particles up to 35mm and suit water containing small amounts of suspended solids. Neither design is suitable for stones, long fibres, aggressive or flammable liquids.
Both designs suit collecting pits, dirty stormwater, suitable laundry and bathroom wastewater, and suitable septic-system effluent, excluding sewage and toilet discharge.

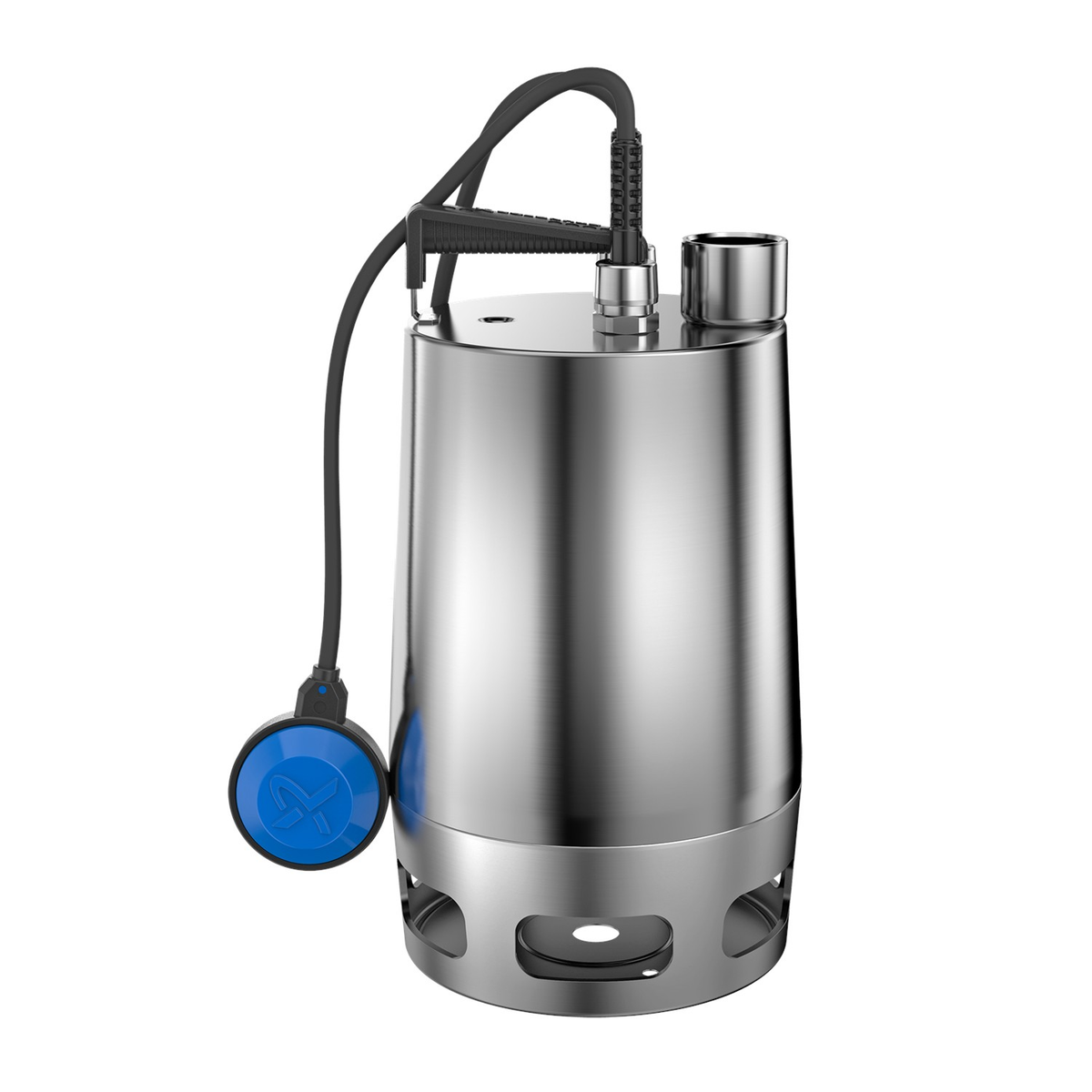

All four stocked models include a tethered float switch for automatic start/stop, a 10m cable and an Australian plug. They use 220-240V single-phase, 50Hz power. Internal thermal overload protection resets after cooling; no separate motor-protection control box is needed. Keep each float free to move and set it for the chosen design’s operating requirements.
AP35 has a motor cooling jacket supporting continuous running without scheduled cooling rests while partly submerged, provided the entire inlet strainer remains submerged in the liquid being pumped. Do not run dry.
AP35B requires the motor and pump inlet to remain completely submerged for continuous running. For intermittent pumping with cooling rests, keep at least half the motor submerged and follow the manual limit of maximum 5 minutes running per 30 minutes when the motor is not fully submerged. Set the float stop level to maintain the submergence required for the duty.
Both designs can stand on a firm base clear of sludge and mud. AP35B also supports an optional auto-coupling system for permanent installations; the coupling equipment is not supplied. Allow a minimum pit diameter of 550mm and depth of 600mm at the minimum free float-cable setting. Maximum installation depth is 7m with the 10m cable, leaving at least 3m of cable above liquid level. Lift by the handle. A union, non-return valve and isolating valve are recommended for permanent outlet pipework.
AP35 permits liquids at 0-55°C; AP35B permits 0-40°C. Both specify pH 4-10. The pump housings and vortex impellers are AISI 304 stainless steel. The Basic design has a composite ring stand and housing clips for access during cleaning.
