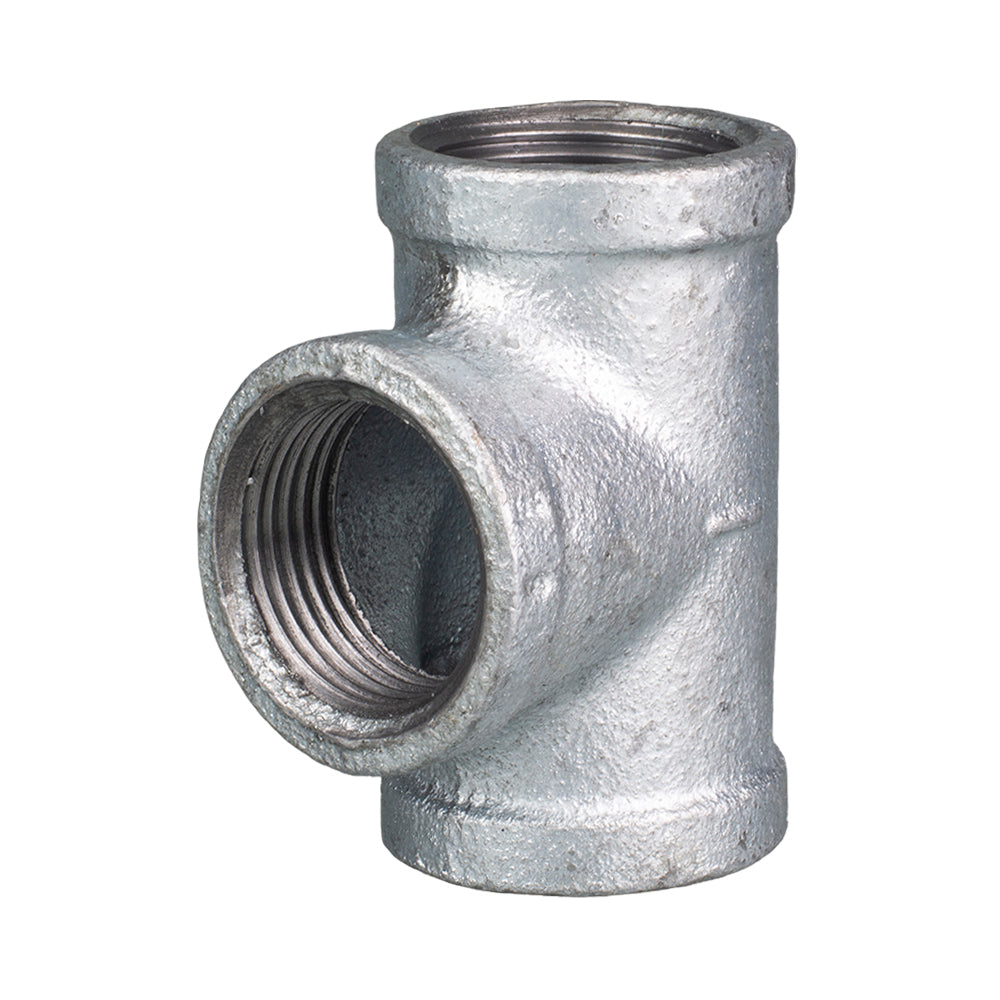

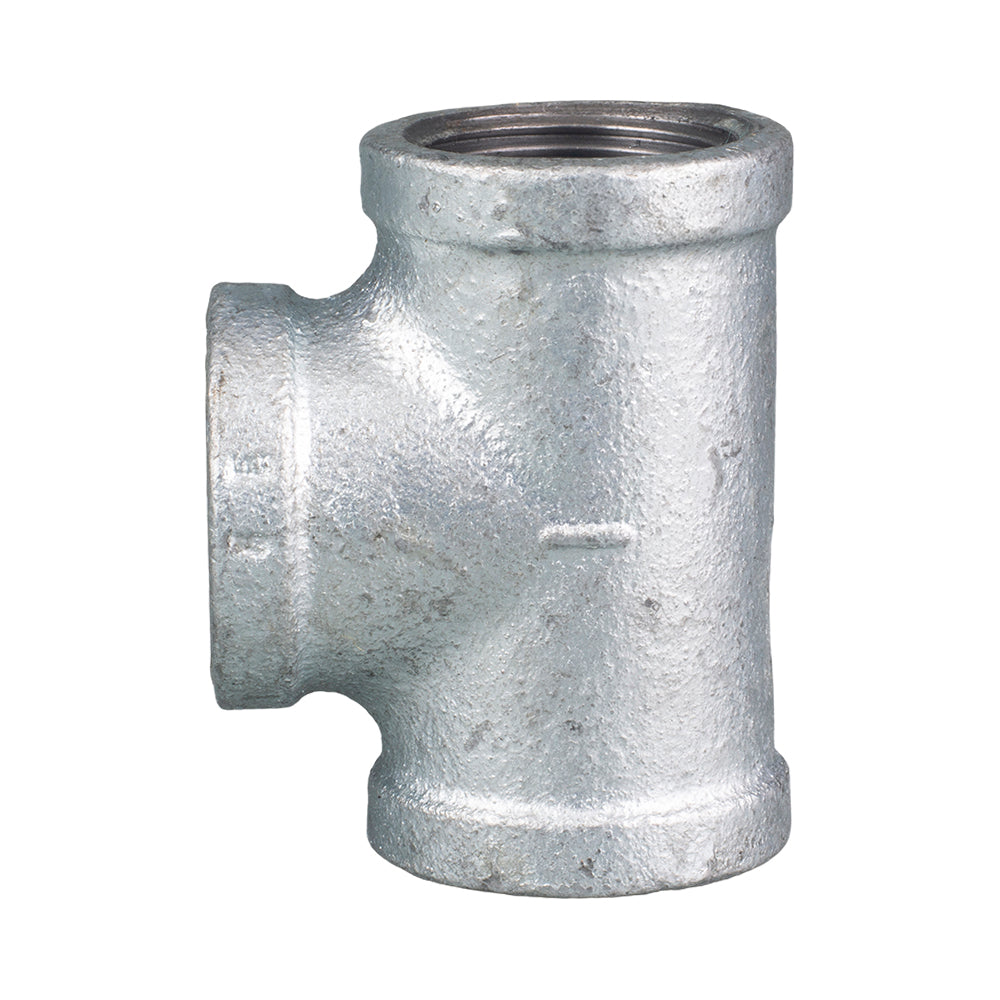

GALVANISED MALLEABLE IRON THREADED TEE 80MM (3") FEMALE BSP

Galvanised malleable iron 80mm female threaded tee used to create a branch connection from 80mm (3") BSP threaded pipework, fittings and valve assemblies.

✓ 80mm (3") Female BSP Threads
✓ Three-Way Branch Connection
✓ Hot Dip Galvanised Malleable Iron
✓ Use with Thread Seal Tape

Galvanised Malleable Iron Tee Female BSP Specifications

More Information
Product Specifications
Galvanised Malleable Iron Tee 80mm (3")
GALVANISED MALLEABLE IRON THREADED TEE 80MM (3") FEMALE BSP
Galvanised Malleable Iron Tee 15mm (1/2")
Galvanised Malleable Iron Tee 15mm (1/2") G10T015
$1.47 /each
Galvanised Malleable Iron Tee 20mm (3/4")
Galvanised Malleable Iron Tee 20mm (3/4") G10T020
$2.48 /each
Galvanised Malleable Iron Tee 25mm (1")
Galvanised Malleable Iron Tee 25mm (1") G10T025
$3.68 /each
Galvanised Malleable Iron Tee 32mm (1 1/4")
Galvanised Malleable Iron Tee 32mm (1 1/4") G10T032
$6.05 /each
Galvanised Malleable Iron Tee 40mm (1 1/2")
Galvanised Malleable Iron Tee 40mm (1 1/2") G10T040
$7.37 /each
Galvanised Malleable Iron Tee 50mm (2")
Galvanised Malleable Iron Tee 50mm (2") G10T050
$11.52 /each
Galvanised Malleable Iron Tee 65mm (2 1/2")
Galvanised Malleable Iron Tee 65mm (2 1/2") G10T065
$21.38 /each
Galvanised Malleable Iron Tee 80mm (3")
Galvanised Malleable Iron Tee 80mm (3") G10T080
$27.86 /each
Galvanised Malleable Iron Tee 100mm (4")
Galvanised Malleable Iron Tee 100mm (4") G10T100
$48.63 /each

Galvanised malleable iron 80mm female threaded tees are used to create a branch connection from 80mm (3") BSP threaded pipework, fittings and valve assemblies. They are suitable for water, air and general pipework applications where a threaded line needs to be split or branched.

Made from hot dip galvanised malleable iron, this tee provides 80mm (3") female BSP threaded connections on all three outlets. Use suitable thread sealant or PTFE tape when installing male BSP threads into the tee.

Galvanised Malleable Iron Tee Female BSP Specifications

✓ Product Type & Size
80mm (3") galvanised malleable iron threaded tee with Female BSP connections.

✓ Material
Hot dip galvanised malleable iron.

✓ Thread Type
Female BSP threaded connection.

✓ Pressure Rating
Recommended maximum working pressure up to 1379kPa for water. Working pressure may vary depending on the application, medium, installation and relevant regulations.

✓ Standard
Manufactured to EN 10242.

✓ Applications
Suitable for water, air and general pipework applications.

✓ Installation
Use suitable thread sealant or PTFE tape and install with compatible BSP threaded fittings. Installation must suit the application, medium and relevant regulations.
