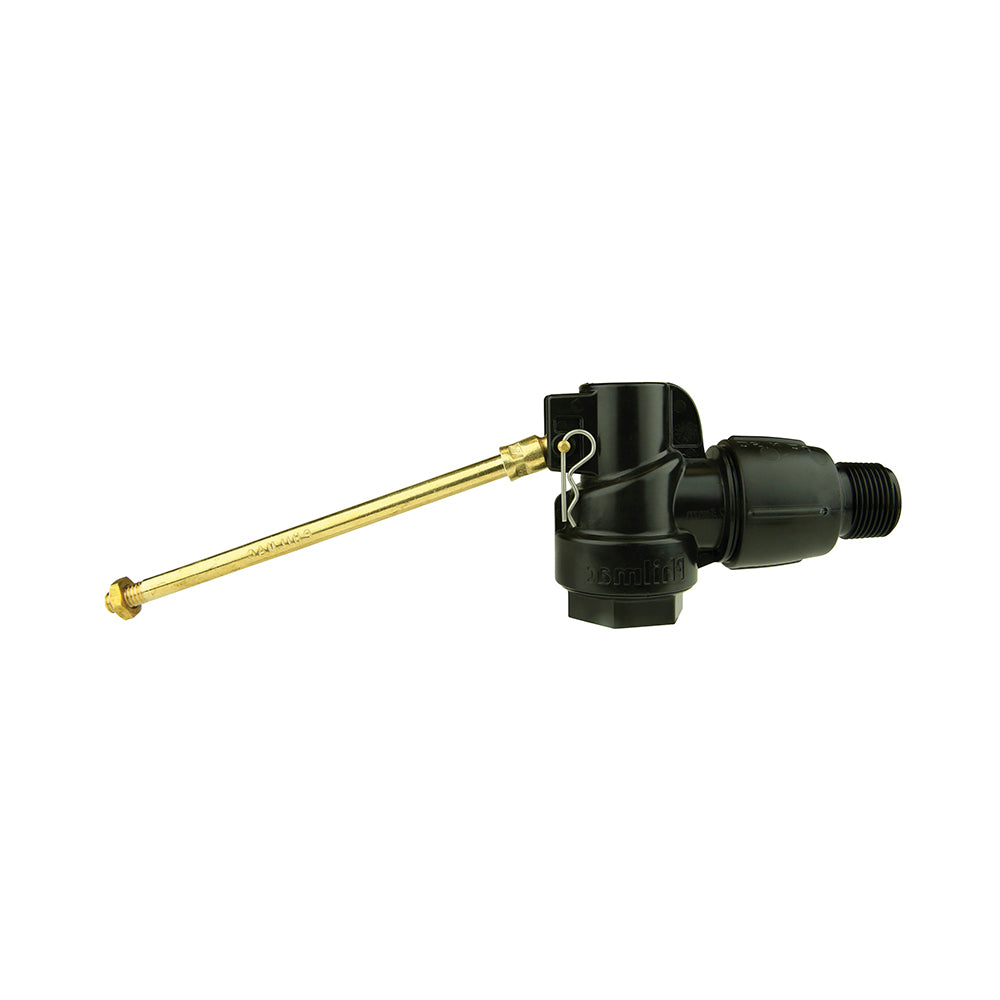

Philmac VersaPHIL black float valve with brass lever arm and threaded inlet.
Philmac VersaPHIL black float valve with brass lever arm and threaded inlet.
Philmac VersaPHIL black float valve with brass lever arm and threaded inlet.

FLOAT VALVE PHILMAC VERSAPHIL

Philmac VersaPHIL float valves keep tanks and troughs topped up automatically, with a dual-size inlet that suits 20mm or 25mm connections. The 165mm lever suits confined float chambers, while the 300mm lever provides greater reach. The acetal body and corrosion-resistant DZR brass lever suit top or side entry.

✓ Inlet: 25mm tapered BSP, with supplied 20mm reducer
✓ Lever length: 165mm or 300mm
✓ Mounting: top or side entry
✓ Tested static shut-off pressure: 1100kPa (165mm lever) or 1400kPa (300mm lever), with a 150mm float
✓ Float connection: 5/16" BSW

Float sold separately. The recommended float is a 150mm black Philmac ball float.

Philmac VersaPHIL Installation - Tapered and Parallel
Philmac Float Valve Range Brochure

Philmac VersaPHIL black float valve with brass lever arm and threaded inlet.

Philmac VersaPHIL float valves keep tanks and troughs topped up automatically, with a dual-size inlet that suits 20mm or 25mm connections. The 165mm lever suits confined float chambers, while the 300mm lever provides greater reach. The acetal body and corrosion-resistant DZR brass lever suit top or side entry.

The supplied reducer fits a 20mm tapered BSP connection. Remove it to use the 25mm inlet.

Float sold separately. The recommended float is a 150mm black Philmac ball float.

Philmac VersaPHIL Installation - Tapered and Parallel
Philmac Float Valve Range Brochure

✓ Stocked Options
Philmac VersaPHIL 20/25mm 165mm Lever: 165mm lever; shorter float reach
Philmac VersaPHIL 20/25mm 300mm Lever: 300mm lever; greater float reach

✓ Level Control & Float Requirements
Single shut-off level; select the lever length for float reach and clearance.
Float: sold separately.
Recommended size: 150mm.
Connection: 5/16" BSW.
Recommended stocked option: Philmac 150mm black (TFPHPF150B).

✓ Connections & Mounting
Inlet: 20mm (3/4") and 25mm (1") dual tapered BSP.
Inlet adaptor: 25mm to 20mm reducer included; remove for a 25mm inlet.

✓ Pressure
Tested static shut-off pressure with a 150mm float: 165mm lever, 1100kPa; 300mm lever, 1400kPa.

✓ Construction & Materials
Body: Acetal.
Lever assembly: DZR brass lever and pivot pin.
