Tank Float Valve Philmac MegaPhil 1 1/4" Brass Long Lever 400mm
Tank Float Valve Philmac MegaPhil 1 1/4" Brass Long Lever 400mm
Tank Float Valve Philmac MegaPhil 1 1/4" Brass Long Lever 400mm
Tank Float Valve Philmac MegaPhil 1 1/4" Brass Long Lever 400mm

FLOAT VALVE PHILMAC MEGAPHIL 32MM

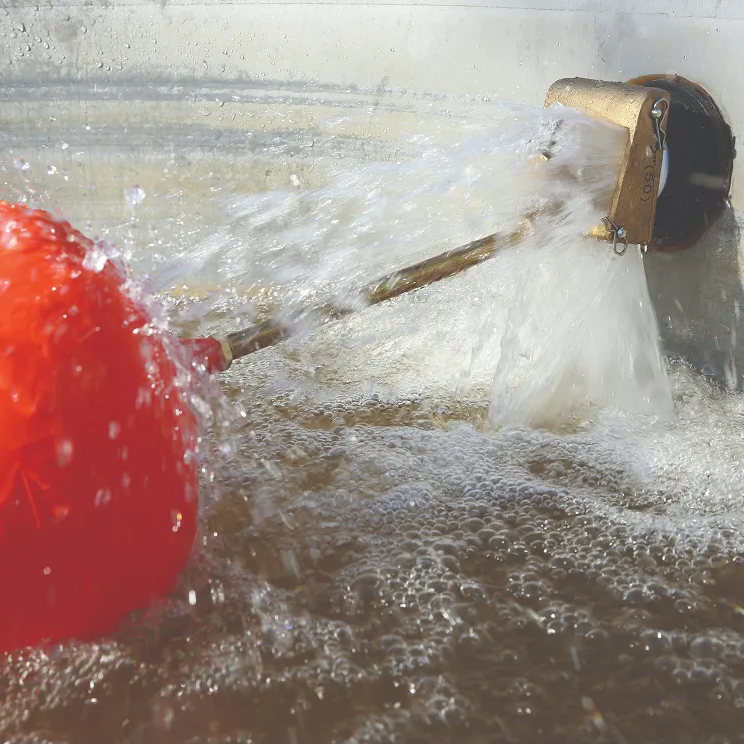

The Philmac MegaPHIL 32mm supplies high-demand tanks and troughs through a DZR brass body and 400mm lever. A screw adjustment sets the shut-off level without bending the arm. The valve suits top or side entry mounting.

✓ Inlet: 32mm tapered BSP
✓ Lever length: 400mm
✓ Tested static shut-off pressure: 917kPa with the 400mm lever and recommended 225mm float
✓ Float connection: 1/2" BSW

Float sold separately. The recommended float is a 225mm orange Philmac ball float.

Philmac MegaPHIL Specifications
Philmac MegaPHIL Installation
Philmac Float Valve Range Brochure

More Information
Product Specifications
Product Videos
Tank Float Valve Philmac MegaPhil 1 1/4" Brass Long Lever 400mm
FLOAT VALVE PHILMAC MEGAPHIL 32MM
Float Valve Philmac MegaPHIL 25mm
Float Valve Philmac MegaPHIL 25mm TFPHMP25L
$134.35 /each
Tank Float Valve Philmac MegaPhil 1 1/4" Brass Long Lever 400mm
Tank Float Valve Philmac MegaPhil 1 1/4" Brass Long Lever 400mm TFPHMP32L
$137.67 /each
Float Valve Philmac MegaPHIL 40mm HP/LP
Float Valve Philmac MegaPHIL 40mm HP/LP TFPHMP40L
$224.10 /each
Float Valve Philmac MegaPHIL 50mm HP/LP
Float Valve Philmac MegaPHIL 50mm HP/LP TFPHMP50L
$238.05 /each
Philmac MegaPHIL underwater float adaptor 90330200
Float Valve Philmac MegaPHIL Underwater Float Adaptor TFPHMPFA
$7.14 /each

The Philmac MegaPHIL 32mm supplies high-demand tanks and troughs through a DZR brass body and 400mm lever. A screw adjustment sets the shut-off level without bending the arm. The valve suits top or side entry mounting.

Check the pressure and flow figures for this valve before selecting it for the supply.

Float sold separately. The recommended float is a 225mm orange Philmac ball float.

Philmac MegaPHIL Specifications
Philmac MegaPHIL Installation
Philmac Float Valve Range Brochure

✓ Level Control & Float Requirements
Control: Single shut-off level.
Lever length: 400mm.
Water level adjustment: Screw adjustment; retain the lock nut and do not bend the lever.
Float: sold separately.
Recommended size: 225mm.
Connection: 1/2" BSW.
Recommended stocked option: Philmac 225mm orange (TFPHPF225O).

✓ Connections & Mounting
Inlet size: 32mm.
Inlet thread: Tapered BSP.
Mounting: Top or side entry.

✓ Pressure
Tested static shut-off pressure: 917kPa with the standard lever and recommended 225mm float.

✓ Construction & Materials
DZR brass valve body.
