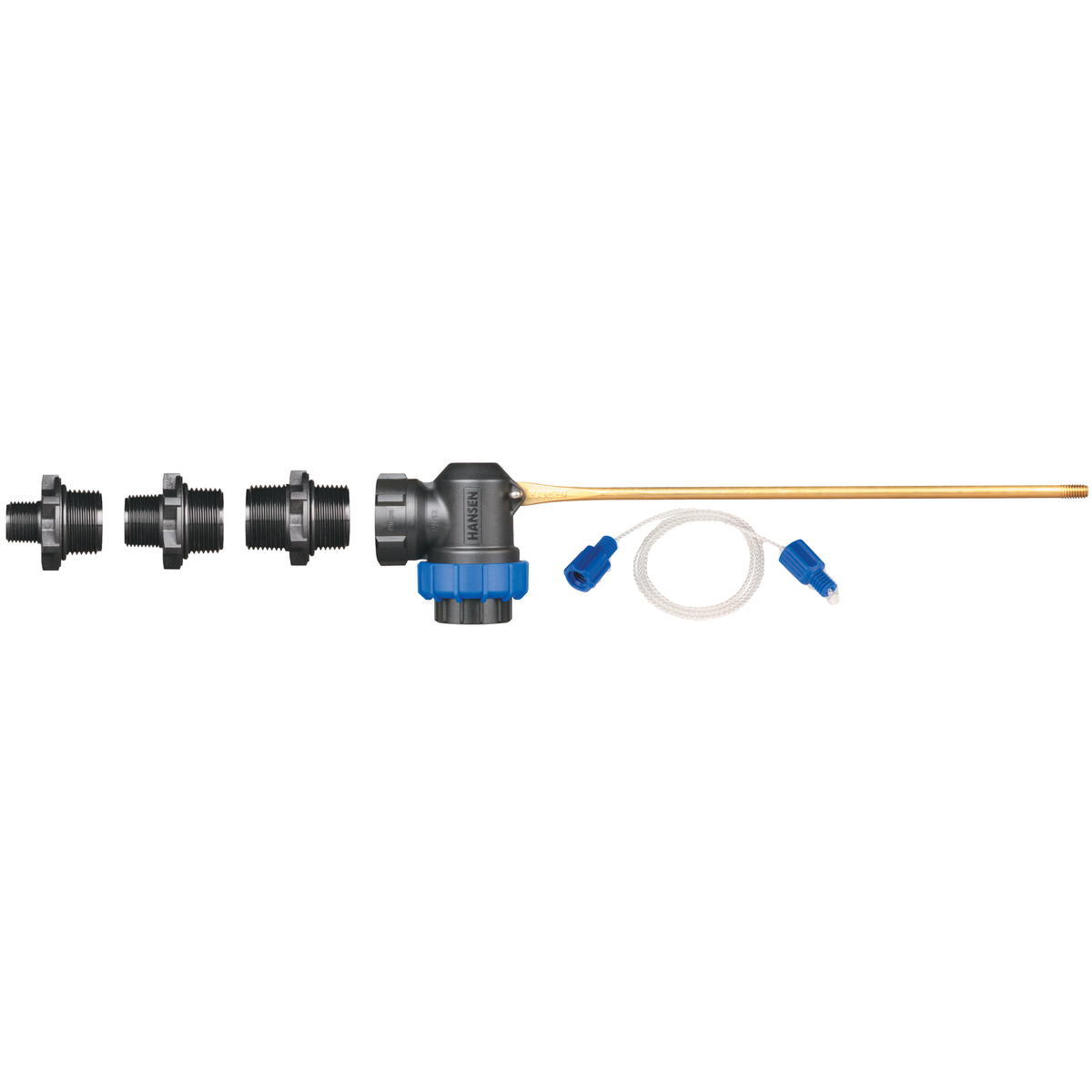

Float Valve Hansen Superflo 25mm - HSFPV2520
Float Valve Hansen Superflo 25mm - HSFPV2520
Float Valve Hansen Superflo 25mm - HSFPV2520

FLOAT VALVE HANSEN SUPERFLO 25MM

The Hansen Superflo 25mm keeps tanks and troughs topped up, with a threaded outlet for directing the incoming water through suitable pipe or hose fittings. Its plastic piston valve and long brass arm suit top or side entry. The progressive closing action helps reduce valve bounce and water hammer.

✓ Inlet and outlet: 25mm female BSPT
✓ Mounting: top or side entry
✓ Maximum working pressure: 1200kPa at 20°C
✓ Flow: 188 L/min at 200kPa

Float sold separately. Recommended float sizes are 115mm or 150mm.

Hansen Superflo Specifications, Installation & FAQs
Hansen Superflo Brochure
Hansen Superflo Feature Sheet

More Information
Product Specifications
Product Videos
Float Valve Hansen Superflo 25mm - HSFPV2520
FLOAT VALVE HANSEN SUPERFLO 25MM
Float Valve Hansen Superflo 25mm - HSFPV2520
Tank Float Valve Hansen SuperFlo 1", c/w Adaptors, 700mm Cord and Nuts TFHSF25
$42.97 /each

The Hansen Superflo 25mm keeps tanks and troughs topped up, with a threaded outlet for directing the incoming water through suitable pipe or hose fittings. Its plastic piston valve and long brass arm suit top or side entry. The progressive closing action helps reduce valve bounce and water hammer.

Both the inlet and outlet have 25mm female BSPT threads. The Slipper Fit piston is designed to resist sticking in clean or dirty water.

Float sold separately. Recommended float sizes are 115mm or 150mm.

Hansen Superflo Specifications, Installation & FAQs
Hansen Superflo Brochure
Hansen Superflo Feature Sheet

✓ Level Control & Float Requirements
Single shut-off level; top or side entry.
Float: sold separately.
Float sizes: 115mm or 150mm ball float.
Installation: direct to the brass arm or suspended on the supplied cord, using the appropriate float connection.

✓ Connections & Mounting
Body connections: 25mm female BSPT inlet and outlet.
Installation: Top or side entry.

✓ Pressure
Maximum working pressure: 1200kPa at 20°C.

✓ Flow Performance
Flow rate: 188L/min at 200kPa pressure.

✓ Dimensions
Nominal dimensions: 376mm x 83mm x 58mm for the plastic long-arm valve.

✓ Product Identification
Manufacturer code: HSFPV2520.
