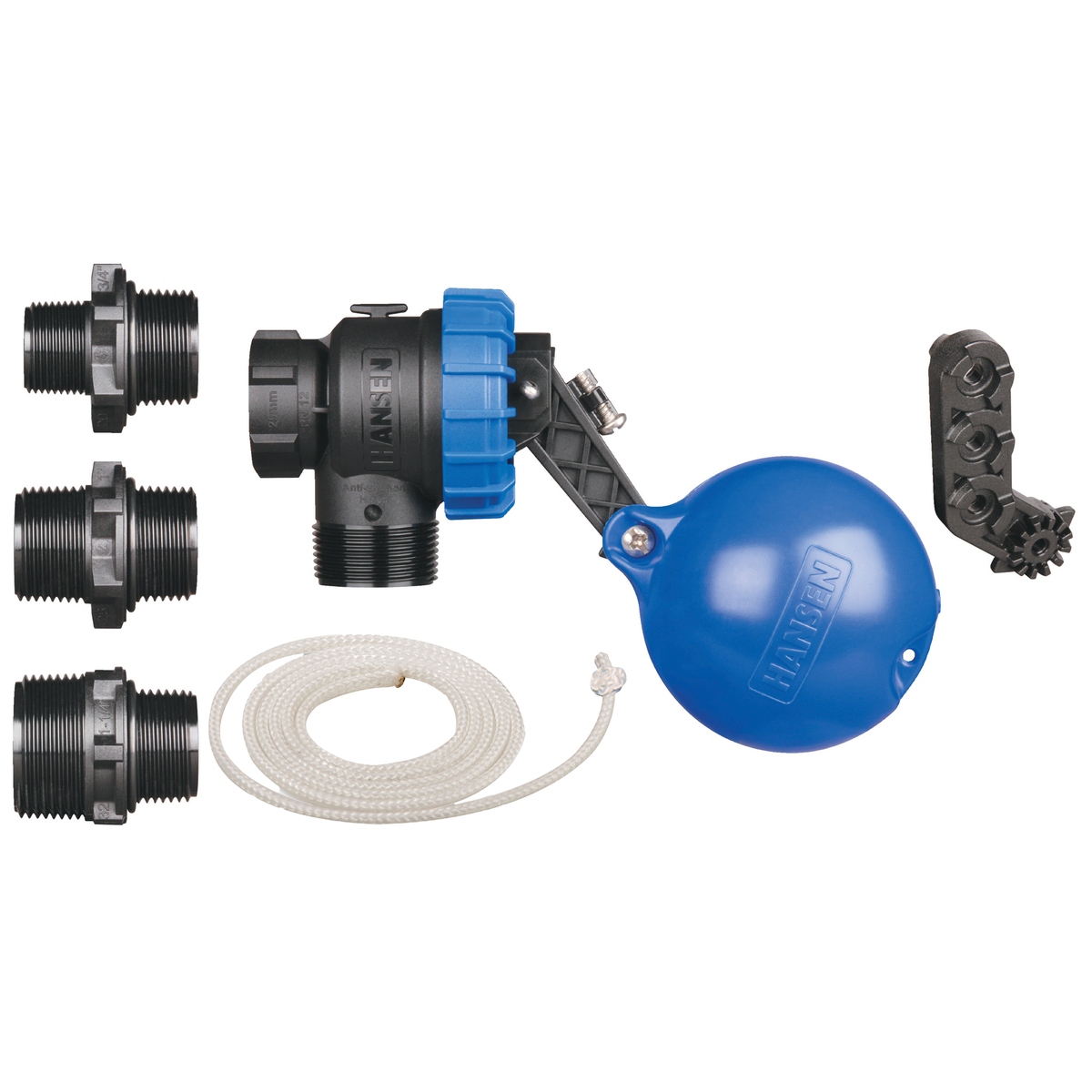

FLOAT VALVE HANSEN MAXFLO 25MM - WITH FLOAT

The Hansen Maxflo 25mm keeps tanks and troughs topped up through a high-flow diaphragm valve. Top, side or bottom entry options help it fit different tank layouts, and the operating float is included. A self-cleaning pilot helps resist debris build-up. Gradual closure helps reduce water hammer.

✓ Valve size: 25mm
✓ Mounting: top, side or bottom entry
✓ Working pressure: 20-1200kPa at 20°C
✓ Flow: 570 L/min at 200kPa
✓ Operating float included

Hansen Maxflo Float Valve Installation Guide & FAQs
Hansen Maxflo Float Valve Brochure
Hansen Maxflo Float Valve Features Sheet

More Information
Product Specifications
Product Videos
Float Valve Hansen Maxflo 25mm - With Float - HMFDV2520
FLOAT VALVE HANSEN MAXFLO 25MM - WITH FLOAT
Float Valve Hansen Maxflo 25mm - With Float - HMFDV2520
Tank Float Valve Hansen MaxFlo 1", c/w Adaptors, Float and 650mm Cord TFHMF25
$77.69 /each

The Hansen Maxflo 25mm keeps tanks and troughs topped up through a high-flow diaphragm valve. Top, side or bottom entry options help it fit different tank layouts, and the operating float is included. A self-cleaning pilot helps resist debris build-up. Gradual closure helps reduce water hammer.

The working pressure range is 20-1200kPa at 20°C. Allow up to eight seconds for closure after the float reaches the shut-off level. Check the inlet position and float clearance before mounting.

Hansen Maxflo Float Valve Installation Guide & FAQs
Hansen Maxflo Float Valve Brochure
Hansen Maxflo Float Valve Features Sheet

✓ Level Control & Float Requirements
Control: Single shut-off level.
Operating float included.

✓ Connections & Mounting
Valve size: 25mm.
Installation: Top, side or bottom entry.

✓ Pressure
Working pressure: 20-1200kPa at 20°C.

✓ Flow Performance
Flow rate: 570 L/min at 200kPa; actual flow depends on the installation.

✓ Dimensions
Body dimensions: 144mm x 98mm x 76mm.
