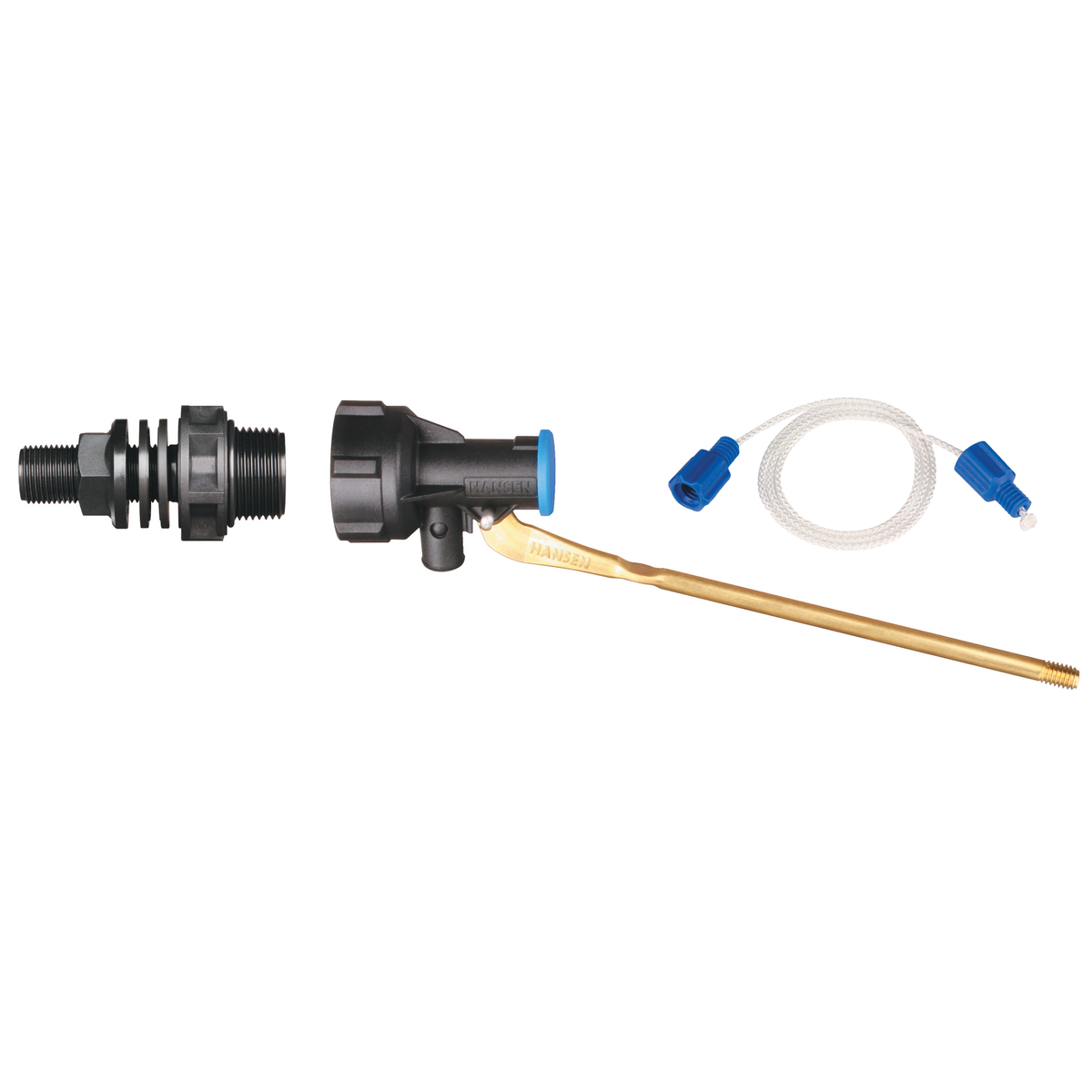

Hansen FastFlo float valve with black body, threaded tail, brass lever arm and cord fittings
Hansen FastFlo float valve with black body, threaded tail, brass lever arm and cord fittings
Hansen FastFlo float valve with black body, threaded tail, brass lever arm and cord fittings

Hansen Fastflo float valves keep bowls, troughs and header tanks topped up where space is limited. A compact acetal body works with a long brass arm for setting the water level. Long-tail inlet adaptors are available in 15mm and 20mm sizes, for top or side entry.

✓ Inlet adaptor: 15mm or 20mm long tail
✓ Mounting: top or side entry
✓ Maximum working pressure: 1200kPa at 20°C
✓ Reversible polyurethane seal

Float sold separately. Recommended float size is 115mm for shut-off against 1200kPa pressure.

Hansen Fastflo Specifications, Installation & FAQs
Hansen Fastflo Brochure
Hansen Fastflo Feature Sheet

Hansen FastFlo float valve with black body, threaded tail, brass lever arm and cord fittings

Hansen Fastflo float valves keep bowls, troughs and header tanks topped up where space is limited. A compact acetal body works with a long brass arm for setting the water level. Long-tail inlet adaptors are available in 15mm and 20mm sizes, for top or side entry.

The shut-off level can be set through the arm or a suspended float. A reversible polyurethane seal provides a second sealing face when servicing the valve.

Float sold separately. Recommended float size is 115mm for shut-off against 1200kPa pressure.

Hansen Fastflo Specifications, Installation & FAQs
Hansen Fastflo Brochure
Hansen Fastflo Feature Sheet

✓ Stocked Options
Hansen Fastflo 15mm Long Tail: 15mm long-tail inlet adaptor
Hansen Fastflo 20mm Long Tail: 20mm long-tail inlet adaptor

✓ Level Control & Float Requirements
Single shut-off level, adjusted through the arm or suspended float arrangement.
Float: sold separately.
Recommended float: 115mm ball float for shut-off against 1200kPa pressure.
Installation: direct to the brass arm or suspended on the supplied cord, using the appropriate float connection.

✓ Connections & Mounting
Stocked connections: 15mm or 20mm long-tail inlet adaptor.
Mounting: Top or side entry.

✓ Pressure
Maximum working pressure: 1200kPa at 20°C.

✓ Flow Performance
Manufacturer reference: 34 L/min at approximately 200kPa (29psi). This is a family reference, rather than a separate test of each long-tail model.

✓ Construction & Materials
Acetal valve body and plunger; brass arm; polyurethane seal.

✓ Product Identification
Manufacturer code: HFFSV15L.
