FLOAT VALVE APEX PLASTIC LONG TAIL

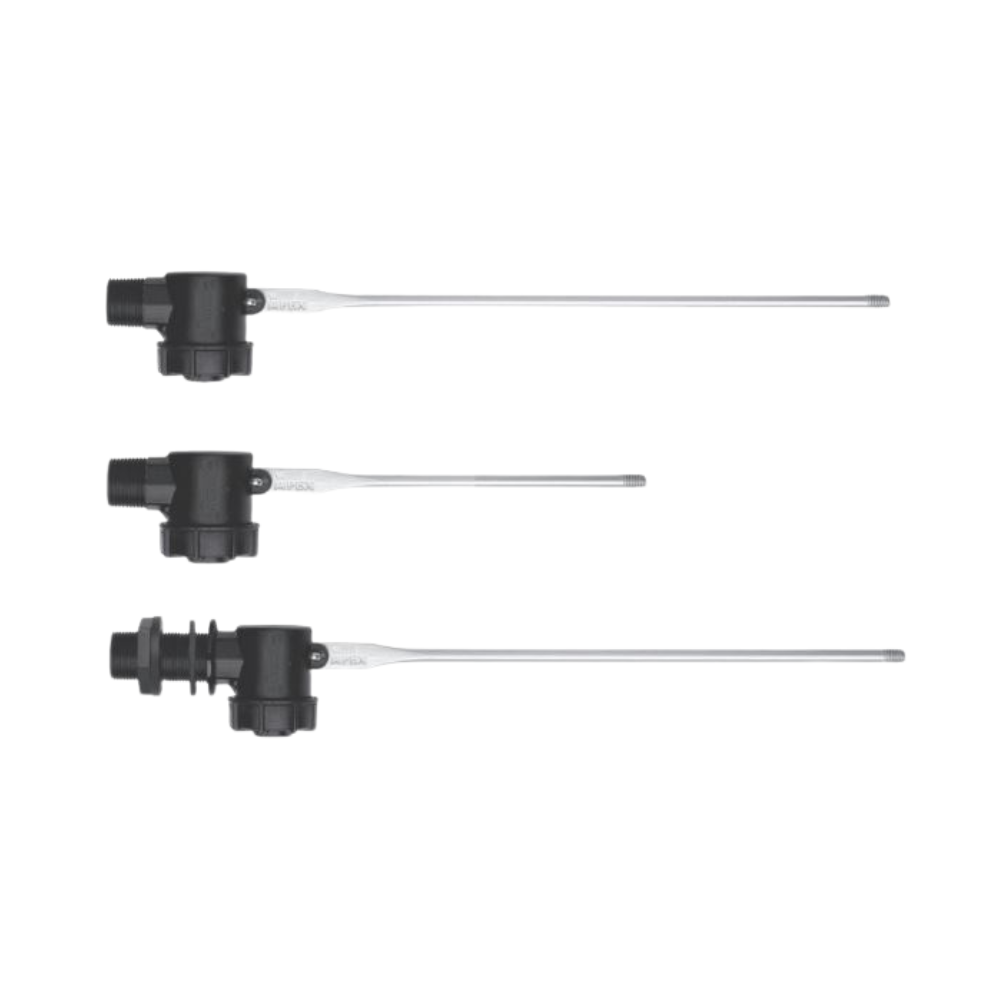

Apex plastic long-tail float valves keep tanks and troughs topped up through an extended threaded inlet. The range has 20mm and 25mm inlet connections, with standard or shorter float levers. The short-arm versions provide an option where float-arm clearance is limited.

✓ Inlet: 20mm or 25mm, extended threaded tail
✓ Float lever: standard or short
✓ Working pressure: 0-1200kPa with a standard arm; 0-950kPa with a short arm

Float sold separately. The recommended float is a 150mm Apex ball float in black or orange.

More Information
Product Specifications
Float Valve Apex Plastic 20mm Long Tail
FLOAT VALVE APEX PLASTIC LONG TAIL
Float Valve Apex Plastic 20mm Long Tail
Float Valve Apex Plastic 20mm Long Tail TFLVL20
$43.31 /each
Tank Float Valve (Plastic) Long Tail BSP 1" (25mm) TFLVL25
$43.31 /each
Float Valve Apex Plastic 20mm Long Tail Short Arm TFVSH34
$43.31 /each
Tank Float Valve (Plastic) Long Tail, Short Arm BSP 1" (25mm) TFVSHLT25
$43.31 /each

Apex plastic long-tail float valves keep tanks and troughs topped up through an extended threaded inlet. The range has 20mm and 25mm inlet connections, with standard or shorter float levers. The short-arm versions provide an option where float-arm clearance is limited.

The long tail is the extended threaded inlet that passes through the tank wall. The arm is the lever connecting the valve to the float; the short-arm version needs less space inside the tank.

Allow room for the float and arm to move through their full opening and closing travel. Check the drawing for the selected tail and arm before fitting.

Float sold separately. The recommended float is a 150mm Apex ball float in black or orange.

✓ Stocked Options
Apex Plastic 20mm Long Tail: 20mm long-tail inlet; standard arm
Apex Plastic 25mm Long Tail: 25mm long-tail inlet; standard arm
Apex Plastic 20mm Long Tail Short Arm: 20mm long-tail inlet; short arm
Apex Plastic 25mm Long Tail Short Arm: 25mm long-tail inlet; short arm

✓ Level Control & Float Requirements
Single shut-off level; standard or short arm selected for mounting clearance.
Float: sold separately.
Recommended float: 150mm Apex ball float.
Options: black (TFLB150) or orange (TFLO150).

✓ Connections & Mounting
20mm or 25mm inlet; long tail with standard or short arm.

✓ Pressure & Temperature
Working pressure: standard arm, 0-1200kPa; short arm, 0-950kPa.
Working temperature: AP family range: 1-60°C.
Ratings apply with the recommended 150mm float and the matching arm arrangement.

✓ Flow Performance
Standard-arm flow rate: 310L/min at 1200kPa pressure.
Short-arm flow rate: 275L/min at 950kPa pressure.

✓ Product Identification
Manufacturer code: APTLT 20A.
