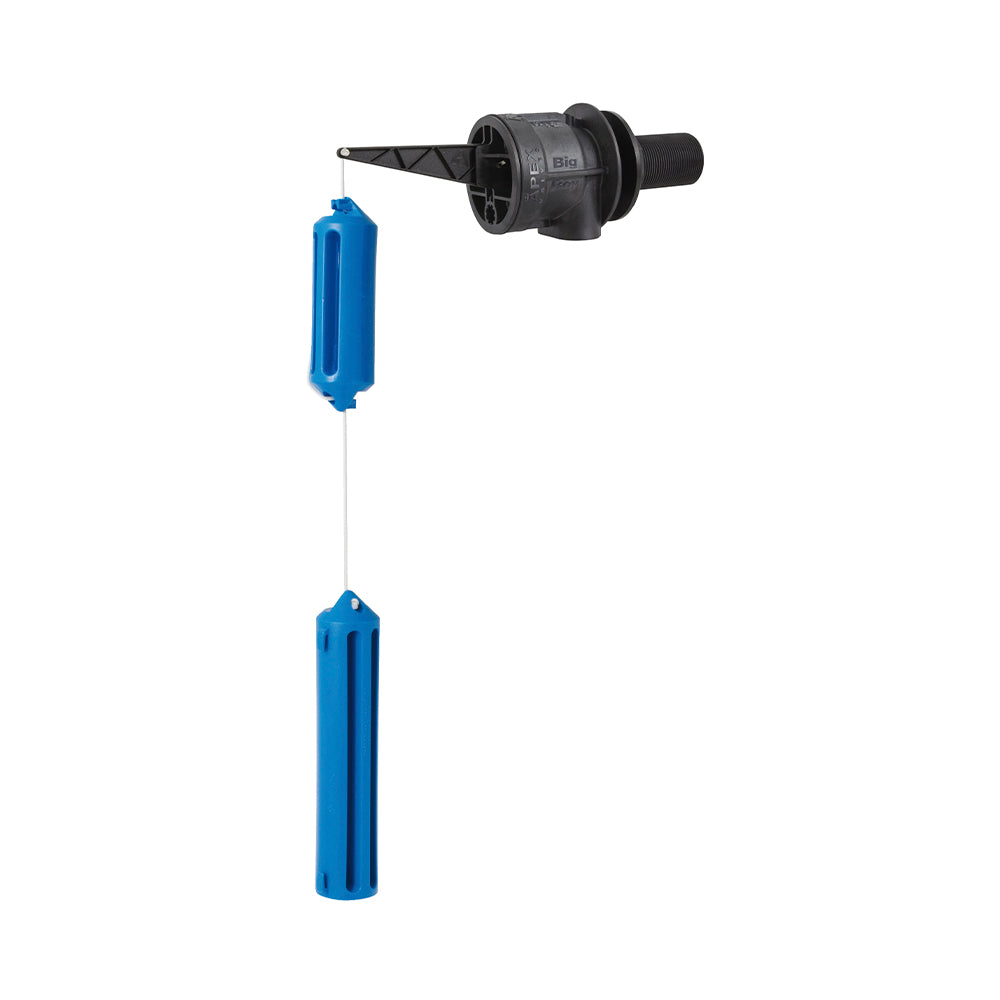

Apex BigBoy float valve showing the two suspended blue floats and threaded inlet.
Apex BigBoy float valve showing the two suspended blue floats and threaded inlet.
Apex BigBoy float valve showing the two suspended blue floats and threaded inlet.

The Apex BigBoy 40mm controls tank and reservoir filling using suspended operating weights. Set a single shut-off level or allow the tank to draw down before the next refill. A larger gap between opening and closing levels can help reduce frequent pump starts.

✓ Connection size: 40mm
✓ Working pressure: 15-1200kPa
✓ Single shut-off level or separate refill and shut-off levels
✓ Operated by suspended weights

Apex BigBoy Specifications
Apex BigBoy 40mm Drawing

Apex BigBoy float valve showing the two suspended blue floats and threaded inlet.
Apex BigBoy float valve showing the two suspended blue floats and threaded inlet.
Float Valve Apex BigBoy 32mm TFLVBBDL032
$284.38 /each
Apex BigBoy float valve showing the two suspended blue floats and threaded inlet.
Float Valve Apex BigBoy 40mm TFLVBBDL040
$295.28 /each

The Apex BigBoy 40mm controls tank and reservoir filling using suspended operating weights. Set a single shut-off level or allow the tank to draw down before the next refill. A larger gap between opening and closing levels can help reduce frequent pump starts.

The diaphragm valve has a 40mm nominal connection and operates from 15kPa to 1200kPa. Leave the suspended controls free to move through the selected water levels.

Apex BigBoy Specifications
Apex BigBoy 40mm Drawing

✓ Level Control
Single-level or separate opening and closing levels using suspended controls.

✓ Connections & Mounting
Connection size: 40mm.

✓ Pressure & Temperature
Working pressure: 15-1200kPa.
Working temperature: 1-60°C.

✓ Compatibility & Use
Control type: Diaphragm valve with suspended operating weights.
