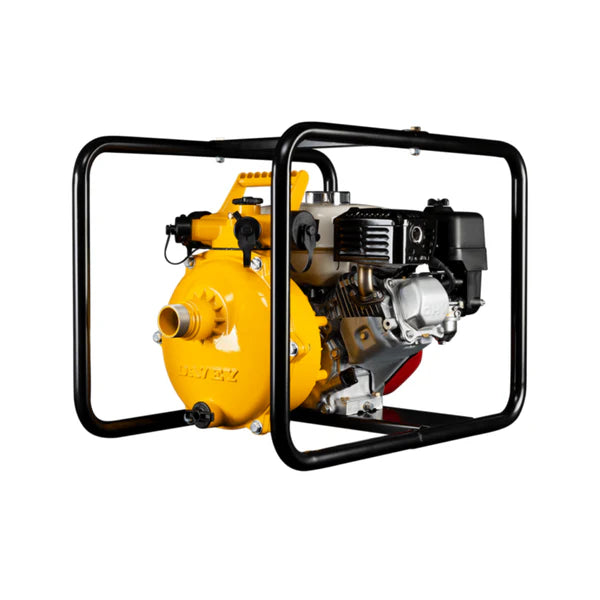

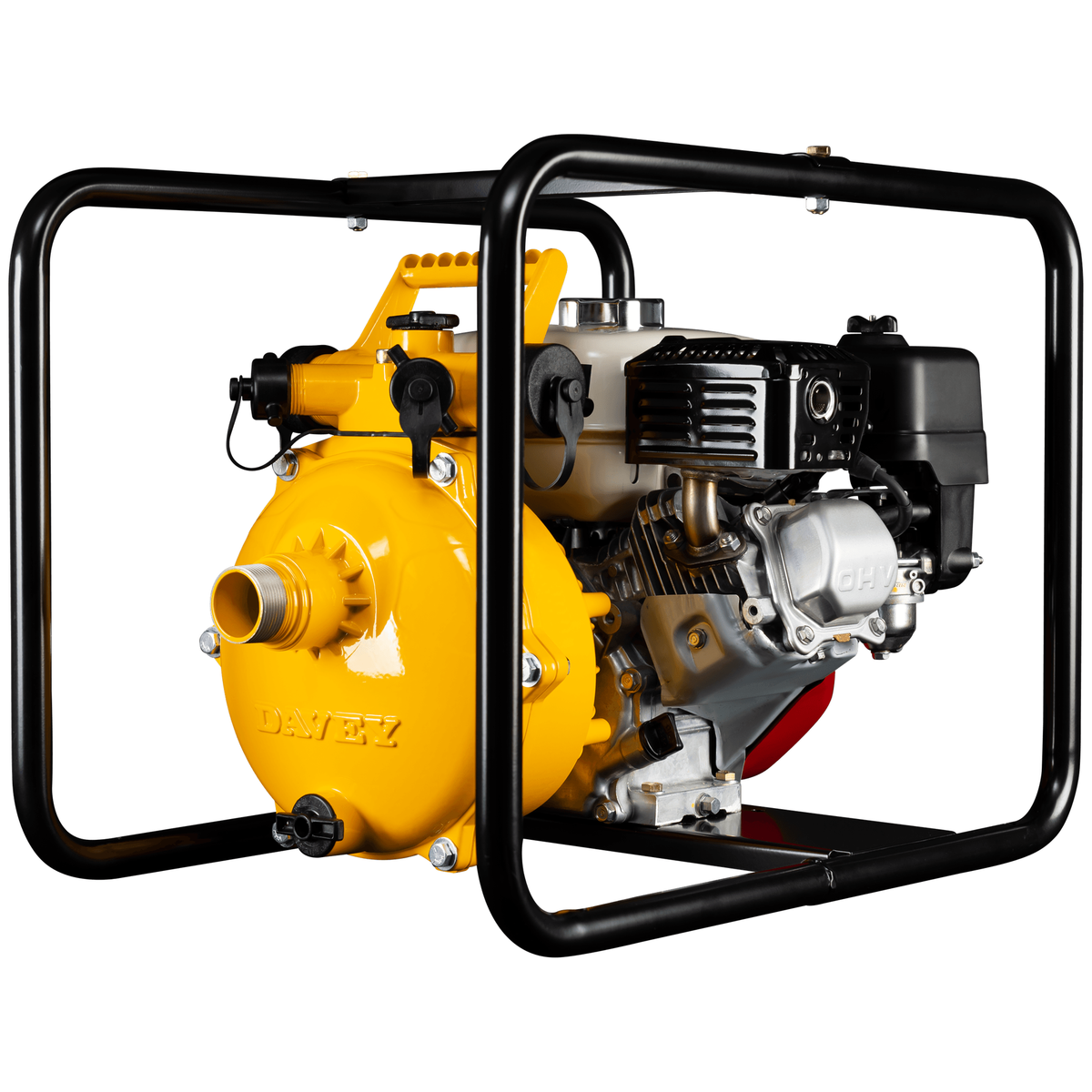

DAVEY 5155H FIREFIGHTING PETROL PUMP SINGLE STAGE HONDA GX160 (460LPM/60M)

The Davey 5155H Firefighter pump is a durable, high performance single stage self priming pump designed for firefighting, water transfer, irrigation and rural water supply applications. Powered by a reliable Honda GX160 engine, this pump provides strong pressure and dependable flow while maintaining excellent efficiency and long service life. The marine grade aluminium construction and patented impeller technology ensure reliable performance in demanding environments where portability and performance are essential.

FEATURES

• Patented clamped impeller design for extended wear life and easier servicing

• Single stage pump providing strong pressure with efficient flow performance

• Thrust balanced impeller reduces engine load and improves reliability

• Corrosion resistant marine grade aluminium pump components

• Polyester coated pump casing for additional protection

• Patented floating impeller neck rings for improved efficiency and seal life

• Self priming capability up to 7 metres

• Large priming and drain ports with retained plugs for convenience

• Low oil engine protection for safe operation

• Multiple discharge configurations for installation flexibility

• Optional Viton seals available for specialised applications

APPLICATIONS

• Firefighting and emergency response water transfer

• Tank filling and tanker to tanker transfer

• Agricultural irrigation and spray systems

• Sheep jetting and livestock operations

• Rural water supply and property maintenance

• General high pressure water transfer

SPECIFICATIONS

• Pump Type Single stage self priming centrifugal pump

• Engine Honda GX160 petrol engine

• Engine Displacement 163 cc

• Fuel Tank Capacity 3.1 litres

• Oil Capacity 0.6 litres

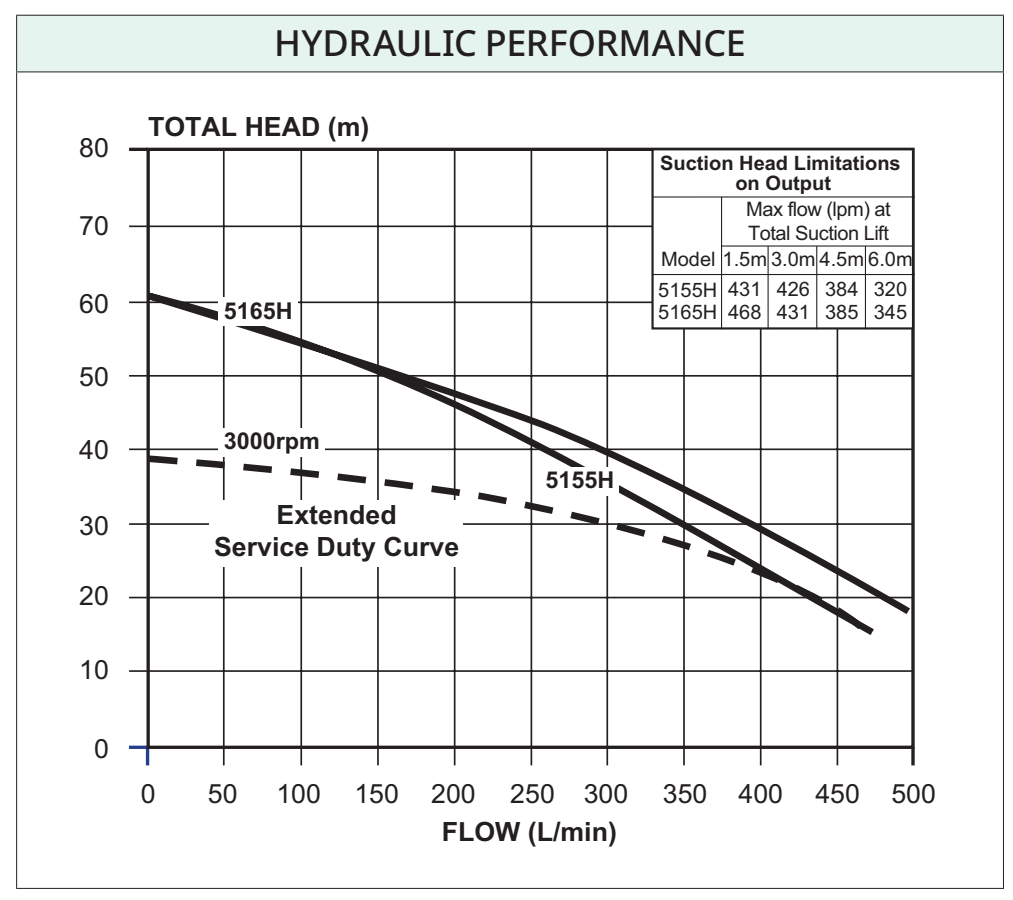

• Maximum Flow Up to 492 litres per minute

• Maximum Head Up to 60 metres

• Maximum Suction Lift Up to 7 metres

• Maximum Casing Pressure 1000 kPa

• Maximum Water Temperature 50°C

• Minimum Water Temperature 0.5°C

• Inlet Size 40 mm or 50 mm depending on configuration

• Outlet Configuration Multiple outlet options depending on model

• Construction Marine grade aluminium pump components

• Mechanical Seal Carbon / ceramic

• Weight Approximately 21 kg
