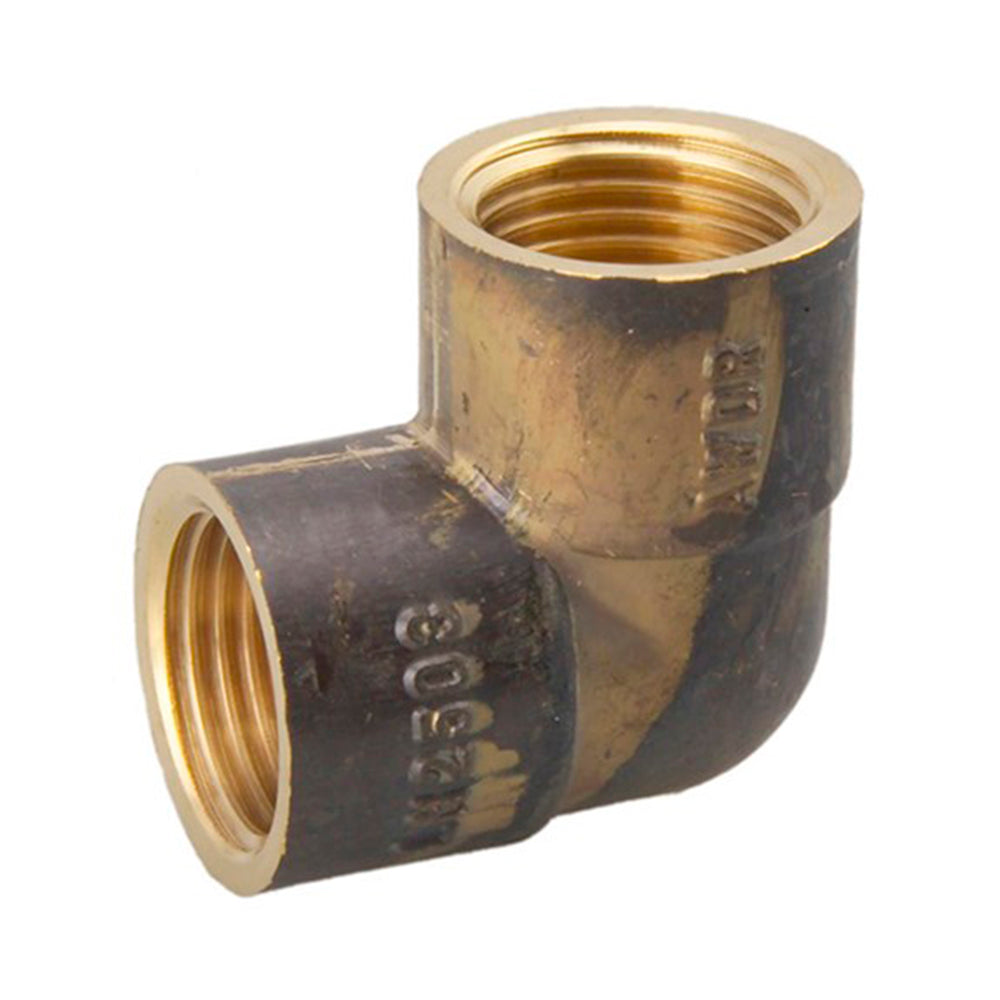

Brass 90-degree female threaded elbow showing the threaded opening.
Brass 90-degree female threaded elbow showing the threaded opening.
Brass 90-degree female threaded elbow, side view.
Brass 90-degree female threaded elbow, side view.
Brass 90-degree female threaded elbow showing the threaded opening.
Brass 90-degree female threaded elbow, side view.

BRASS THREADED ELBOW 90° 32MM (1 1/4") FEMALE BSP

Brass Elbow 90° 32mm has 32mm (1 1/4") female BSP threads at both ends. It accepts matching male fittings to change the direction of pipework by 90°.

✓ 32mm (1 1/4") Female BSP Threads at Both Ends
✓ 90° Change of Direction
✓ DR Lead Free Brass
✓ Use with Thread Seal Tape

Brass Threaded Elbow 90° Female BSP Specifications

More Information
Product Specifications
Brass 90-degree female threaded elbow showing the threaded opening.
BRASS THREADED ELBOW 90° 32MM (1 1/4") FEMALE BSP
Brass 90-degree female threaded elbow showing the threaded opening.
Brass Elbow 90° Threaded BSPF 15mm (1/2") B08E015
$3.22 /each
Brass 90-degree female threaded elbow showing the threaded opening.
Brass Elbow 90° Threaded BSPF 20mm (3/4") B08E020
$4.84 /each
Brass 90-degree female threaded elbow showing the threaded opening.
Brass Elbow 90° Threaded BSPF 25mm (1") B08E025
$7.40 /each
Brass 90-degree female threaded elbow showing the threaded opening.
Brass Elbow 90° Threaded BSPF 32mm (1 1/4") B08E032
$14.97 /each
Brass 90-degree female threaded elbow showing the threaded opening.
Brass Elbow 90° Threaded BSPF 40mm (1 1/2") B08E040
$21.86 /each
Brass 90-degree female threaded elbow showing the threaded opening.
Brass Elbow 90° Threaded BSPF 50mm (2") B08E050
$33.15 /each

Brass Elbow 90° 32mm has 32mm (1 1/4") female BSP threads at both ends. It accepts matching male fittings to change the direction of pipework by 90°.

Made from DR lead free brass, the fitting is suitable for plumbing, irrigation and rural water systems. Use suitable thread sealant or PTFE tape on the mating male BSP threads.

Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.

Brass Threaded Elbow 90° Female BSP Specifications

✓ Product Type & Size
Brass Elbow 90° with 32mm (1 1/4") female BSP threads at both ends.

✓ Function
Accepts matching male fittings to change the direction of pipework by 90°.

✓ Material
DR lead free brass.

✓ Pressure & Temperature
Maximum pressure rating 1600kPa. Working temperature: 1°C to 95°C.

✓ Certification
WaterMark Lead Free approved and tested to AS 3688.

✓ Applications
Plumbing, irrigation, rural water and general water systems.

✓ Connecting Different Metals
Avoid joining brass, galvanised and stainless steel fittings directly to one another. Use a plastic or other suitable non-conductive fitting or adaptor between different metals to prevent galvanic corrosion where water is present.

✓ Installation
Use suitable thread sealant or PTFE tape on the mating male BSP threads.
