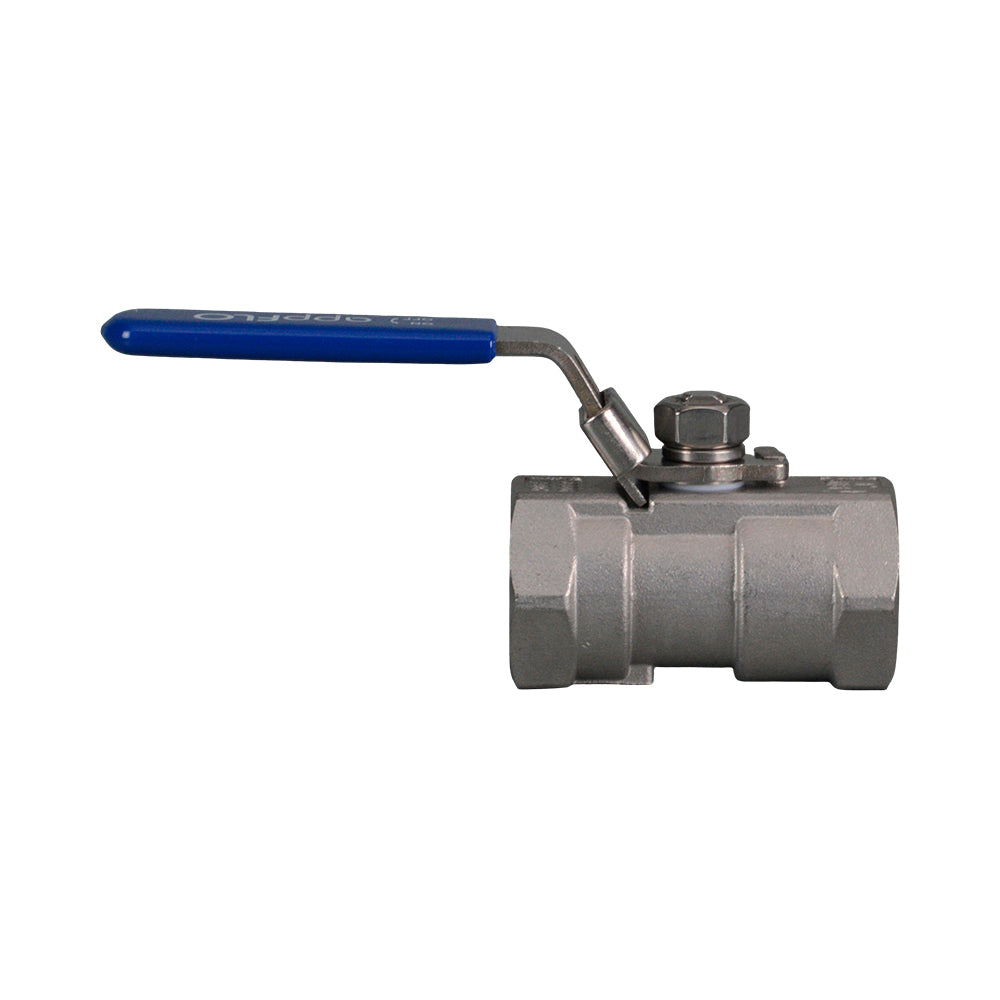

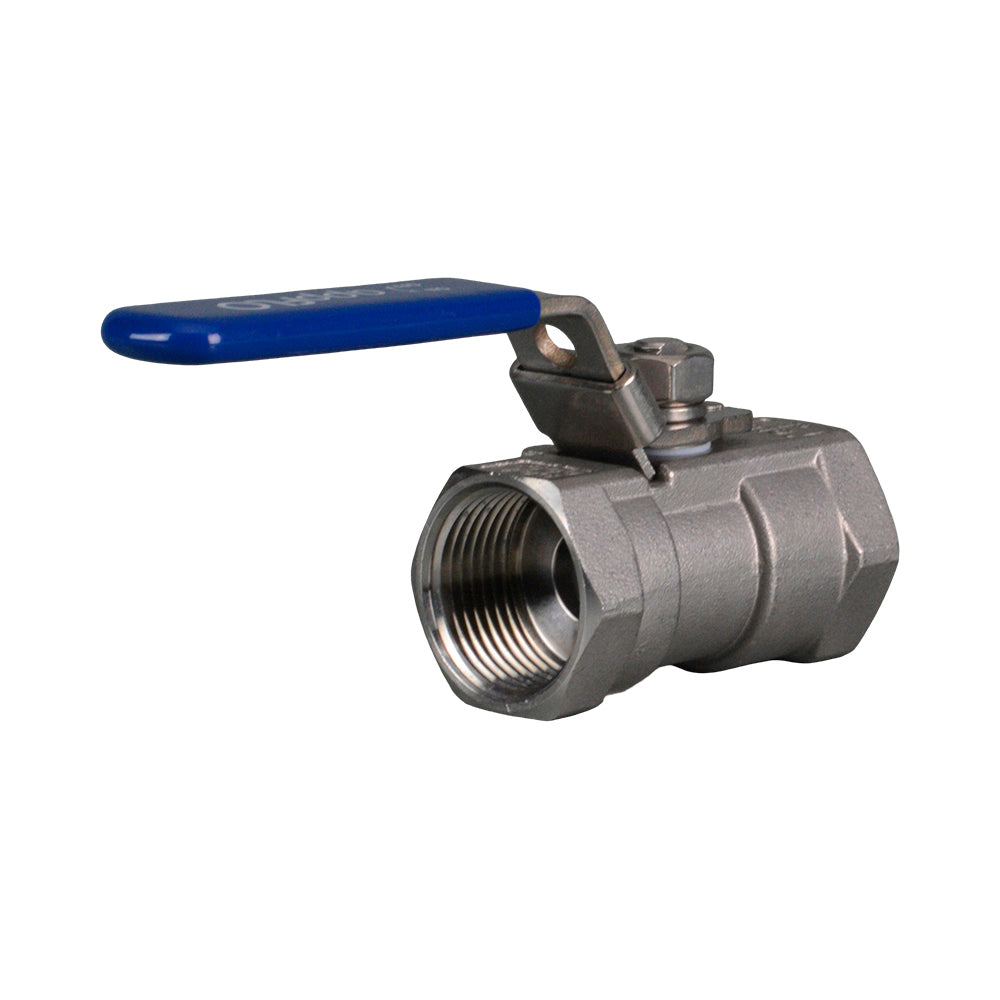

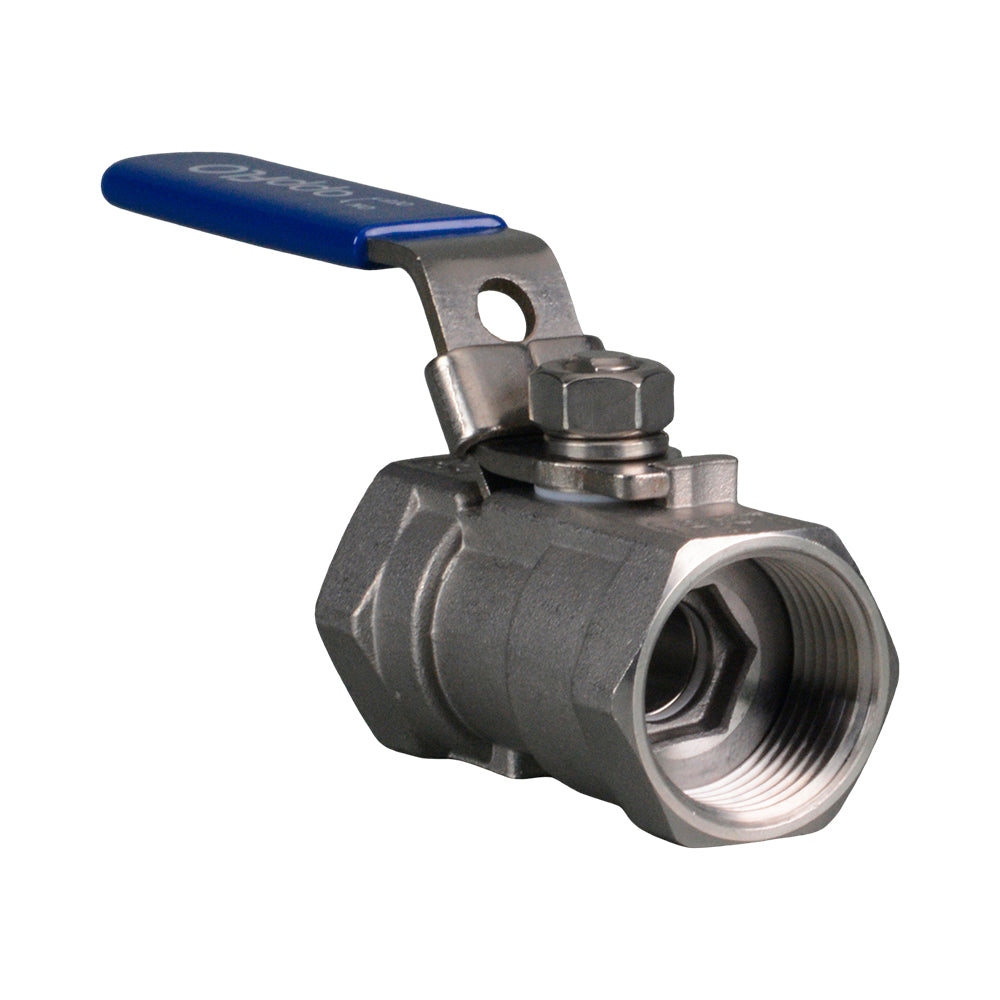

This 20mm (3/4") one-piece stainless steel ball valve provides manual isolation through two female threaded connections. Its reducing bore is smaller than the nominal connection size and must be considered when assessing water flow and pressure loss. A 316 stainless steel lever turns the ball to open or close the passage.
CF8M body; 316 stainless steel ball, stem and lever with locking device; PTFE seats.
Pressure: 6895kPa cold working pressure. Temperature: Maximum working temperature 180°C.
Turn the lever to open or close the valve and allow clearance for its full movement. The reducing bore must be considered when assessing pressure loss and required flow.
Connections: 20mm (3/4") female threaded connections; thread standard AS1722.1.
Stainless Steel 316 Ball Valve Threaded Female Reducing Bore 1 Piece Specifications
