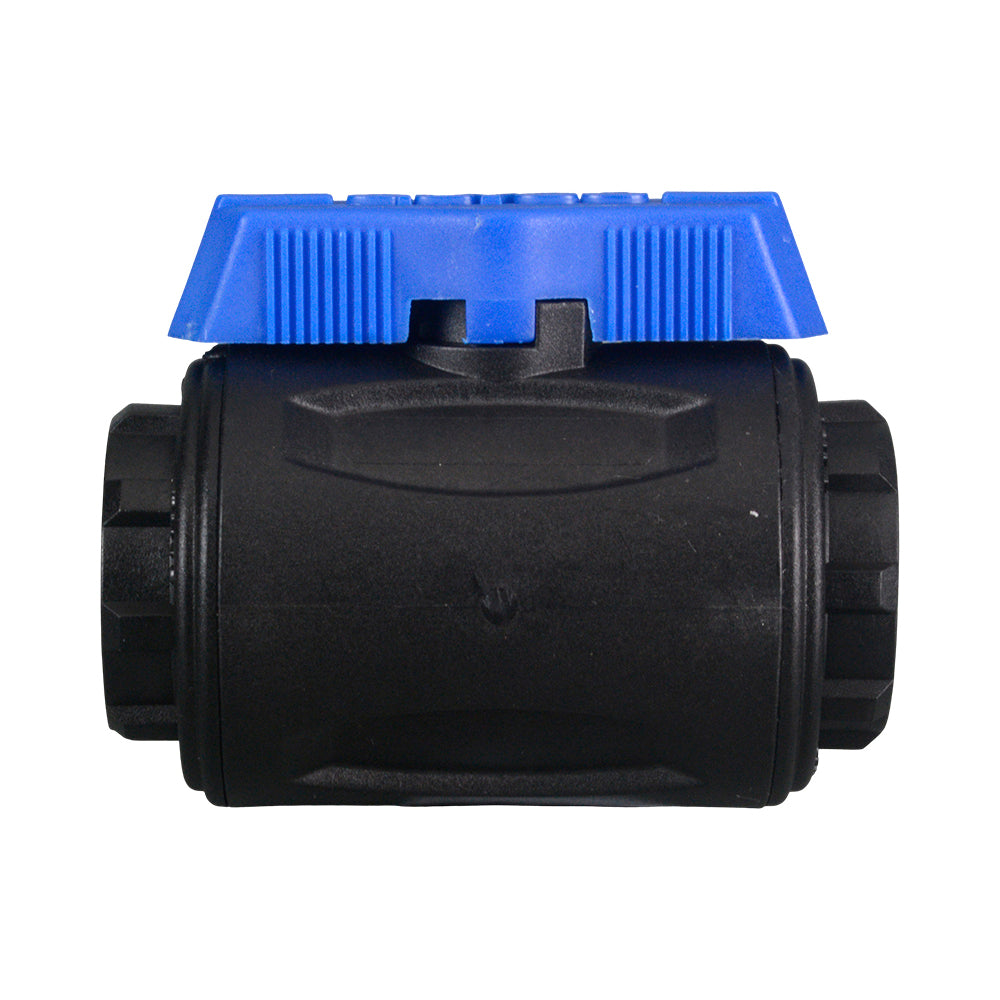

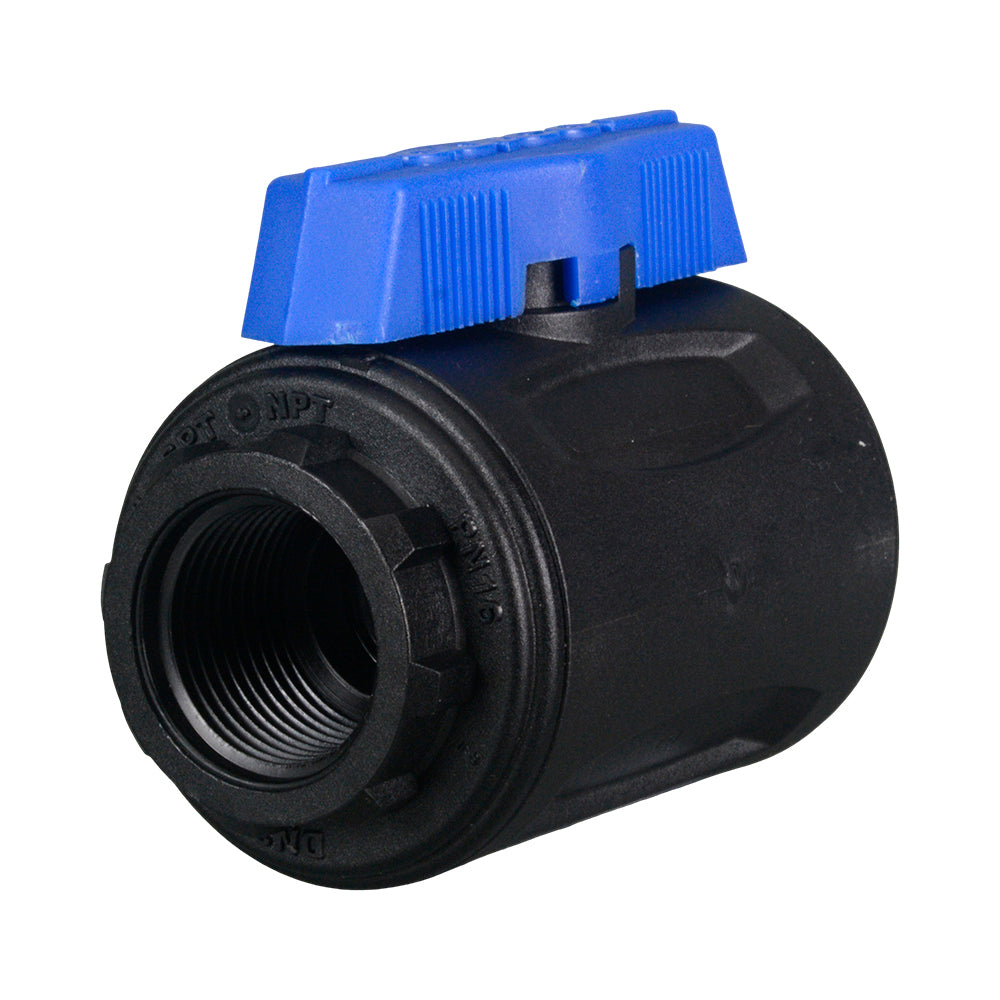

Guyco nylon ball valves provide manual water isolation through a quarter-turn handle. Female threaded valves are available in 15mm-50mm sizes, with a 25mm male x female option. The 80mm-100mm valves use stainless steel handles. The smaller valves are rated at 1600kPa; the two large stainless-handle models have a separate 1000kPa rating.
The 15mm to 50mm models use glass reinforced nylon construction and a removable nylon handle. Their full water passage supports flow through the open valve. The 80mm and 100mm models are a separate large-valve design; select them using their own rating rather than applying the smaller-valve specification.
The smaller-valve handle can be removed to limit unauthorised operation. Allow space to turn the handle.
Female x female valves are supplied in 15mm-100mm sizes, with a male x female option in 25mm. Maximum pressure is 1600kPa for 15mm-50mm valves and 1000kPa for 80mm-100mm valves.
Guyco 15mm-50mm Nylon Ball Valve Specifications
Guyco Nylon Ball Valve 80mm 100mm Specifications
