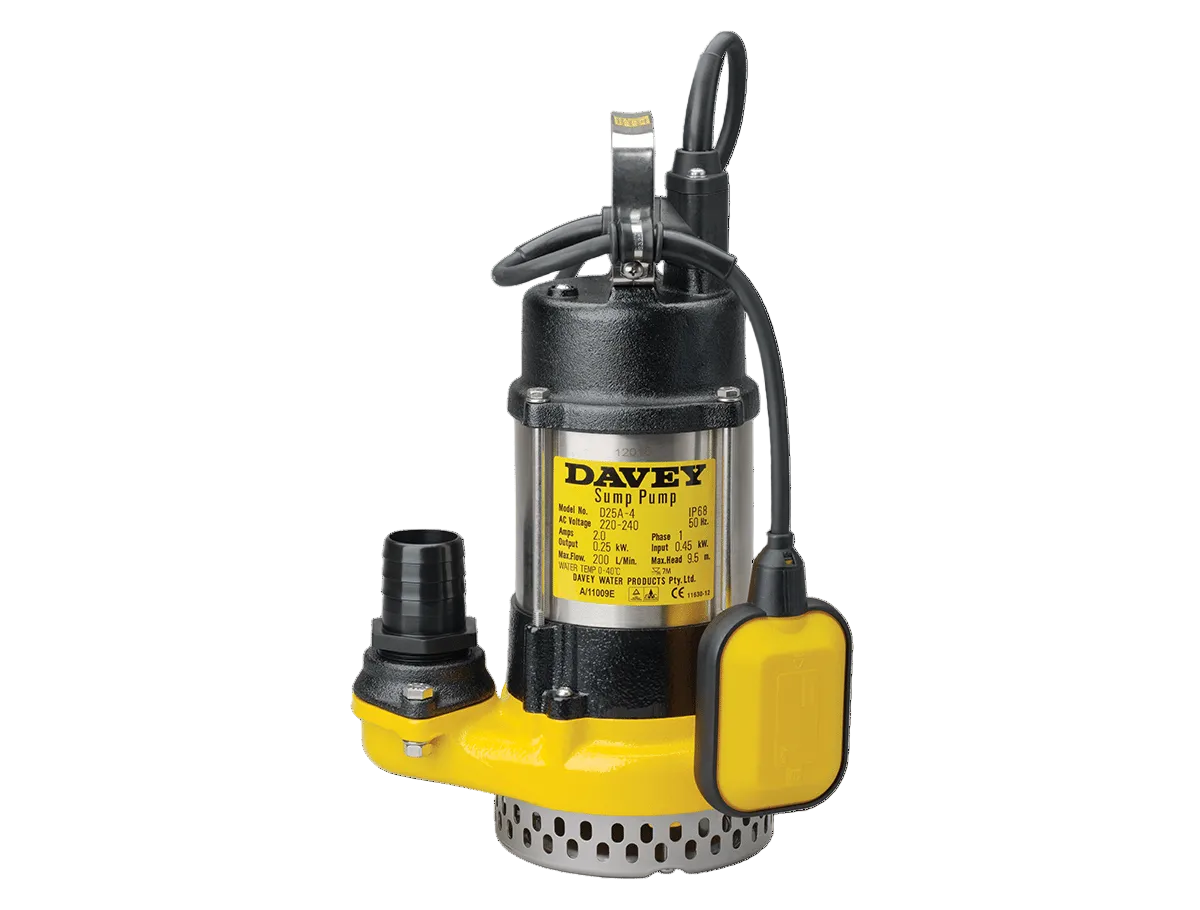

DAVEY D15VA SUBMERSIBLE GREY WATER DRAINAGE PUMP (240LPM/7.5M)

The Davey D15VA submersible drainage pump is a compact and reliable solution designed for grey water pumping, sump emptying, water transfer and light waste handling applications. Built with a semi-vortex open impeller design, the pump is capable of handling soft solids in suspension while reducing the risk of blockage. The corrosion-resistant stainless steel motor shell and durable internal components ensure long service life in demanding environments such as pits, tanks and drainage systems.

FEATURES

• Semi vortex open impeller centrifugal design allows pumping of soft solids in suspension with reduced blockage risk

• Recirculation port keeps solids agitated in sump improving pumping performance

• Double mechanical shaft seal in oil bath with silicon carbide and ceramic seal surfaces for long service life

• Sand slinger lip seal provides additional motor protection

• Corrosion resistant 304 stainless steel motor shell shaft and fasteners

• Automatic resetting thermal overload protection prevents motor damage

• HO7RN-F oil resistant power lead with 3 pin plug for easy installation

• Compact lightweight construction suitable for residential and light commercial use

APPLICATIONS

• Grey water pumping

• Sump emptying and drainage pits

• Septic effluent disposal

• Water transfer

• Light slurries and factory waste pumping

SPECIFICATIONS

• Model D15VA

• Motor Output 150W

• Power Supply 220–240V single phase 50Hz

• Start Current 9.0A

• Run Current 1.5A

• Maximum Flow 240 L/min

• Maximum Head 7.5m

• Maximum Submergence 12m

• Maximum Operating Temperature 50°C

• Maximum Soft Solids 20mm

• Outlet Size 1¼" BSP Female

• Net Weight 5.0kg

• Lead Length 10m

• Suitable Fluids Clean or grey water of neutral pH containing up to 10% small soft solids or 1% fine solids

MATERIALS

• Impeller Polycarbonate

• Pump Shaft Stainless Steel

• Motor Shell Stainless Steel

• Mechanical Seal Silicon Carbide Ceramic

• Elastomers Nitrile Rubber
